• Switch harness assembly and low voltage wiring.
• Ignition spark plug and lead assemblies. These are fastened to the burner bases by retaining clips, located on
the underside of the burner base.
• Ignition pack. For models without a separate ignition switch this is clipped to the base or attached with
double sided adhesive. For models with a separate ignition switch this is fastened to the hob with a retaining
nut. Observe the active & neutral are correctly connected in accordance with the markings on the ignition
pack when replacing this unit.

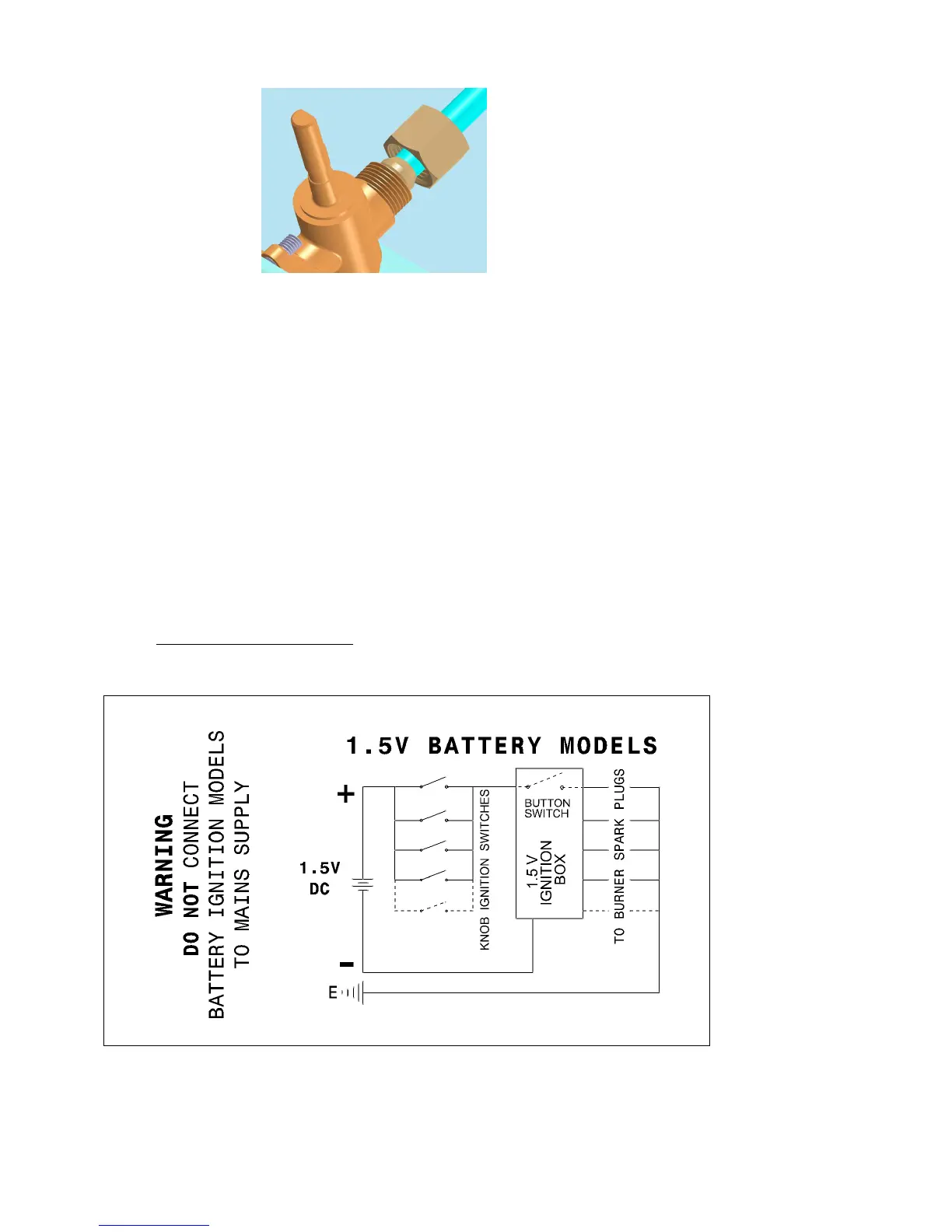

6. WIRING DIAGRAM
