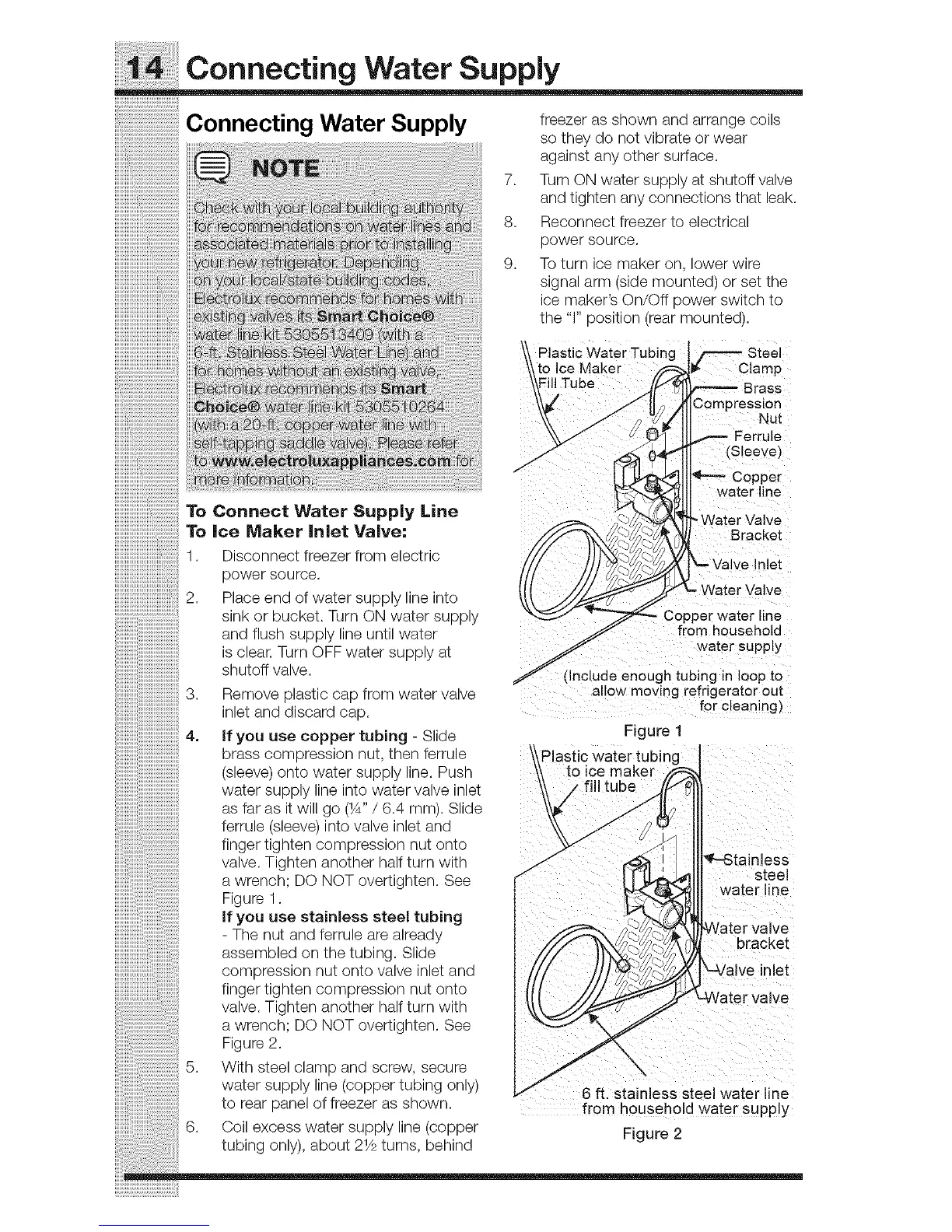

To Connect Water Supply Line
To ice Maker inlet Valve;
7,
8.
9.
freezer as shown and arrange coils
so they do not vibrate or wear
against any other surface.
Turn ON water supply at shutoff valve
and tighten any connections that leak.
Reconnect freezer to electrical
power source.
To turn ice maker on, lower wire
signal arm (side mounted) or set the
ice maker's On/Off power switch to
the "l" position (rear mounted).
_lastic Water Tubing
Ice Maker Clamp
Compression
Nut
_le
(Sleeve)
water line
1,
2.
Disconnect freezer from electric
power source.
Place end of water supply line into
sink or bucket. Turn ON water supply
and flush supply line until water
is clear. Turn OFF water supply at
shutoff valve.
3. Remove plastic cap from water valve
inlet and discard cap.
4. If you use copper tubing - Slide
brass compression nut, then ferrule
(sleeve) onto water supply line. Push
water supply line into water valve inlet
as far as it will go (1A"/ 6.4 mm). Slide
ferrule (sleeve) into valve inlet and
finger tighten compression nut onto
valve. Tighten another half turn with
a wrench; DO NOT overtighten. See
Figure 1.
If you use stainless steel tubing
- The nut and ferrule are already
assembled on the tubing. Slide
compression nut onto valve inlet and
finger tighten compression nut onto
valve. Tighten another half turn with
a wrench; DO NOT overtighten. See
Figure 2.
5. With steel clamp and screw, secure
water supply line (copper tubing only)
to rear panel of freezer as shown.
6. Coil excess water supply line (copper
tubing only), about 2V_turns, behind
Water Valve
Bracket
Inlet
Water Valve
Copper water line
from household
water supply
Include enough tubing in loop to
allow moving refrigerator out
for cleaning)
Figure 1
\\Plastic water tubing
\\ to ice maker
,
?
'i
i
._ _-Stainless
steel
water line
_b Water valve
/// J}'X'_'_/_? ;_ bracket
/// III _ _',_ ;_
__ X-Valve inlet
q/Vater valve
6 ft. stainless steel water line
from household water supply
Figure 2
