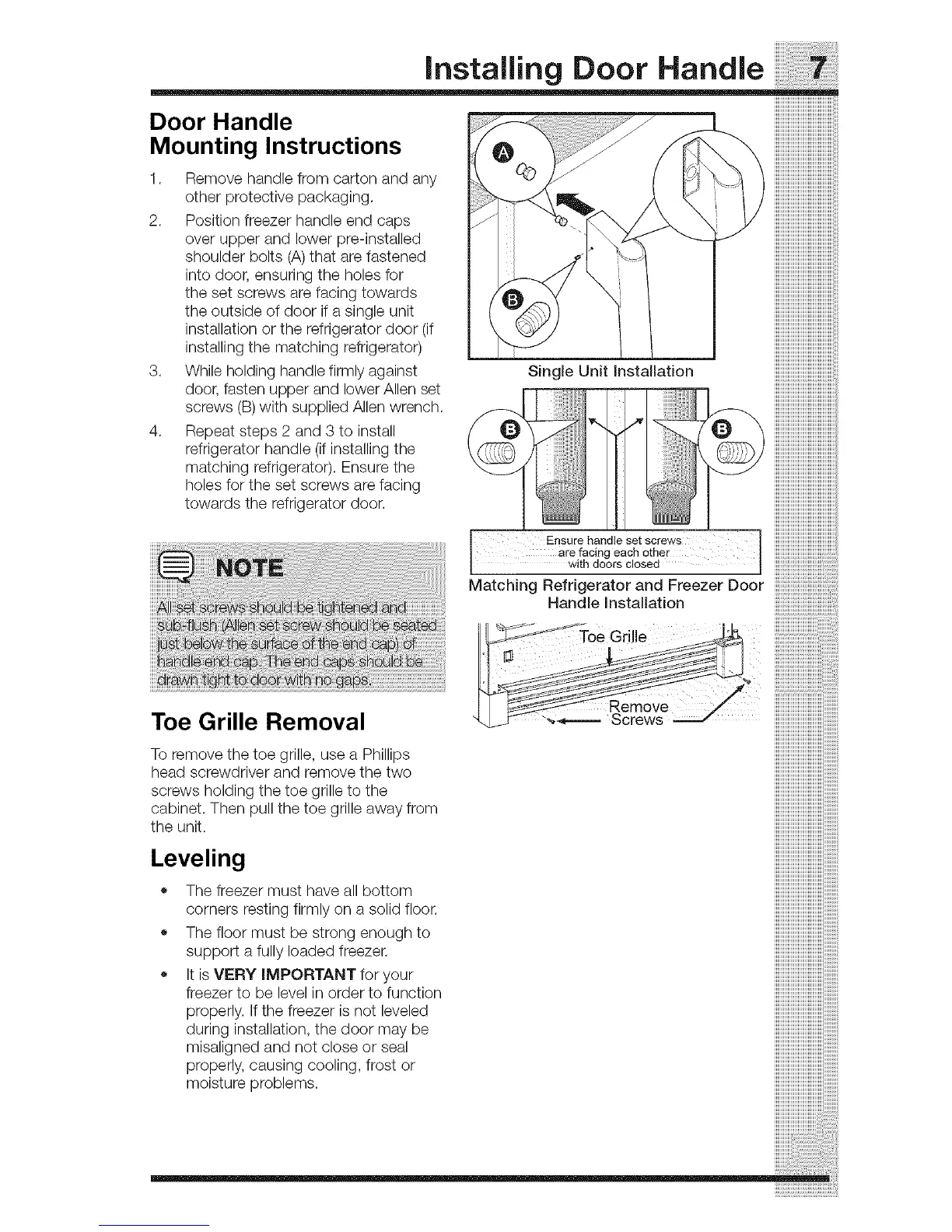

Installing Door Handle
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
Door Handle iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
Mounting Instructions iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
1. Remove handle from carton and any
other protective packaging.
2. Position freezer handle end caps
over upper and lower pre-installed
shoulder bolts (A)that are fastened
into door, ensuring the holes for
the set screws are facing towards
the outside of door if a single unit
installation or the refrigerator door (if
installing the matching refrigerator)
3. While holding handle firmly against
door, fasten upper and lower Allen set
screws (B)with supplied Allen wrench.
4. Repeat steps 2 and 3 to install
refrigerator handle (if installing the
matching refrigerator). Ensure the
holes for the set screws are facing
towards the refrigerator door.
Single Unit Installation
with doors closed
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
Toe Grille Removal
To remove the toe grille, use a Phillips
head screwdriver and remove the two
screws holding the toe grille to the
cabinet. Then pull the toe grille away from
the unit.
Leveling
• The freezer must have all bottom
corners resting firmly on a solid floor.
The floor must be strong enough to
support a fully loaded freezer.
It is VERY iMPORTANT for your
freezer to be level in order to function
properly. If the freezer is not leveled
during installation, the door may be
misaligned and not close or seal
properly, causing cooling, frost or
moisture problems.
Matching Refrigerator and Freezer Door
Handle Installation
Toe Grille
Remove
:'-,_=--=-= Screws
To Next Page
