Installation Requirements

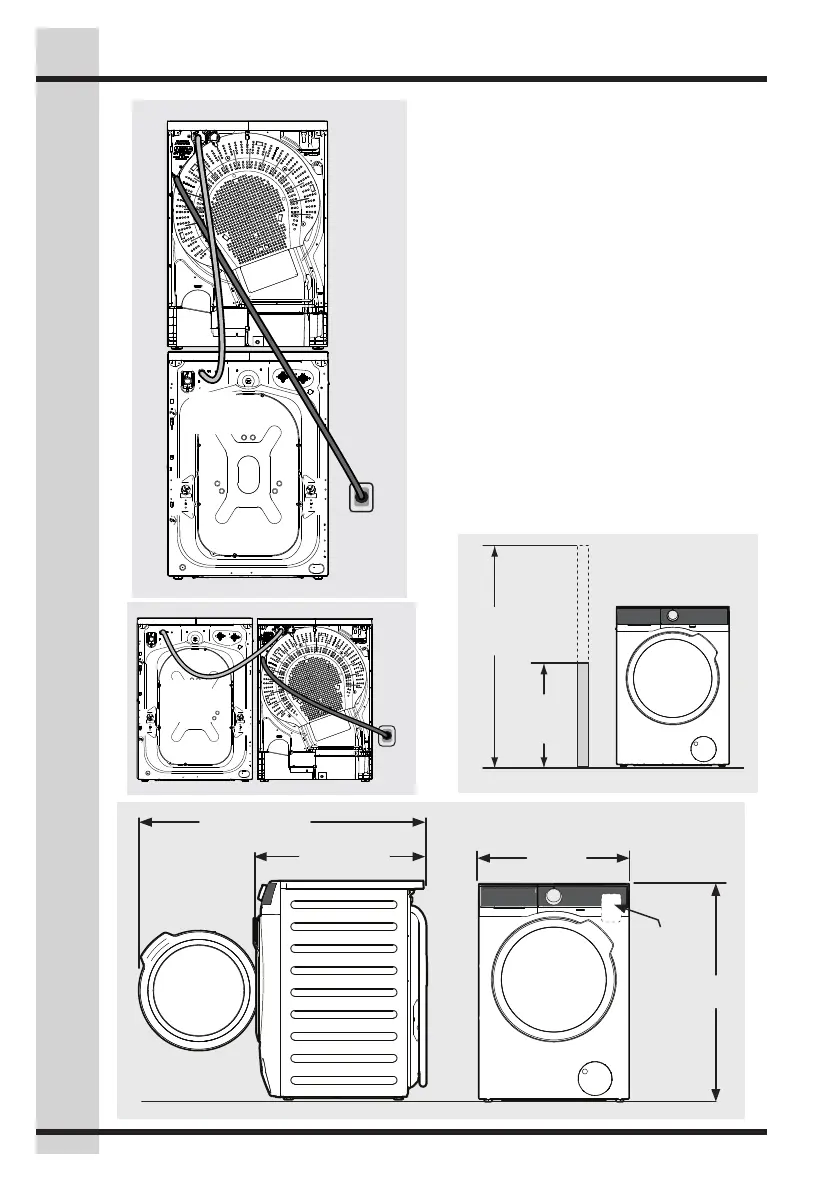

Washer dimensions
56.5"
(144cm)
max.
24"
(61cm)
min.
Drain system requirements
1. Drain capable of eliminating 6 gals (22.5 L)
per minute.
2. A standpipe diameter of 1-1/4 in. (3.18 cm)
minimum.
3. The standpipe height above the floor should
be:
Minimum height: 24 in. (61 cm)
Maximum height: 56.5 in. (144 cm)
24" (61 cm)
43" (109 cm)
33.5"
(85 cm)
24"
(60.5 cm)
to clear open door
oor line
freestanding washer
on oor
to clear front of closed door
power
cord on
rear of
unit
Water supply requirements
Hot and cold water faucets MUST be installed
within hose length of your washer’s water
inlet. The faucets MUST be 3/4 inch (1.9 cm)
with threading for laundry hose connection.
Water pressure MUST be between 10 and
110 psi. Pressure difference between hot and
cold cannot be more than 10 psi. Your water
department can advise you of your water
pressure.
Washer
Wall
Outlet
Dryer
Washer
Wall
Outlet
Dryer
Power Receptacle
Dryer
Power
Cord
Washer
Power
Cord
Dryer
Power
Cord
Washer
Power
Cord
