Ha
Hb
8 mm

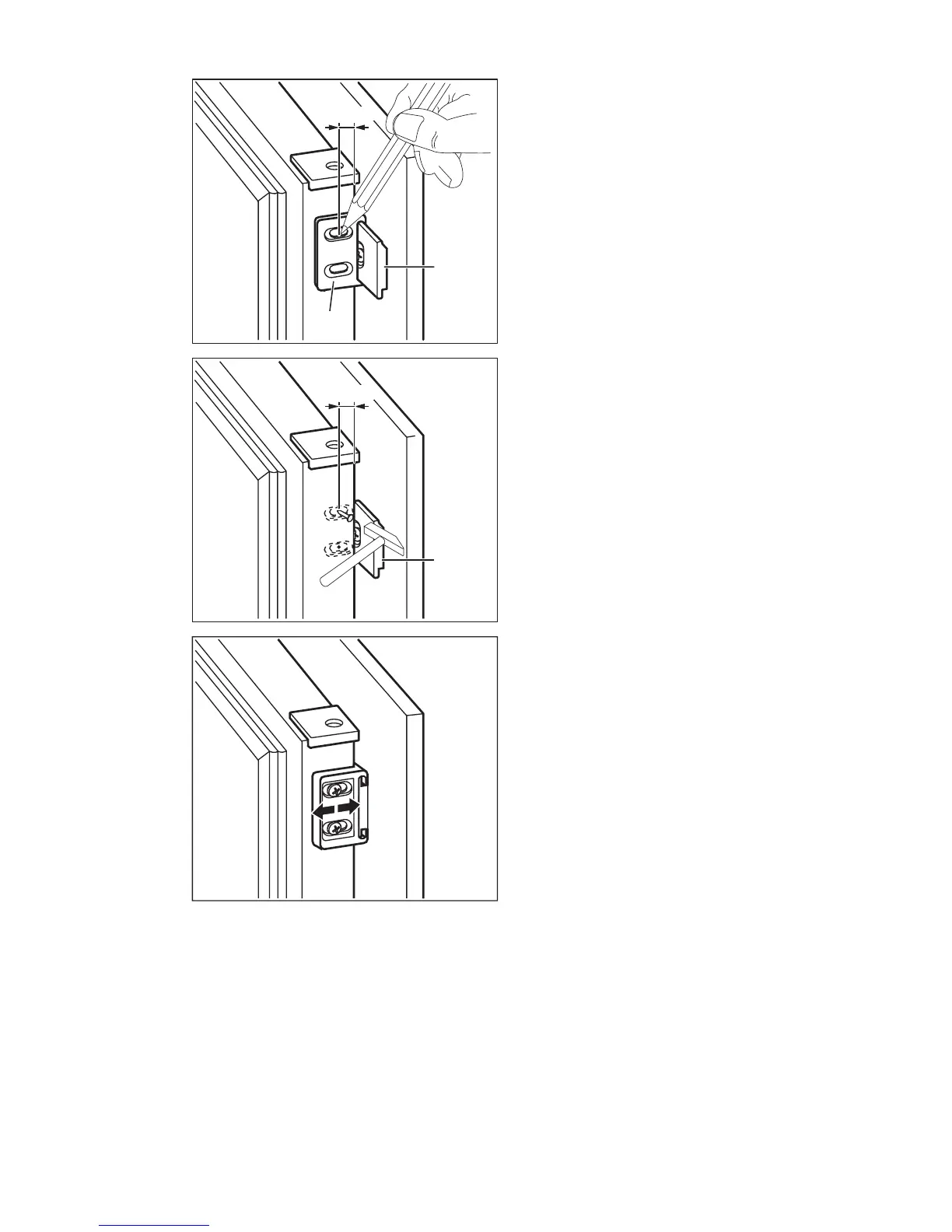

Open the appliance door and the kitchen
furniture door at an angle of 90°.
Insert the small square (Hb) into guide (Ha).
Put together the appliance door and the
furniture door and mark the holes.
Ha
K
8 mm
Remove the brackets and mark a distance
of 8 mm from the outer edge of the door
where the nail must be fitted (K).
Hb
Place the small square on the guide again
and fix it with the screws supplied.
Align the kitchen furniture door and the ap-
pliance door by adjusting the part (Hb).
22
www.electrolux.com
