22
Under no circumstances should the door
assembly be detached from the product for
cleaning. Please refer to the cleaning
instructions.

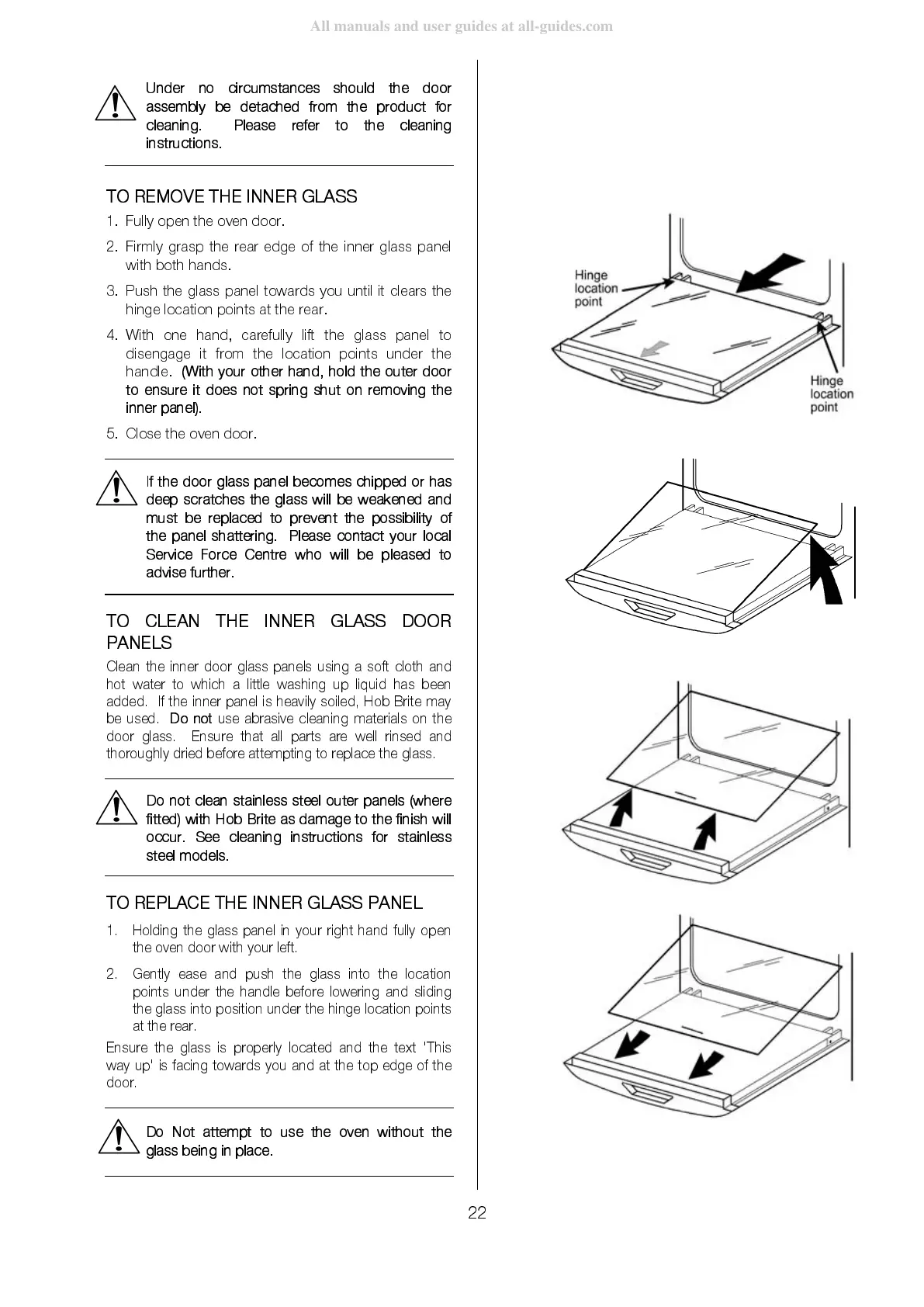

TO REMOVE TH E IN N ER GL AS S
1. Fully open the oven door.
2. Firmly grasp the rear edge of the inner glass panel
with both hands.
3. Push the glass panel towards you until it clears the
hinge location points at the rear.
4. With one hand, carefully lift the glass panel to
disengage it from the location points under the
handle.
(With your other hand, hold the outer door
to ensure it does not spring shut on removing the
inner pa nel).
5. Close the oven door.
If the door glass panel becomes chipped or has
deep scratches the glass will be weakened and
must be replaced to prevent the possibility of
the panel shattering. Please contact your local
Service Force Centre who will be pleased to
advise further.
TO CLEAN THE INNER GLASS DOOR
PANELS
Clean the inner door glass panels using a soft cloth and
hot water to which a little washing up liquid has been
added. If the inner panel is heavily soiled, Hob Brite may
be used.
Do not
use abrasive cleaning materials on the
door glass. Ensure that all parts are well rinsed and
thoroughly dried before attem p ting to replace the glass.
Do not clean stainless steel outer panels (where
fitted) with Hob Brite as damage to the finish will
occur. See cleaning instructions for stainless
steel models.
TO REPL AC E T H E I NN ER GL AS S PANE L
1
. Holding the glass panel in your right hand fully open
the oven door with your left.
2. Gently ease and push the glass into the location
points under the handle before lowering and sliding
the glass into position under the hinge location points
at the rear.
Ensure the glass is properly located and the text 'This
way up' is facing towards you and at the top edge of the
door.
Do Not
attempt to use the oven without the
glass being in pl ace.
