Electrolux ERF501L - ERF501 L CONNECTORS; Connector Identification and Functionality

Q&CI - Technical Support

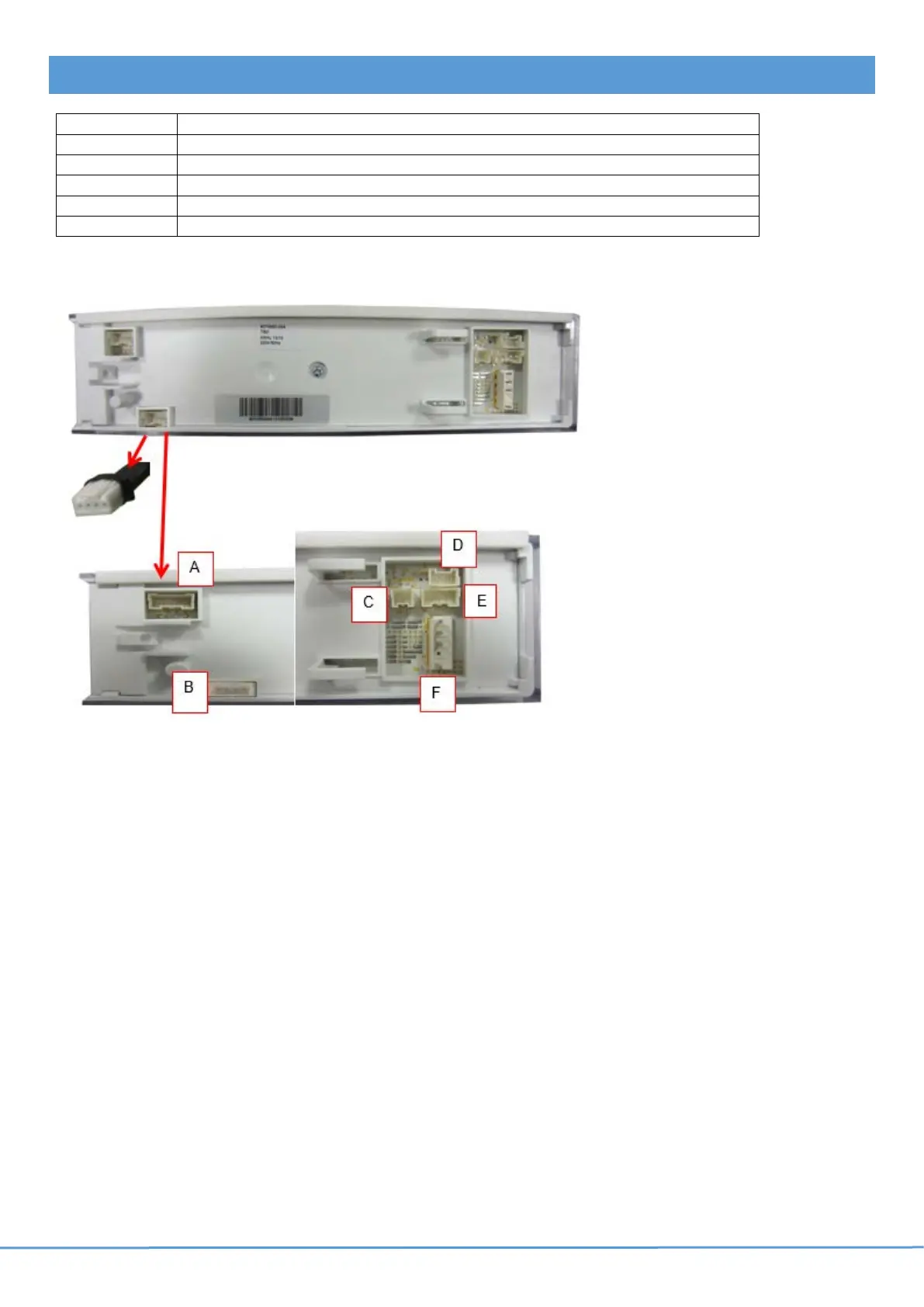

ERF501L CONNECTORS
A
Sidekick 4-pol
B
User interface
C
Fan DC: GND, +12 V DC
D
Door switch
E
NTC-sensor, NTC Fridge, +5V, NTC Evaporator, +5V
F
Compressor and defrost heater, N, L, Compressor
