Electrolux ERF501L - Detailed Connector Pin Assignments

Q&CI - Technical Support

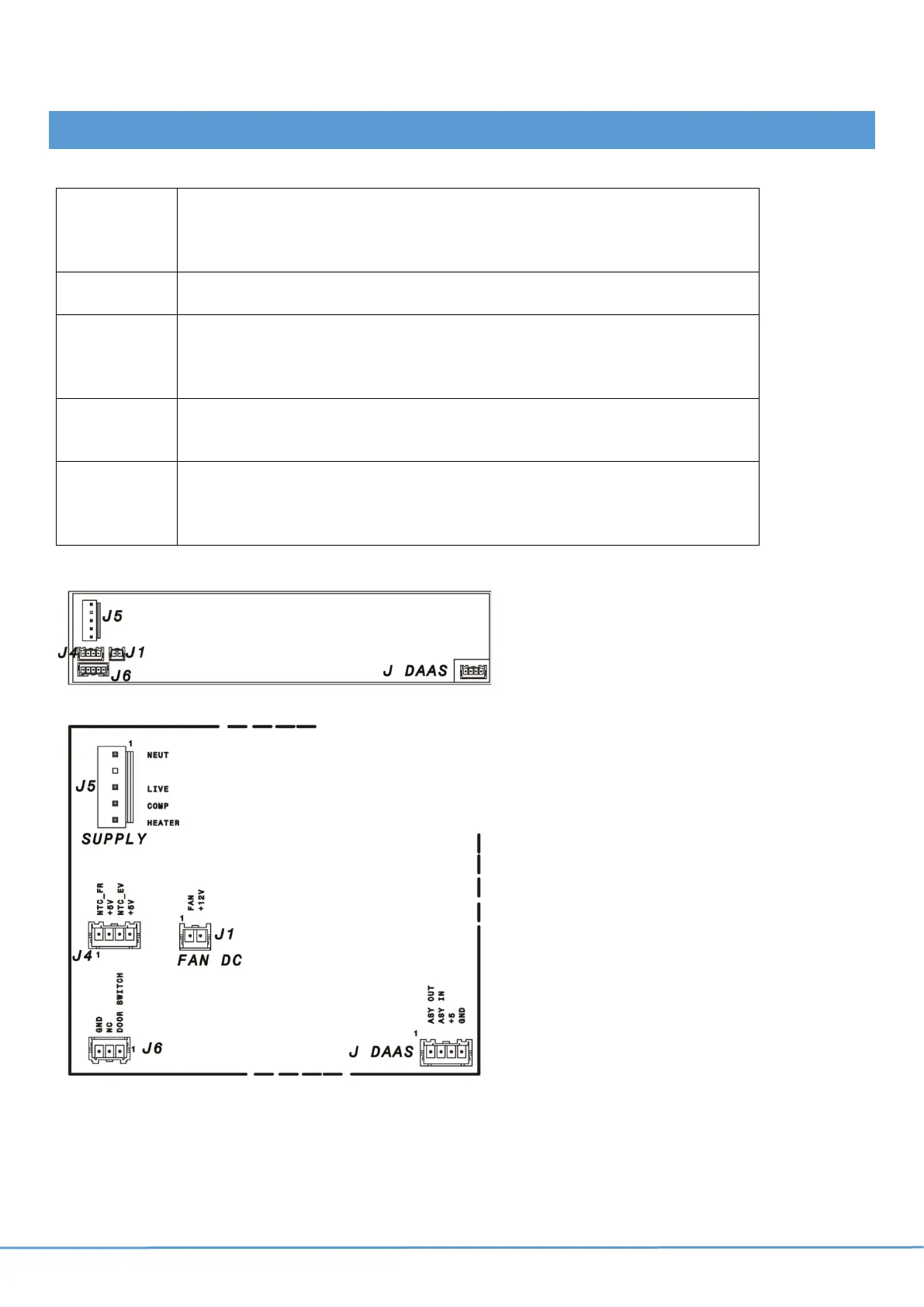

ERF501L CONNECTORS
J5 SUPPLY
• Pin 1 220 N
• Pin 3 220 L
• Pin 4 Compressor
• Pin 5 Heating element
J1 FAN DC
• Pin 1 Fan
• Pin 2 +12 V DC
J4
• Pin 1 NTC Refrigerator
• Pin 2 +5V
• Pin 3 NTC Evaporator
• Pin 4 +5V
J6
• Pin 1 GND
• Pin 2 NC
• Pin 3 Door switch
J DAAS
• Pin 1 ASY OUT
• Pin 2 ASY IN
• Pin 3 +5V
• Pin 4 GND
