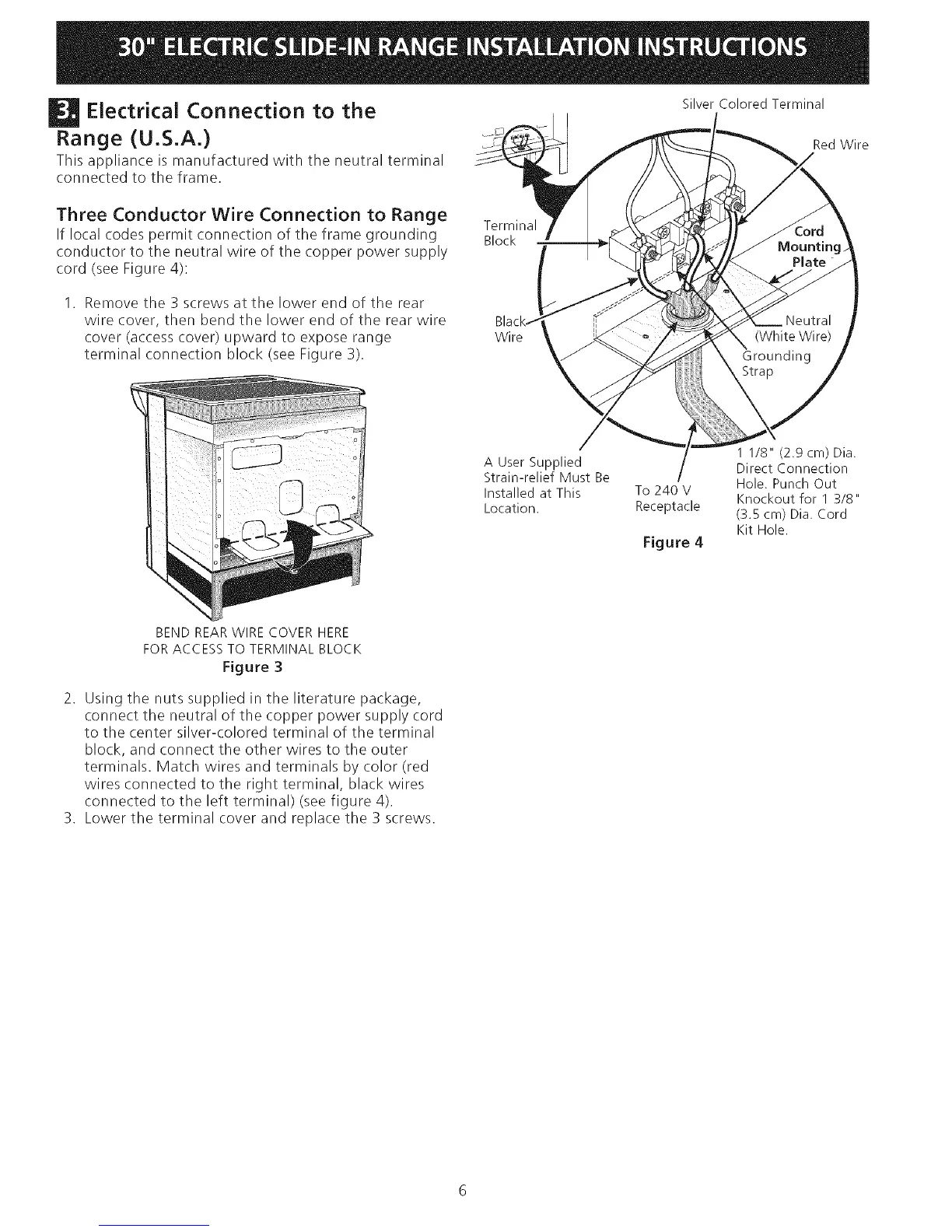

Electrical Connection to the SilverColoredTerminal
Range (U.S.A.) RedWire
This appliance is manufactured with the neutral terminal
connected to the frame.
Three Conductor Wire Connection to Range
If local codes permit connection of the frame grounding
conductor to the neutral wire of the copper power supply
cord (see Figure 4):
Terminal
Block
Mountinc
1. Remove the 3 screws at the lower end of the rear
wire cover, then bend the lower end of the rear wire
cover (access cover) upward to expose range
terminal connection block (see Figure 3).
Wire
A User Supplied
Strain-relief Must Be
Installed at This
Location.
To 240 V
Receptacle
Figure 4
1 1/8" (2.9 cm) Dia.
Direct Connection
Hole. Punch Out
Knockout for 1 3/8"
(3.5 cm) Dia. Cord
Kit Hole.
BEND REAR WIRE COVER HERE
FOR ACCESS TO TERMINAL BLOCK
Figure 3
2. Using the nuts supplied in the literature package,
connect the neutral of the copper power supply cord
to the center silver-colored terminal of the terminal
block, and connect the other wires to the outer
terminals. Match wires and terminals by color (red
wires connected to the right terminal, black wires
connected to the left terminal) (see figure 4).
3. Lower the terminal cover and replace the 3 screws.
