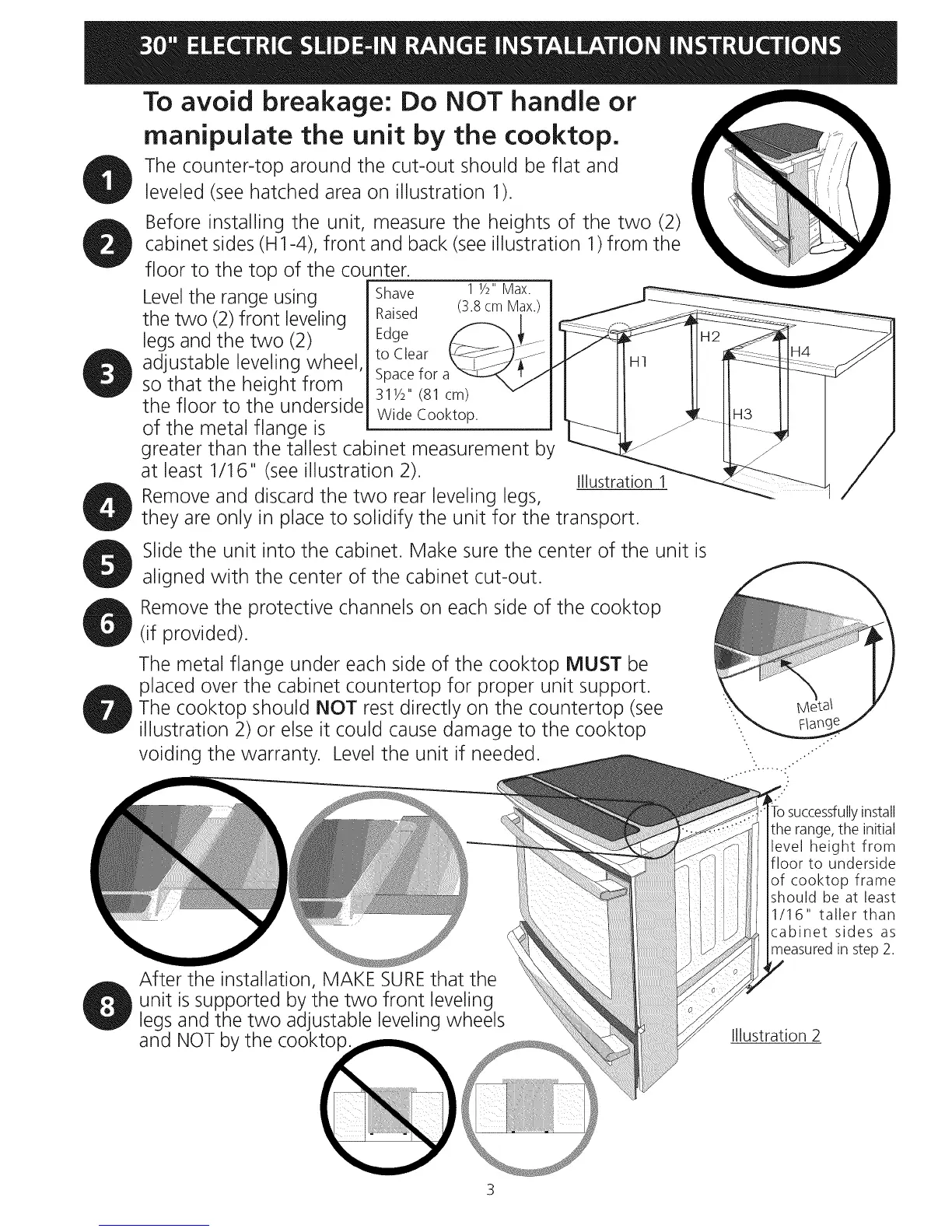

To avoid breakage: Do NOT handle or
manipulate the unit by the cooktop.
The counter-top around the cut-out should be flat and
leveled (see hatched area on illustration 1).
Before installing the unit,
cabinet sides (H 1-4), front
floor to the top of the cou
Level the range using
the two (2) front leveling
legs and the two (2)
adjustable leveling wheel,
so that the height from
the floor to the underside
of the metal flange is
measure the heights of the two (2)
and back (see illustration 1) from the
1 1/2"Max.
(3.8cm Max.)
nter.
Shave
Raised
Edge
to Clear
Space for a
311/2" (81 cm)
Wide Cooktop.
greater than the tallest cabinet measurement by
at least 1/16" (see illustration 2).
Remove and discard the two rear leveling legs,
they are only in place to solidify the unit for the transport.
Illustration 1
Slide the unit into the cabinet. Make sure the center of the unit is
aligned with the center of the cabinet cut-out.
Remove the protective channels on each side of the cooktop
(if provided).
The metal flange under each side of the cooktop MUST be
placed over the cabinet countertop for proper unit support.
The cooktop should NOT rest directly on the countertop (see
illustration 2) or else it could cause damage to the cooktop
voiding the warranty. Level the unit if needed.
After the installation, MAKE SUREthat the
unit is supported by the two front leveling
legs and the two adjustable leveling wheels
and NOT by the cooktop
To successfullyinstall
the range, the initial
level height from
floor to underside
of cooktop frame
should be at least
1/16" taller than
cabinet sides as
measured in step 2.
Illustration 2
3
