Electrolux EWM09312 - E62 Overheating During Washing

Technical Support - A.D.L. 51/70 599 74 23-12 Rev.00
E62

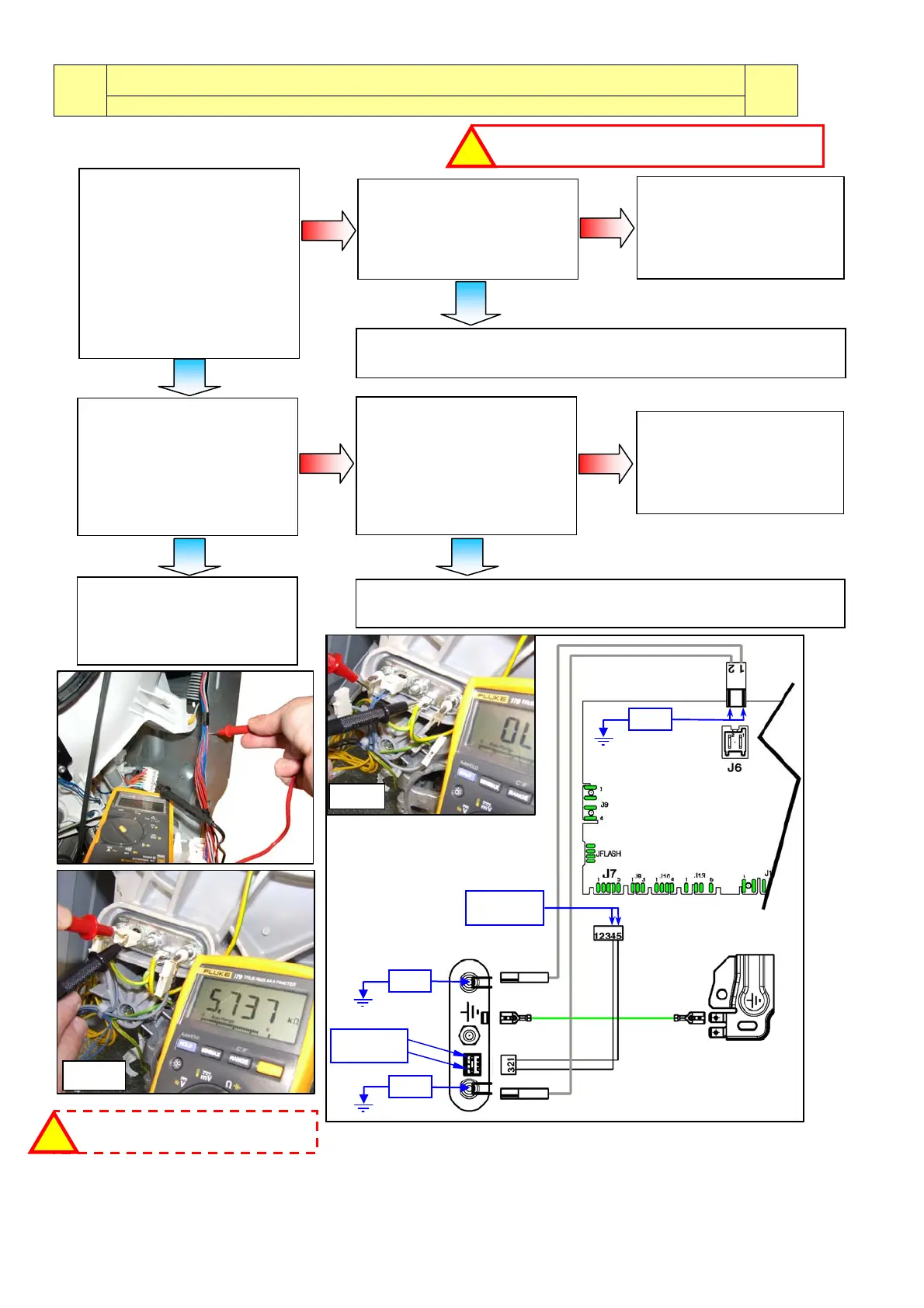

E62: Overheating during washing
E62
The temperature of the NTC probe exceeds 88°C for more than 5 mins.
MAIN CIRCUIT
BOARD
5.7 ÷ 6.3KΩ
(
20°C
)
∞

General earthing
connection
∞

∞

Washing heating element
5.7 ÷ 6.3KΩ
(
20°C
)
Fig. 14
Fig. 15
If there are burns on the circuit board,
see
p
a
g
e 6
8
!
Measure the NTC probe
between terminals J7-4 and
J7-5 of the main circuit
board connector.
Is the value correct?
(between 5.7 and 6.3 KΩ at
20°C
)
Run the diagnostic cycle
and fill with water up to the
door level to make sure the
heating element is
completely submerged.
Measure between the wiring
connector J6-1/J6-2 and the
appliance body.
(See fig 6)
Is the circuit o
p
en?
Detach the connector and
measure between the heating
element and the earth
contact. - (see Fig. 15)-
Is the circuit o
p
en?
Replace the heating
element and repeat the
diagnostic cycle to check
for any further
alarms.
Check/replace the wiring and repeat the diagnostic cycle to check
for any further alarms.
Detach the connector and
measure the value directly
on the NTC probe.
- (see Fig. 14)-
Is the value correct?
(between 5.7 and 6.3 KΩ at
20°C
)
Replace the heating
element and repeat the
diagnostic cycle to check
for any further
alarms.
Replace the circuit board
and repeat the diagnostic
cycle to check for any
further alarms.
Check/replace the wiring and repeat the diagnostic cycle to check
for any further alarms.
N
O
N
O
YES
YES
N
O
NO
Check that all the connectors are correctly inserted
!
Fig. 6
YES YES
