Electrolux EWM09312 - E66 Heating Element Power Relay Faulty

Technical Support - A.D.L. 52/70 599 74 23-12 Rev.00

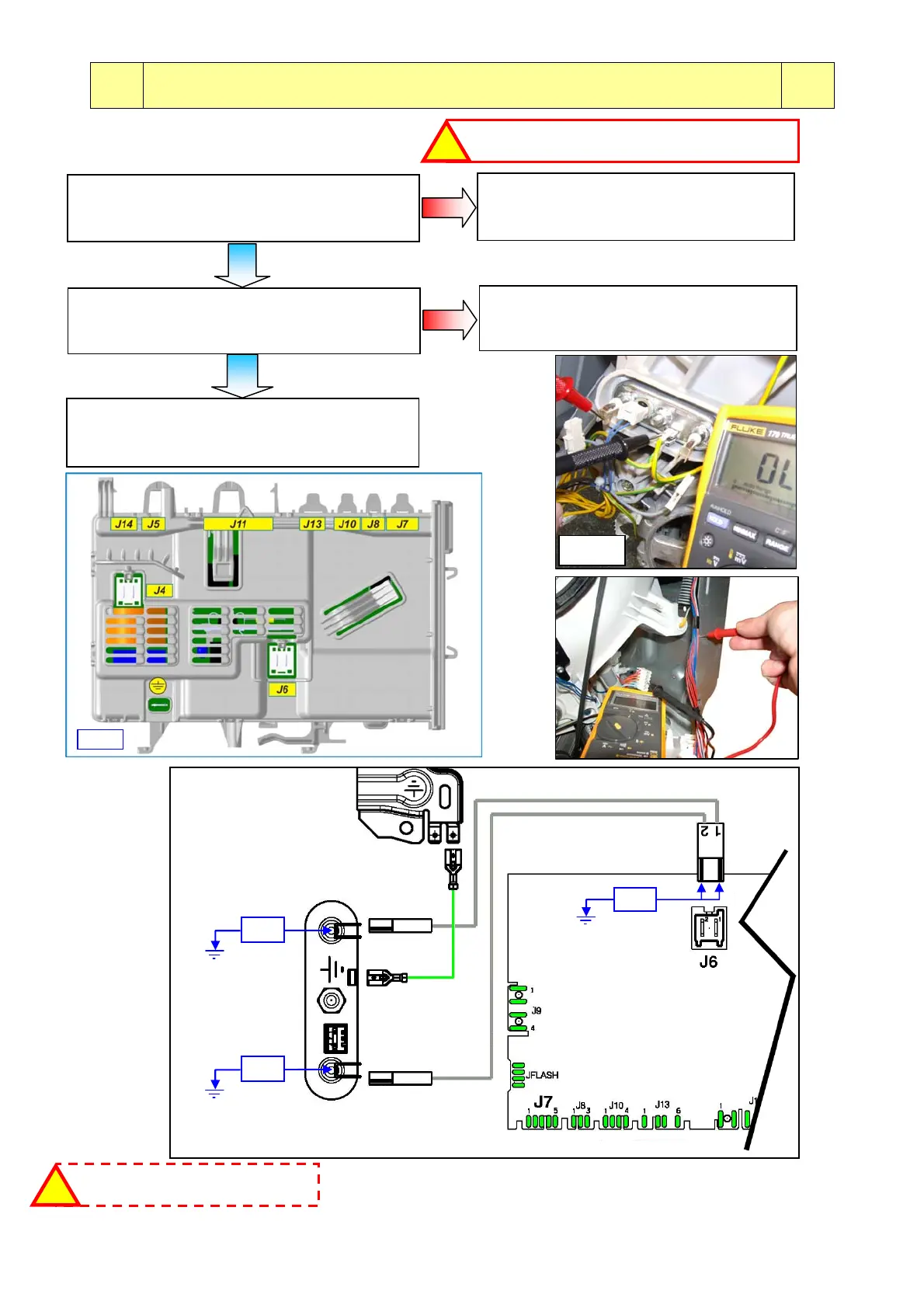

E66 E66: Heating element power supply relay faulty E66
Measure between the connector J6-1/J6-2 of
the main circuit board and the appliance body.
(Fig. 6) Is there any dispersion?
Replace the circuit board and repeat the
diagnostic cycle to check for any further
alarms.
Detach the connector J6 and measure between
the heating element and the earth contact.
- Fi
g
. 15- Is the circuit open?
Replace the heating element and repeat
the diagnostic cycle to check for any
further alarms.
Check/replace the wiring and repeat the
diagnostic cycle to check for any further
alarms.
YES
N
O
YES
N
O
Fig. 15
MAIN CIRCUIT
BOARD
∞

∞

∞

General earthing
connection
Washing heating
element
If there are burns on the circuit board,
see
p
a
g
e 6
8
!
Check that all the connectors are correctly inserted
!
Fig.
Fig. 4
