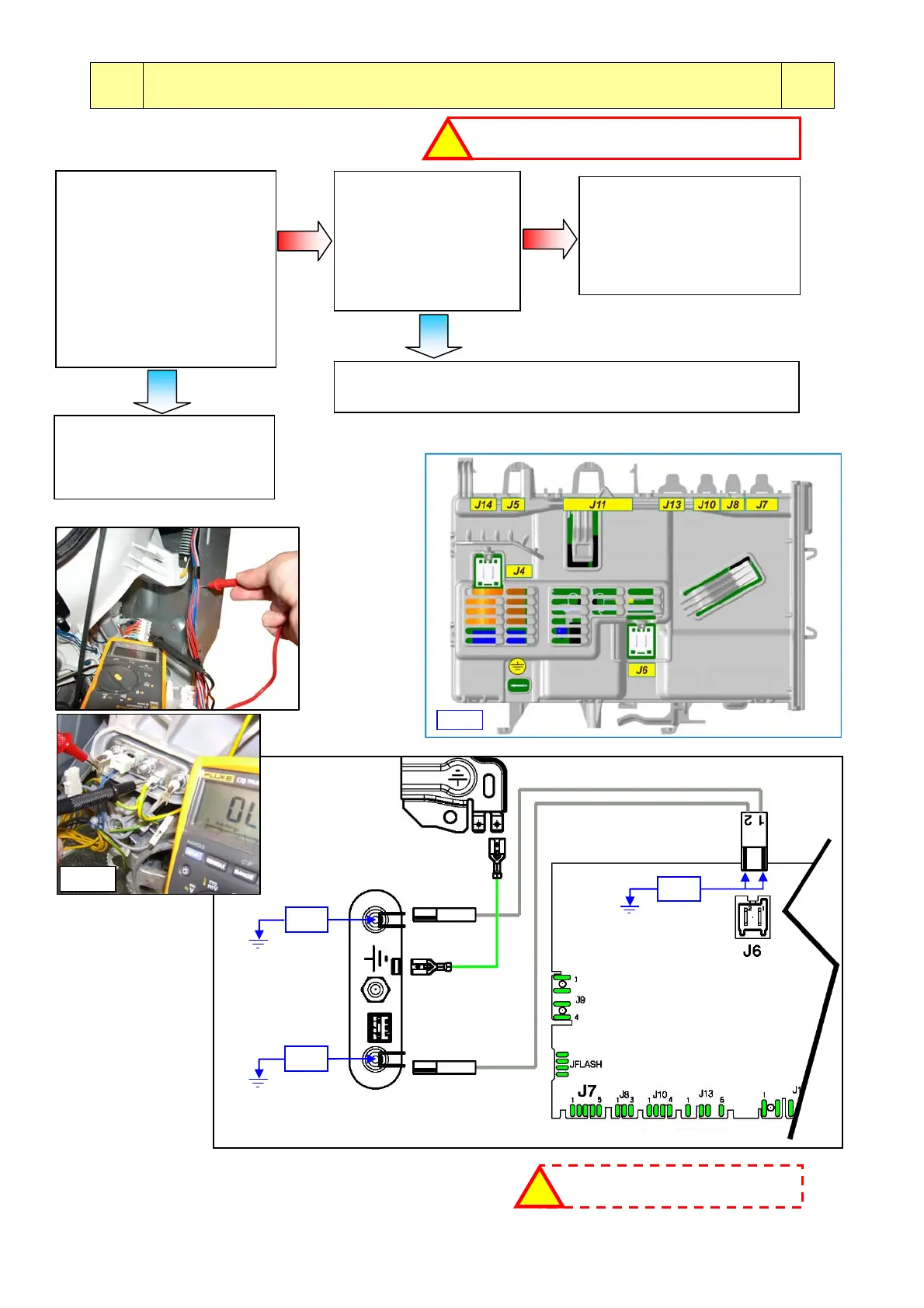

Electrolux EWM09312 - E68 Washing Heating Element Leakage

Technical Support - A.D.L. 53/70 599 74 23-12 Rev.00
Run the diagnostic cycle
and fill with water up to the
door level to make sure the
heating element is
completely submerged.
Measure between the wiring
connector J6-1/J6-2 and the
appliance body.
-(see Fig. 6)-
Is the circuit open?
E68 E68: Washing heating element leakage E68
Detach the connector
and measure between
the heating element
and the earth contact.
- (see Fig. 15)-
Is the circuit
open?
Run phase 8 of the
diagnostic cycle, drain water
from the tub. Replace the
heating element and repeat
the diagnostic cycle to
check for an
y
further alarms.
Check/replace the wiring and repeat the diagnostic cycle to
check for any further alarms.
Replace the main circuit
board and repeat the
diagnostic cycle to check for
an
y
further alarms.
YES
N
O
MAIN CIRCUIT
BOARD
∞

∞

∞

General earthing
connection
Washing heating
element
N
O
YES
Check that all the connectors are correctly inserted
!
If there are burns on the circuit board,
see
p
a
g
e 6
8
!
Fig. 4
Fig.
6
Fig. 15
