Electrolux EWM09312 - E69 Washing Heating Element Damaged

Technical Support - A.D.L. 54/70 599 74 23-12 Rev.00

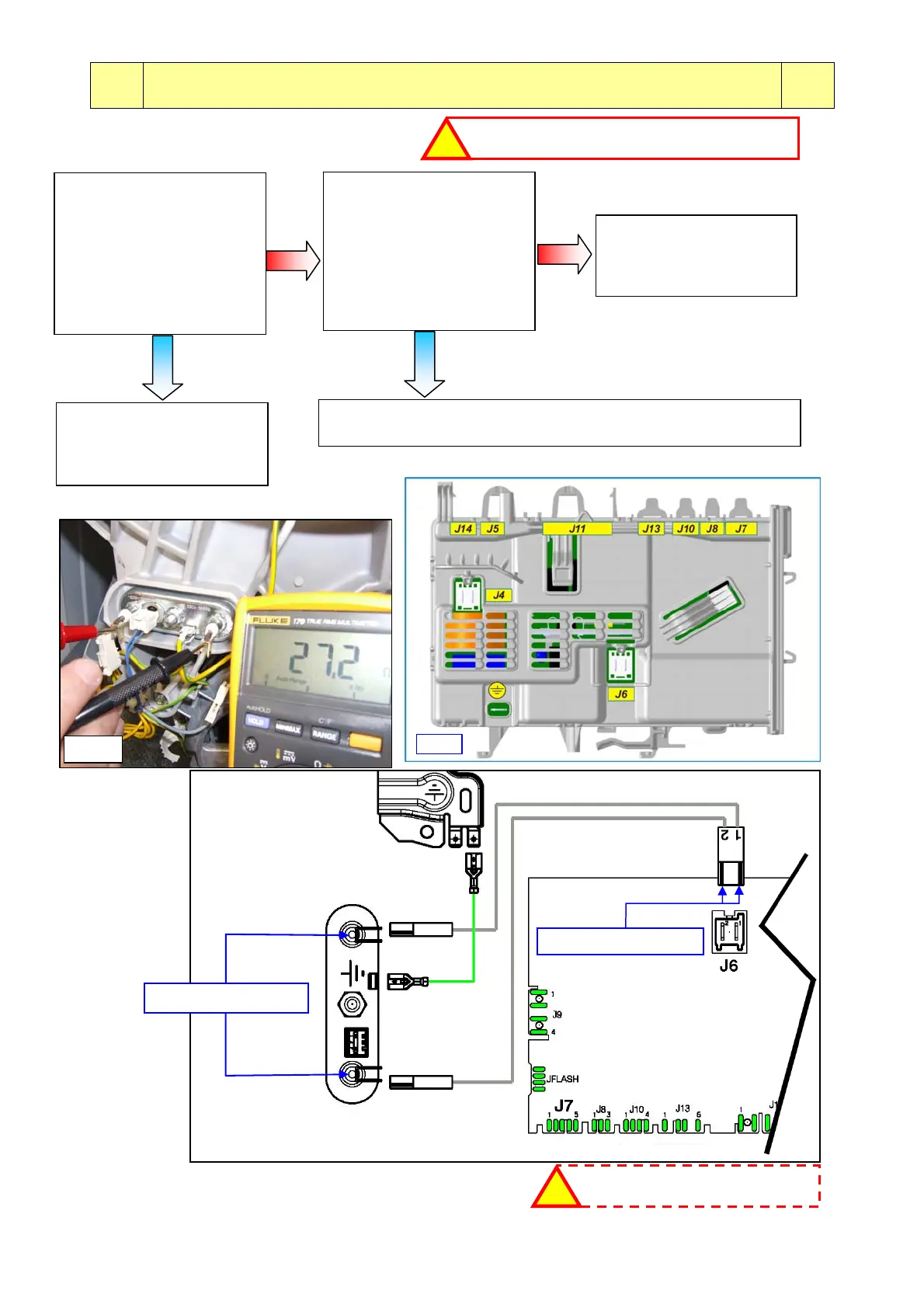

E69 E69: Washing heating element damaged E69
Measure the resistance
value of the heating
element () between
terminals J6-1 ÷ J6-2 of the
wiring connector
-(see Fig. 4)-
Is the value correct?
(28÷31Ω for 230V/1750W)
Replace the circuit board
and repeat the diagnostic
cycle to check for any
further alarms.
Measure the resistance
value directly on the
terminals of the heating
element
(detach the connectors)
-(See fig 13)-
Is the value correct?
(28÷31Ω for 230V/1750W)
Replace the heating
element and repeat the
diagnostic cycle to check
for an
y
further alarms.
Check/replace the wiring and repeat the diagnostic cycle to check
for an
y
further alarms.
Fig.13
NO
Y
E
S
N
O
Y
E
S
MAIN CIRCUIT
BOARD
General earthing
connection
Washing heating
element
28÷31 230V 1750W
28÷31 230V 1750W
Check that all the connectors are correctly inserted
!
If there are burns on the circuit board,
see
p
a
g
e 6
8
!
Fig. 4
