4
30" ELECTRIC RANGE INSTALLATION INSTRUCTIONS
Figure 4
Figure 3
Figure 5
Leg
Leveler
Raise
Lower
Range side

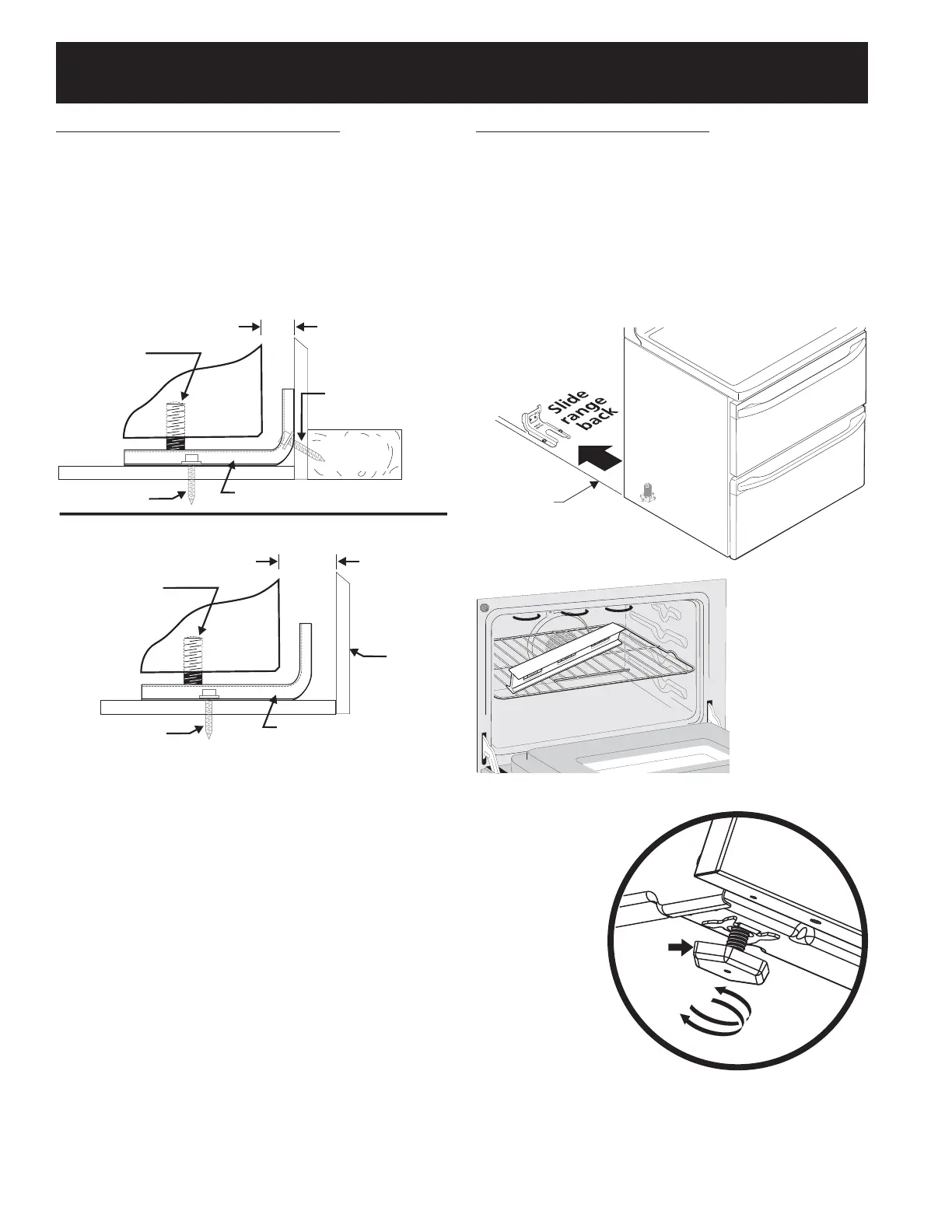

B. Drill Pilot Holes and Fasten Bracket - Drill a 1/8"
pilot hole where screws are to be located. If bracket
is to be mounted to the wall, drill pilot hole at an
approximate 20° downward angle. If bracket is to
be mounted to masonry or ceramic fl oors, drill a
3/16" pilot hole 1-3/4" deep. The screws provided
may be used in wood or concrete material. Use a
5/16" nut-driver or fl at head screwdriver to secure
the bracket in place.
Figure 2
FASTEN BRACKET (WALL OR FLOOR MOUNTING)
FASTEN BRACKET (FLOOR MOUNTING ONLY)
Leveling leg
Wall mount
Floor Mount
Anti-Tip Bracket
Rear of Range
1-1/4” Max.
Wall Plate
Wall
More than
1-1/4”
Leveling leg
Floor Mount
Anti-Tip Bracket
Rear of Range
C. Level and position the range - Slide range to its
fi nal position. Insert the range leveling leg in the anti-
tip bracket. Visually verify if the anti-tip bracket is
engaged. Lower the range by adjusting the 4 leveling
legs alternatively until the range is level. Check if the
range is level by placing a spirit level on the oven
rack. Take 2 readings with the spirit level placed
diagonally; take a reading in one direction and then
in the other direction. Level the range if necessary by
adjusting the leveling legs.
