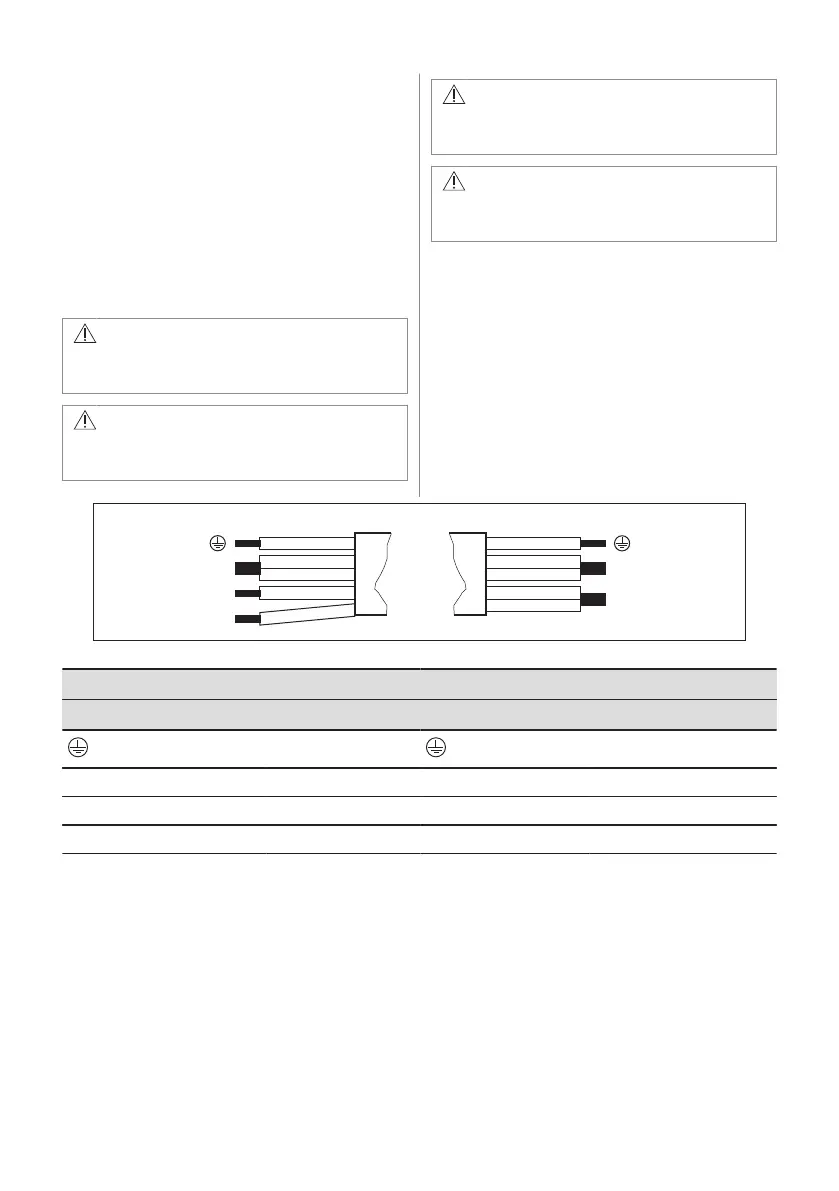

3.5 Connection cable
• The hob is supplied with a connection
cable.
• To replace the damaged mains cable, use
the cable type H05V2V2-F which
withstands a temperature of 90 °C or
higher.
• The single wire must have a diameter of
minimum 1,5 mm².
• Speak to your local Service Centre. The
connection cable may only be replaced by
a qualified electrician.
WARNING!
All electrical connections must be made
by a qualified electrician.
CAUTION!
Connections via contact plugs are
forbidden.
CAUTION!
Do not drill or solder the wire ends. It is
forbidden.
CAUTION!
Do not connect the cable without cable
end sleeve.
One-phase connection
1. Remove the cable end sleeve from black
and brown wires.
2. Remove a part of the insulation of the
brown and black cable ends.
3. Connect the ends of black and brown
cables.
4. Apply a new wire end sleeve on the
shared wire's end (special tool required).
Two-phase connection: 400 V2N~ One-phase connection: 220 - 240 V~
5x1,5 mm² or 4x2,5 mm² 5x1,5 mm² or 3x4 mm²
Green - yellow Green - yellow
N Blue and blue N Blue and blue
L1 Black L Black and brown
L2 Brown
ENGLISH 9
