4. PRODUCT DESCRIPTION

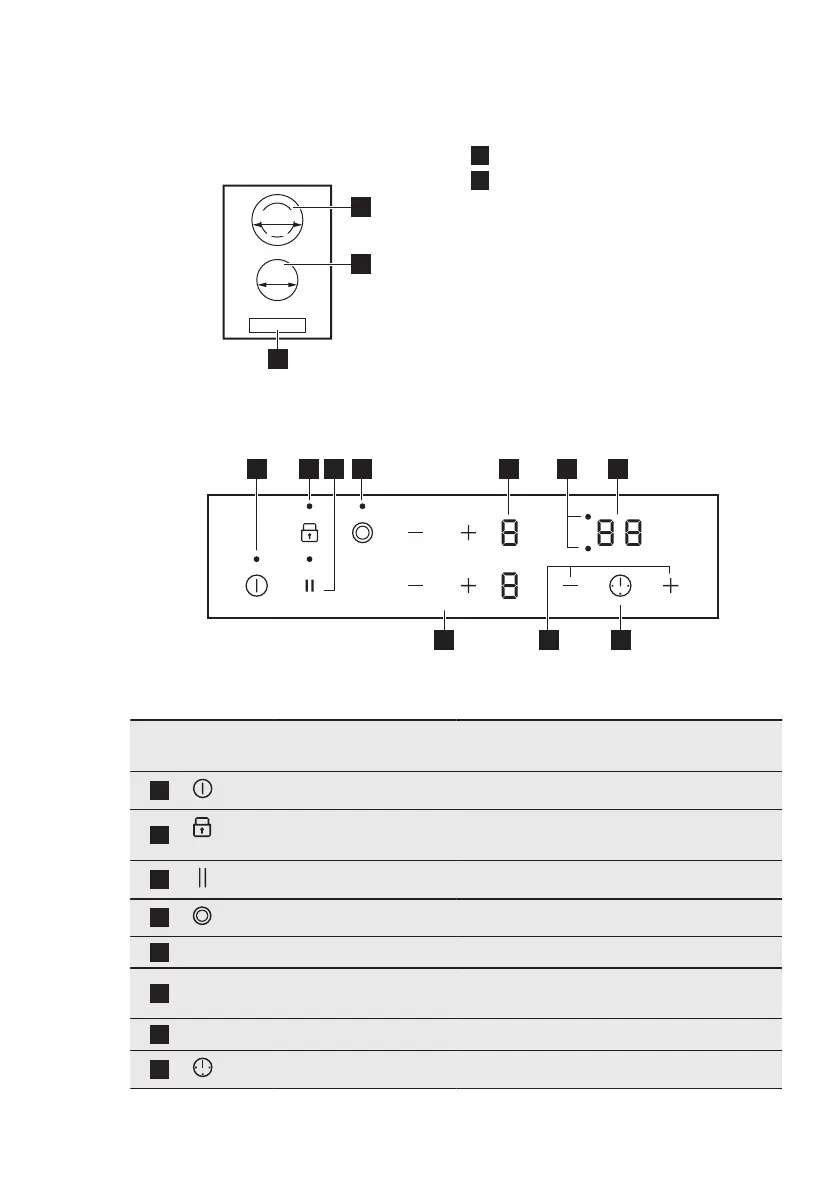

4.1 Cooking surface layout
120/180
mm
120/180
mm
145 mm
1
1
2
1
Cooking zone
2
Control panel
4.2 Control panel layout
1 2 43 5 6 7
8910
Use the sensor fields to operate the appliance. The displays, indicators and sounds
tell which functions operate.
Sensor
field
Function Comment
1
On / Off To activate and deactivate the hob.
2
Lock / Child Safety
Device
To lock / unlock the control panel.
3
Pause To activate and deactivate the function.
4
- To activate and deactivate the outer ring.
5
- Heat setting display To show the heat setting.
6
- Timer indicators of
cooking zones
To show for which zone you set the time.
7
- Timer display To show the time in minutes.
8
- To select the cooking zone.
ENGLISH 9
