Electrolux PLMV169DCE - Noise Filter Test

25
GLMV169DBD
GLMV169DQD
GLMV169DSD
PLMV169DCE
TEST PROCEDURES
PROCEDURE
LETTER
COMPONENT TEST
1. Disconnect the power supply cord, and then remove outer case.
2. Open the door and block it open.
3. Discharge high voltage capacitor.
4. Disconnect the leads to the primary of the power transformer.
5. Using an ohm-meter, check between the terminals as described in the following table:
MEASURING POINT INDICATION OF OHM-METER
Between N and load Open Circuit
Between terminal N and load Short Circuit
Between terminal H and load Short Circuit
If incorrect readings are obtained, replace the noise filter.
6. Reconnect all leads removed from components during testing.
7. Re-install the outer case (cabinet).
8. Reconnect the power supply cord after the outer case is installed.
9. Run the oven and check all functions.

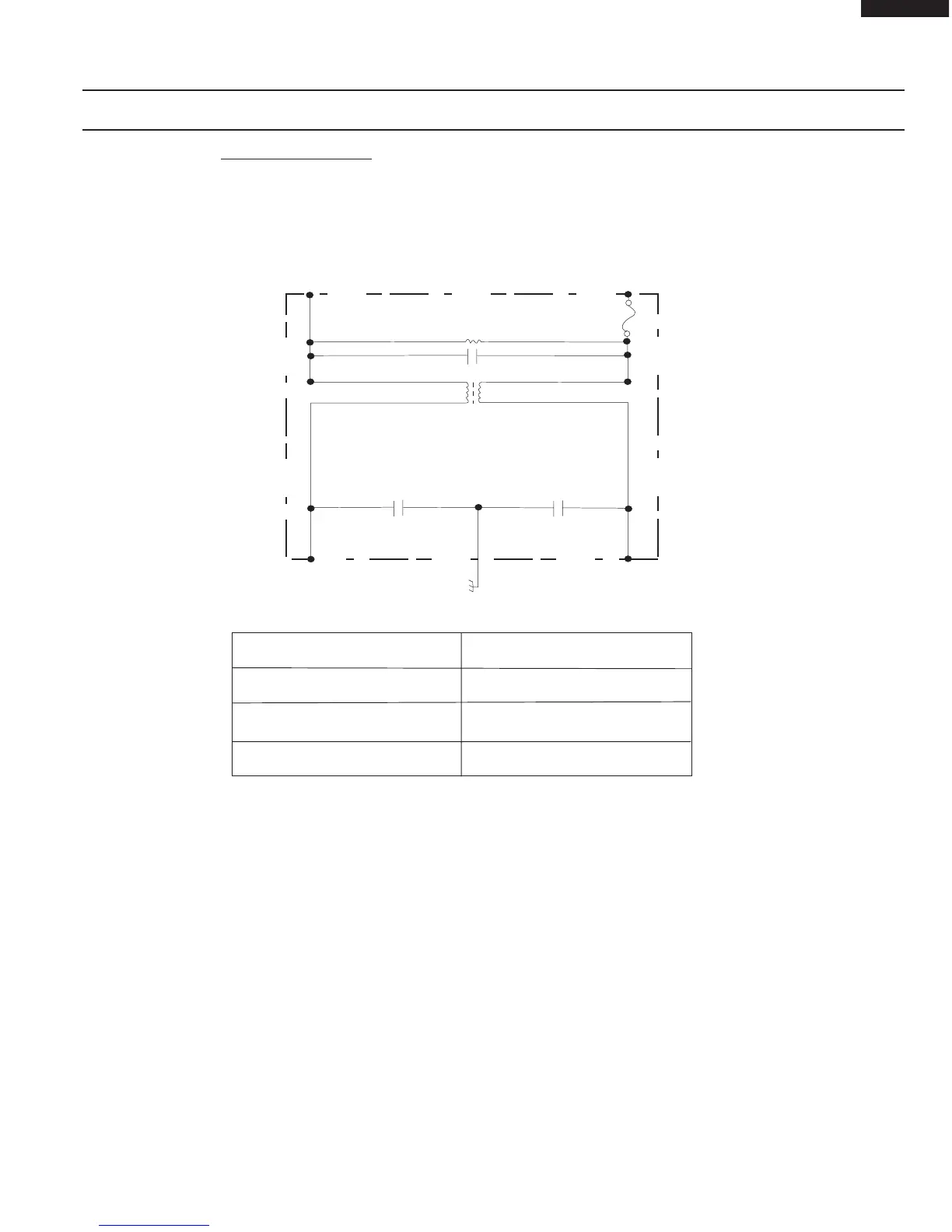

P NOISE FILTER TEST
NOISE FILTER UNIT
NOISE SUPPRESSION COIL
LINE CROSS CAPACITOR
RESISTOR
LINE BYPASS CAPACITOR
LINE BYPASS CAPACITOR
0.0033uF/ 250v
0.0033uF/ 250v
LOAD
LOAD
H
N
MONITOR
FUSE
