R600a NOFROST REFRIGERATORS
15/22

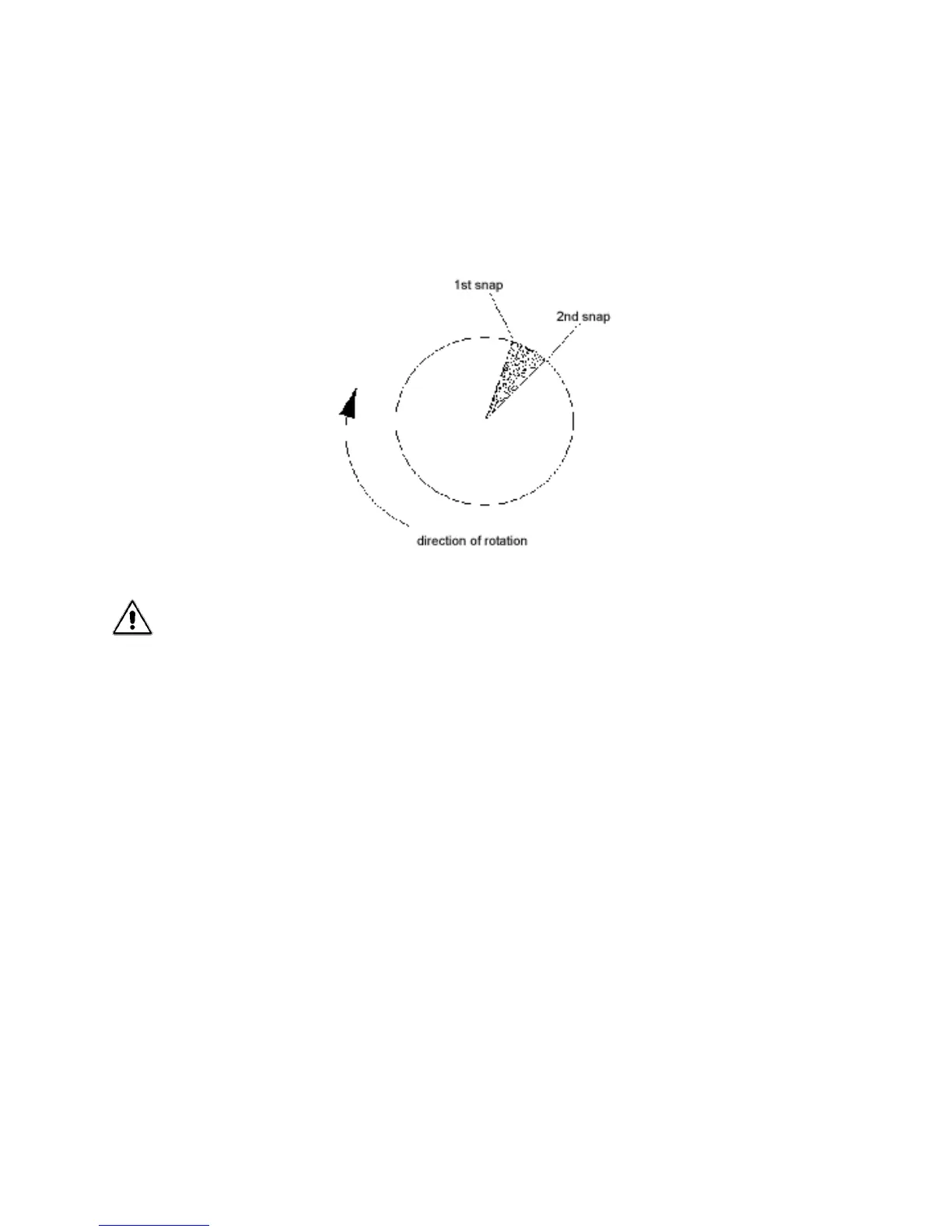

By rotating the timer shaft clockwise with a screwdriver, you can hear two snaps that indicate the contacts
closure. As you can see in the picture (the position of the snaps is merely indicative), between the 1
st
snap and
the 2
nd
snap the run is minimum, between the 2
nd
and the 1
st
snap the run is longer:
Warning :
- In order to test the appliance during “normal” operation, you need to rotate the timer cam till the 2
nd
snap so
as to close 3-4 contact;
- In order to test the appliance during “defrosting” operation, you need to rotate the timer cam till 1
st
snap so
as to close 3-2 contact.
