R600a NOFROST REFRIGERATORS
18/22

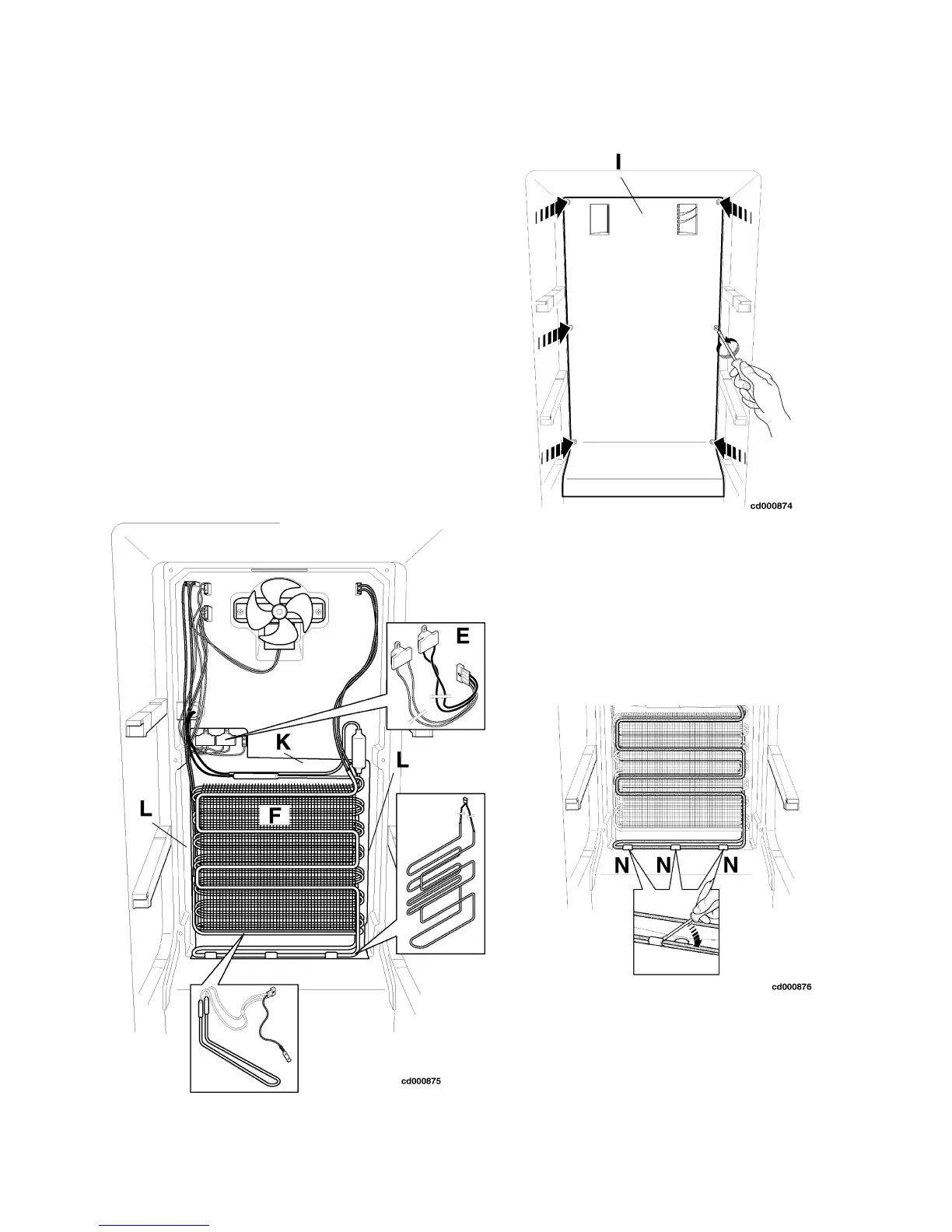

7.3. FREEZER COMPARTMENT ACCESSIBILITY
To access the components of the freezer compartment
it is necessary to remove I protection.
Evaporator battery
F evaporator battery is fixed to container K by two
lateral clips L and by three hooks at the bottom N,
removable with a screwdriver.
