R600a NOFROST REFRIGERATORS
8/22

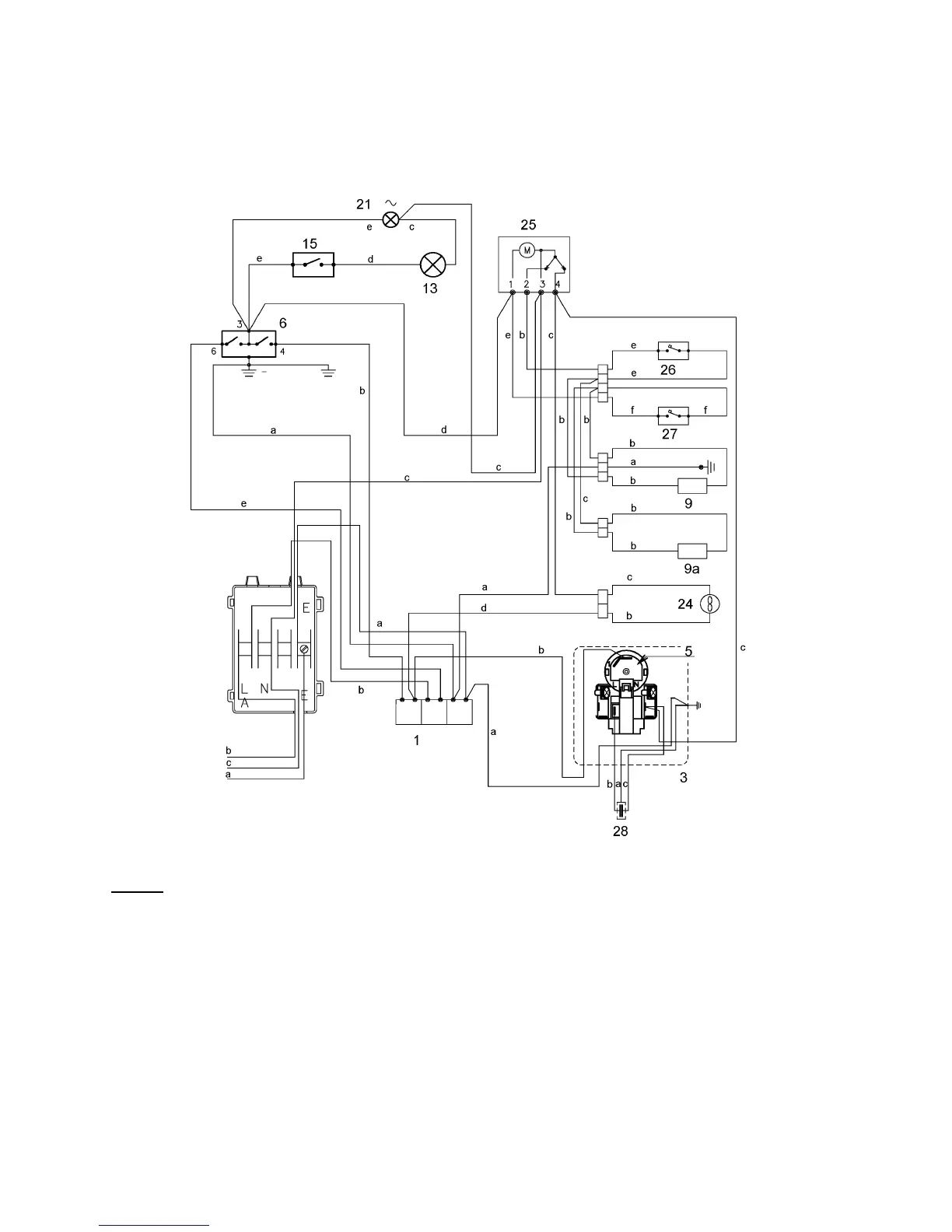

3. ELECTRIC WIRING
( check the specific diagram for each model ! )
Legend:
1. 3 ways junction box a. yellow-green
3. freezer compressor junction box b. brown
5. overload cut-out c. blue
6. refrigerator thermostat d. white
9. stylus defrosting heater e. black
9a. armored defrosting heater f. grey
13. refrigerator lamp
15. light switch
24. battery fan
25. timer
26. safety thermal switch (+ 40 °C)
27. defrosting cut-out switch (+ 10 °C)
28. running capacitor
