R600a NOFROST REFRIGERATORS
20/22

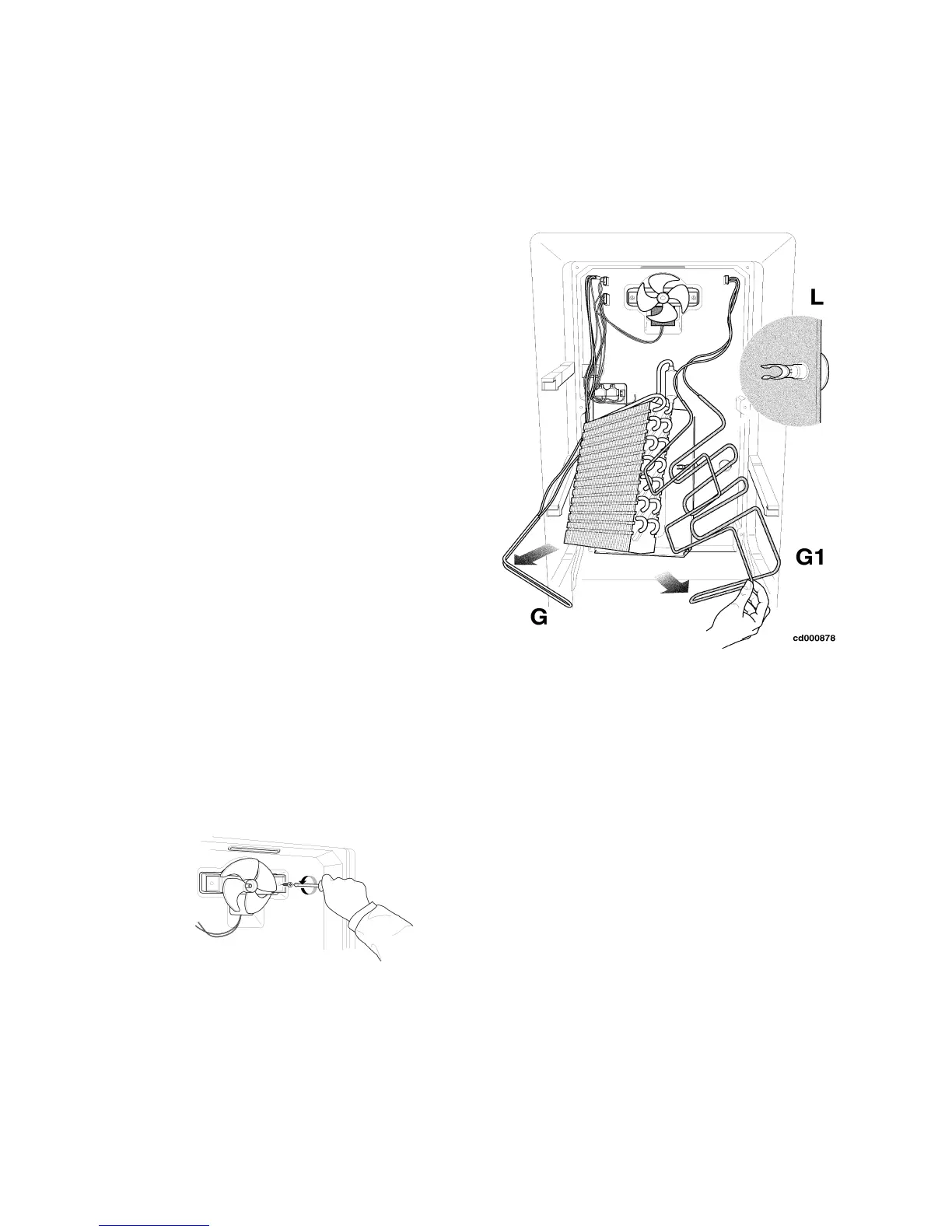

Armored defrosting heater
The armored defrosting heater G1 is
inserted into the aluminium wings of the battery;
to replace the heater, it is necessary to remove it from the
wings of the battery paying attention not to bend them.
The conveyor
The conveyor K for the defrosting water is fitted to the
bottom of the compartment with two clips L;
to unhook the conveyor it is necessary to push down
the two clips.
The fan
The fan is fixed with two screws.
