CONTROL SYSTEM
The Freezer and Refrigerator controls are located in the
same housing, mounted in the food compartment along
with the light and defrost timer or Automatic Defrost
Control (ADC). See Figure 1.

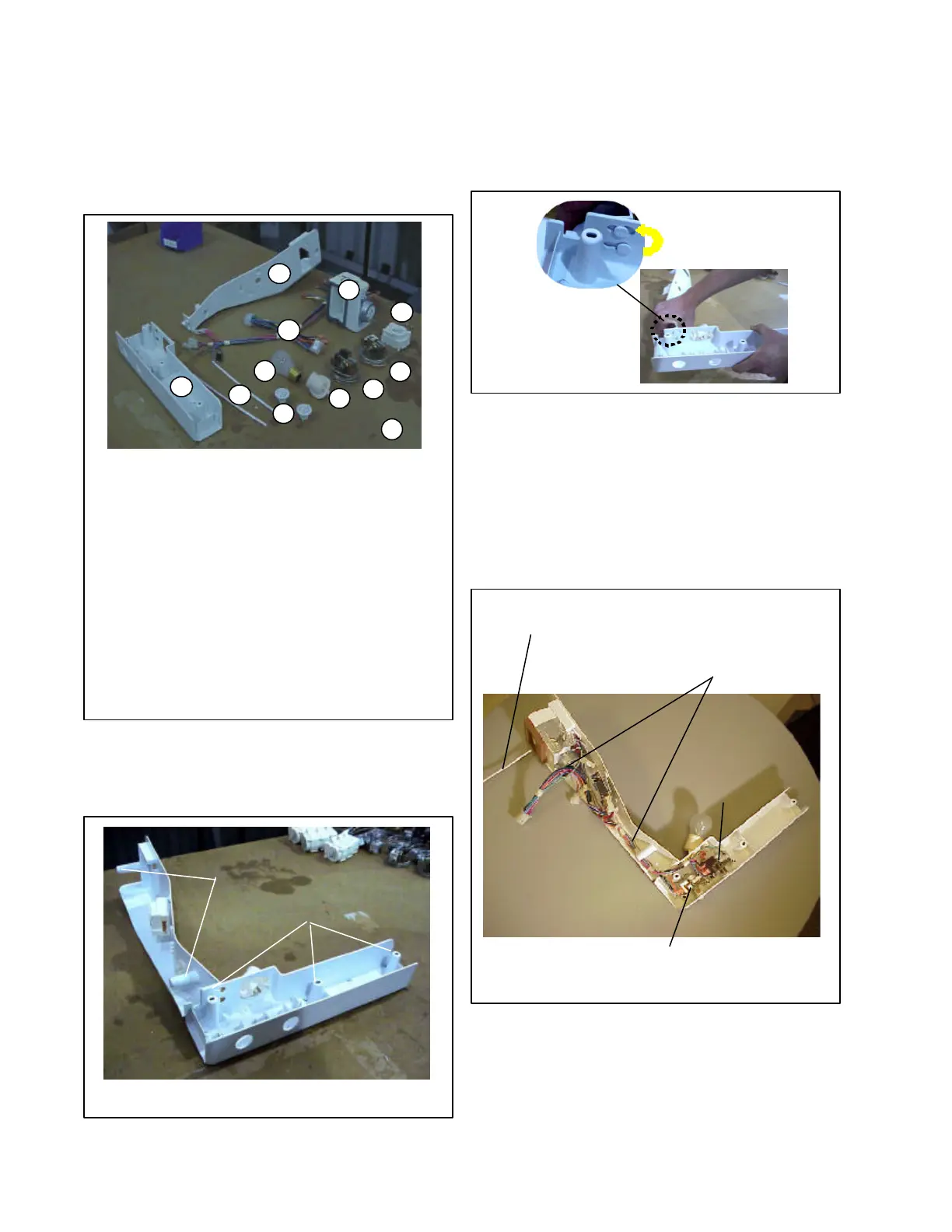

Figure 1
1
2
3
4
5
7
8
9
6
12
11
10
1. Control Box - Front Section
2. Control Box - Rear Section
3. Control Wiring Harness
4. Food Compartment Damper Control
5. 2 Plastic Tubes (Cover Control Bulb)
6. 2 Knobs for Controls
7. Light Bulb
8. Socket - Light Bulb
9. Cold Control - Food Compartment
10. Cold Control - Freezer Compartment
11. Defrost Timer/ADC Control
12. 2 Wire Retainer Clips (not shown)
To remove the Control Housing Assembly, remove the
three screws across the front control box and the two
screws located in the rear control box. (See Figure 2.)
Figure 2
Front Screws
Rear Screws
The housing assembly will separate at left back of front
section by sliding rear section to right until buttons line
up with larger hole in slots. (See Figure 3.)
Figure 3
Freezer Compartment Control
The Freezer Control is mounted on the left (as shown in
Figure 4) and it controls the cycling of the compressor
and fan motors. The cap tube for the control runs along
the right side of the rear housing and has a plastic sleeve
installed on the last eight inches.
To replace Freezer Control, remove screws and drop
housing. Pull cap tube for control from guide tube under
air inlet at back of rear housing. (See figure 4.)
Figure 4
Cap Tube Freezer Control
with Plastic Tube
Freezer Control
Food
Compartment
Control
Runs along rear housing
and out under Damper
Control
