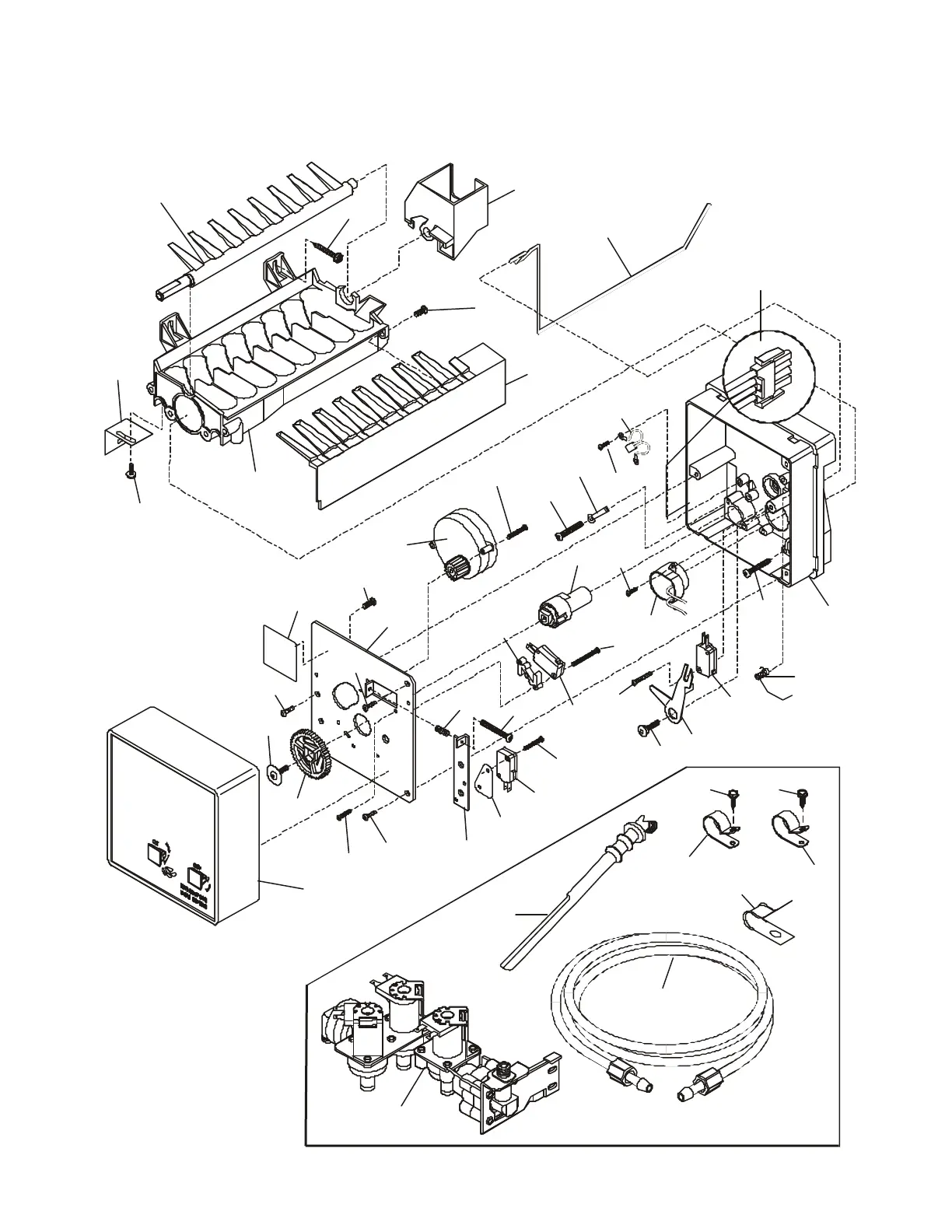

B - 9
Screw
Screw
Clamp
Fill Tube
Clamp
Clamp
Screw
Motor
Screw
Support
Screw
Ice Stripper
Bearing & Fill Trough
Shut-off Arm
Screw
Ice Ejector
Ice Maker Mold
With Heater
Screw
Leveling
Bracket
Cam
10
Screw
Screw
Screw
Screw
Screw
Screw
I.D. Plate
Screw
Screw
Screw
Screw
Screw
Thermostat
Screw
Thermal Cutoff
Assembly
Hold Switch
SPDT
Shut-off
Switch SPDT
Shut-off
Arm Spring
Water Fill
Switch SPDT
Insulator
Valve Switch
Plate
Cover
Gear
Screw
Mounting Plate
Spring
Spacer
Lever Arm
Screw
Wiring Harness
Connector Plug
Water Inlet Tube
Water Valve Assembly
INSTALLATION PARTS
Ice Maker
