Low/No Voltage Test for good connections at all points in the ice and water wiring. There are a number of At
Coil(s) connections in the wiring of a refrigerator. On the ice maker, the wiring runs through the plug,
by the condenser fan motor, up to the ice maker, back down to the same plug, and into the diode
harness. On the water dispenser, the wiring runs from the plug by the condenser fan motor, to
the plug at the bottom of the freezer door, up to the dispenser and back down through the same
plugs to the diode harness. A bad connection at any of the plugs or wire terminals can stop the
valves from operating. One of the problems we have found is that the connector on the water
valve coils is pushed on with the valve terminal, over top of the terminal in the plug. (See Figure
H9.)

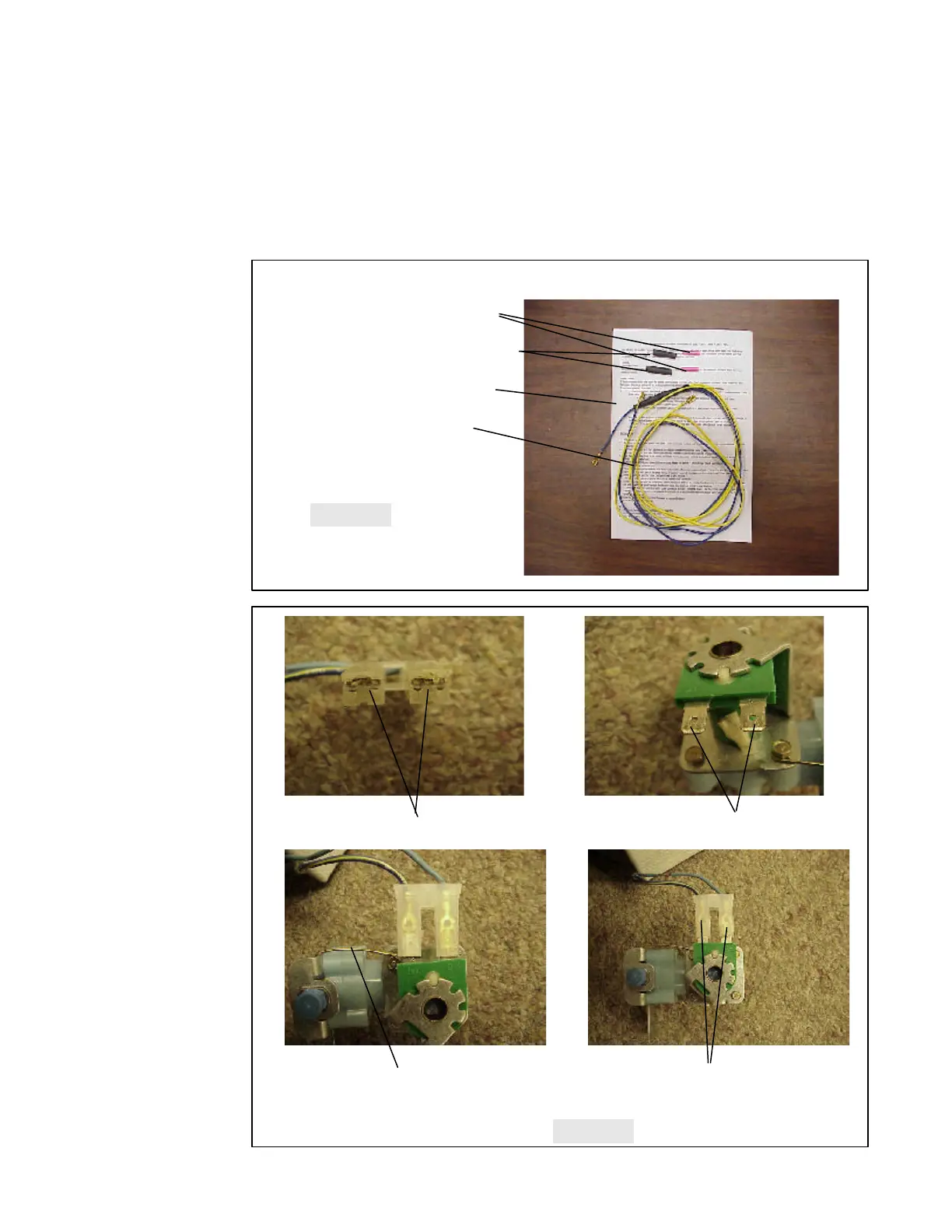

The Diode kit part number is 5304418384, this kit will contain:
(2) Crimp Connectors
(2) Pieces of heat shrink
(1) Instruction sheet
(1) Diode Harness
Figure H8
Terminals on Coil
Terminals in Connector
Terminals and Plug
Installed Correctly
Terminal on Coil is Installed Over
Top of Terminal on Left Side of Plug
Figure H9
