12
Maintenance Manual
4.5 Maintenance of heat pump
4.5.1 Clean inside of the heat pump unit

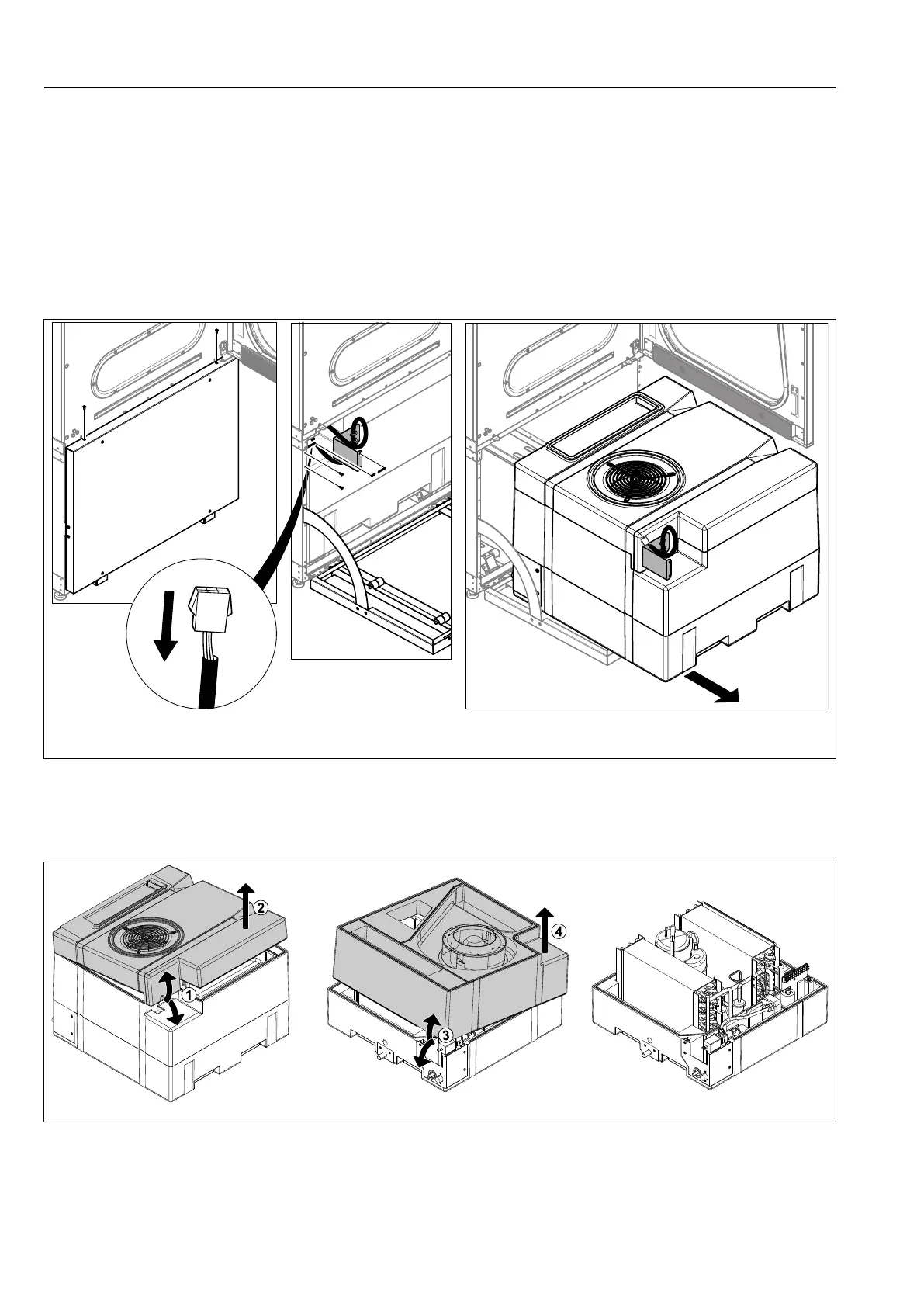

Remove the heat pump
• Disconnect the power.
• Disconnect the water and drain hoses.
• Open the door and demount the screws on top of the heat pump unit door.
Open the heat pump unit door.
• Disconnect the cable and demount the cover panel with the cable.
• Pull out the heat pump.
fig.8008
Separate the heat pump unit
Remove the tension straps around the heat pump unit.
Separate the heat pump unit (three units). Separate the units according to the figure.
fig.W00625
Clean the area in the heat pump unit:
• Cover all electrical components in the heat pump unit.
• Position the heat pump unit with the drain for condensed water over a floor drain or similar.
