Maintenance Manual
9

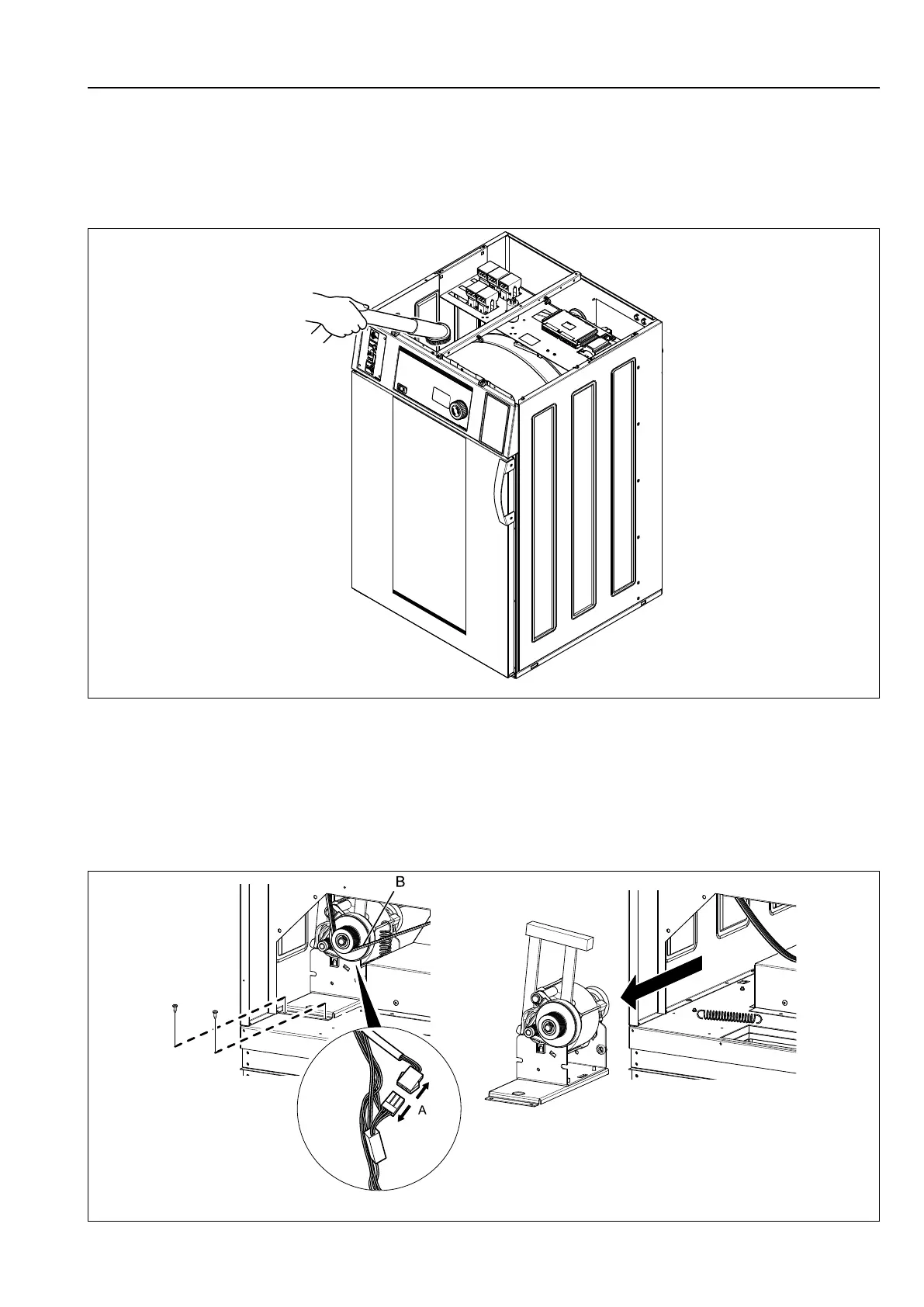

4.2 Clean the area around the drum
Disconnect the power to the machine.
Demount the top panel.
Make sure that the area around the drum and the area over the drum are clean and that there is no lint. Clean with a
vacuum cleaner if necessary.
fig.7974
4.3 Clean the motor and the area around the motor
Disconnect the power to the machine.
Demount the rear panel.
Disconnect the motor cable (A).
Demount the spring and the drum belt (B).
Demount the two screws and remove the motor with console and pulley.
fig.8042A
