Electrolux washing machine Service Manual

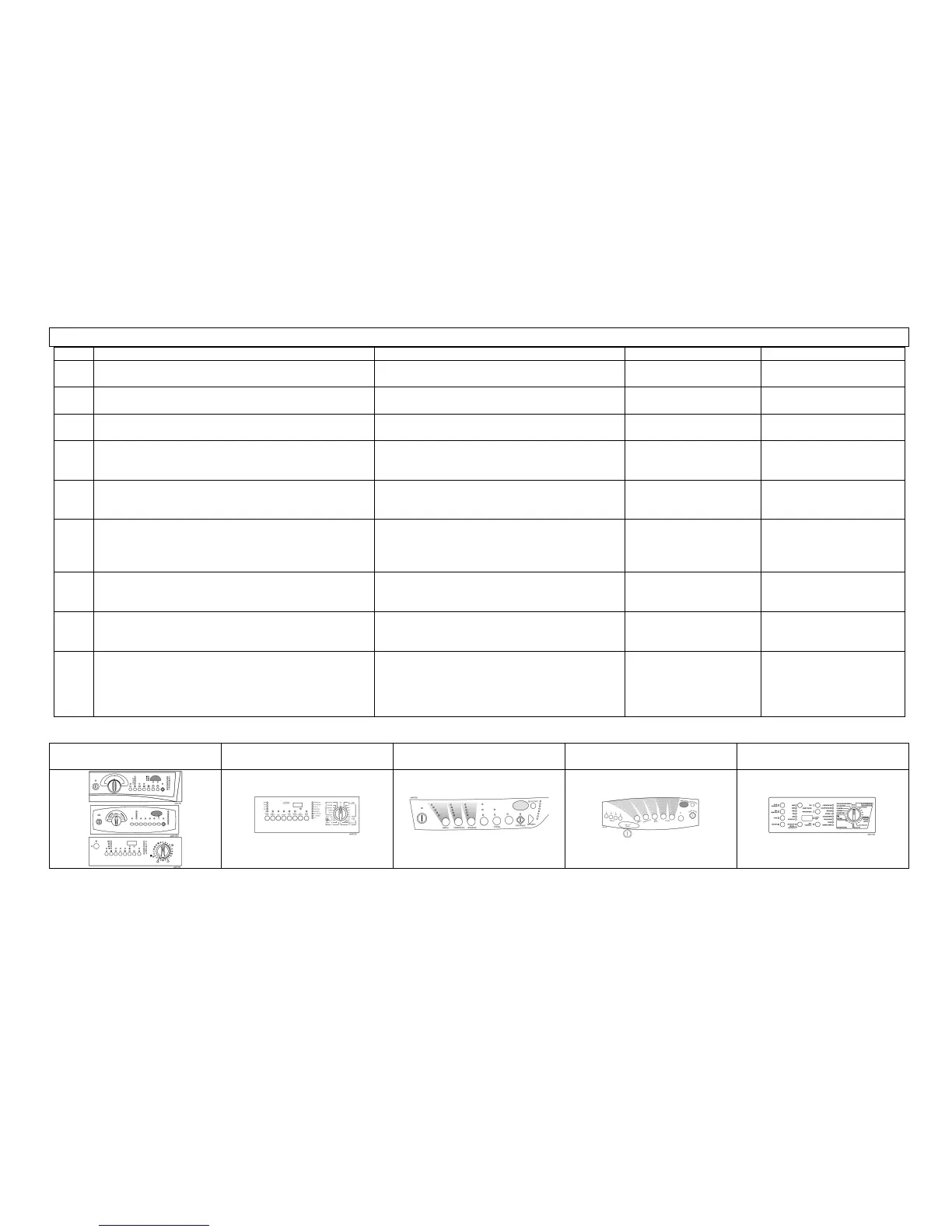

DIAGNOSTICS CYCLE PHASES
SSD-P APdV, EB, HD 01/05 6.1 599 34 71-47
Step Components actioned Operating conditions Parameters displayed Function tested
0
All the LEDs light in sequence. When a button is
pressed, the corresponding LED lights.
Always operative Button code
Operation of the user
interface
1
- door interlock
- wash solenoid
Door closed, water fill to anti-overflow level for
max. 10 min
Water level in mm
Water fill to wash
compartment
2
- door interlock
- pre-wash solenoid
Door closed, water fill to anti-overflow level for
max. 10 min
Water level in mm
Water fill to prewash
compartment
3
- door interlock
- pre-wash solenoid
- wash solenoid
Door closed, water fill to anti-overflow level for
max. 10 min
Water level in mm
Water fill to softener
compartment
4
- door interlock
- hot water or bleach solenoid
Door closed, water fill to anti-overflow level for
max. 10 min
Water level in mm
Hot water fill or fill to bleach
compartment
(certain models only)
5
- door interlock
- (wash solenoid if level is lower than the anti-boiling)
- recirculation pump
- heating element
Door closed, water fill to above anti-boiling level
if not yet reached, heating for max. 10 min or to
90°C
Water temperature in °C
Heating and recirculation
(jetsystem)
6
- door interlock
- (wash solenoid if level is <anti-boiling)
- motor
Door closed, (water fill above anti-boiling level),
drum movement at 50 rpm (cw), motor
movement until the drum reaches 250 rpm (ccw)
Motor speed (rpm) Check for leaks from tub
7
- door interlock
- drain pump
- motor
Door closed, water drain, motor movement (from
lower level to anti-foam level), until maximum
spin speed is reached
Motor speed
(rpm ÷ 10)
Drain and spin, check for
pressure switch
congruency
8
- door interlock
- drain pump
- drying heater (full power)
- fan motor
- condensation solenoid
Door closed, water drain to a level lower than the
anti-boiling device, drying heater for max. 10 min
or until the drying temperature sensor (fitted to
the duct) detects a temperature of 150°C
NTC drying temperature
and condenser
temperature
(°C, displayed alternately
for 2 sec)
Drying (washer/dryers only)
Access the diagnostic cycle:
Table 1: FULL SMD with on/off
button
Table 2: FULL SMD with on/off
switch on the selector
Table 3: DELTA3 - NEAT Table 4: INPUT Table 5: AEG
