2.4: Terminal Connections
Telephone Connections
Connector J4:
The telephone line should be connected as follows:
On-Board Relay Contacts
Terminals 1, 2, 3 and 4:
K5: 1 - N.C., 2 - Common, 3 - N.O.
K6: 4 - N.O. (Relay K6 is internally connected to + AUX power supply)
Keypad Connections
Terminals 5(-), 6(+), 7(LSCP-), 8(LSCP+):
5 (Black) Common Ground -, 6 (Red) AUX power +, 7 (Green) LSCP - signal, and 8 (White) LSCP + signal.
Make sure that the wires are connected to the same connections on the keypad.
Zone Connections
Terminals 9(+), 10(-), 11(+), 12(+), 13(-), 14(+), 15(+), 16(-), 17(+), 18(+), 19(-), 20(+):
Zone 1:
Terminals 9 and 10
Zone 5:
Terminals 15 and 16
Zone 2:
Terminals 11 and 10
Zone 6:
Terminals 17 and 16
Zone 3:
Terminals 12 and 13
Zone 7:
Terminals 18 and 19
Zone 4:
Terminals 14 and 13
Zone 8:
Terminals 20 and 19 (Fire by default)
Auxiliary Power Output
Terminals 21(+), 22(-):
Regulated 12Vdc nominal at 1A max. including keypads and detection devices for 4 hours standby. (For
CSFM Fire applications - 220mA max. including keypads and smoke detectors for 24 hours standby).
Microphone
Terminal 23
Microphone input for listen-in applications (software dependant).
Smoke Detector Power Output
Terminals 24(+), 25(-):
These terminals provide up to 100mA for powering latching smoke detectors. The smoke detector output is
active low and is restored either automatically or manually.
Bell Power Output
Terminals 26(+), 27(-):
Connect these terminals to supply power to the bell. The power requirements are as follows: AUX power
(12Vdc nominal regulated; 9 - 18Vdc unregulated), rated at 600mA. with 40VA transformer.
AC Power Input
Terminals 28, 29:
Connect a 16.5Vac Class II transformer rated at 40VA, using 18AWG wire.

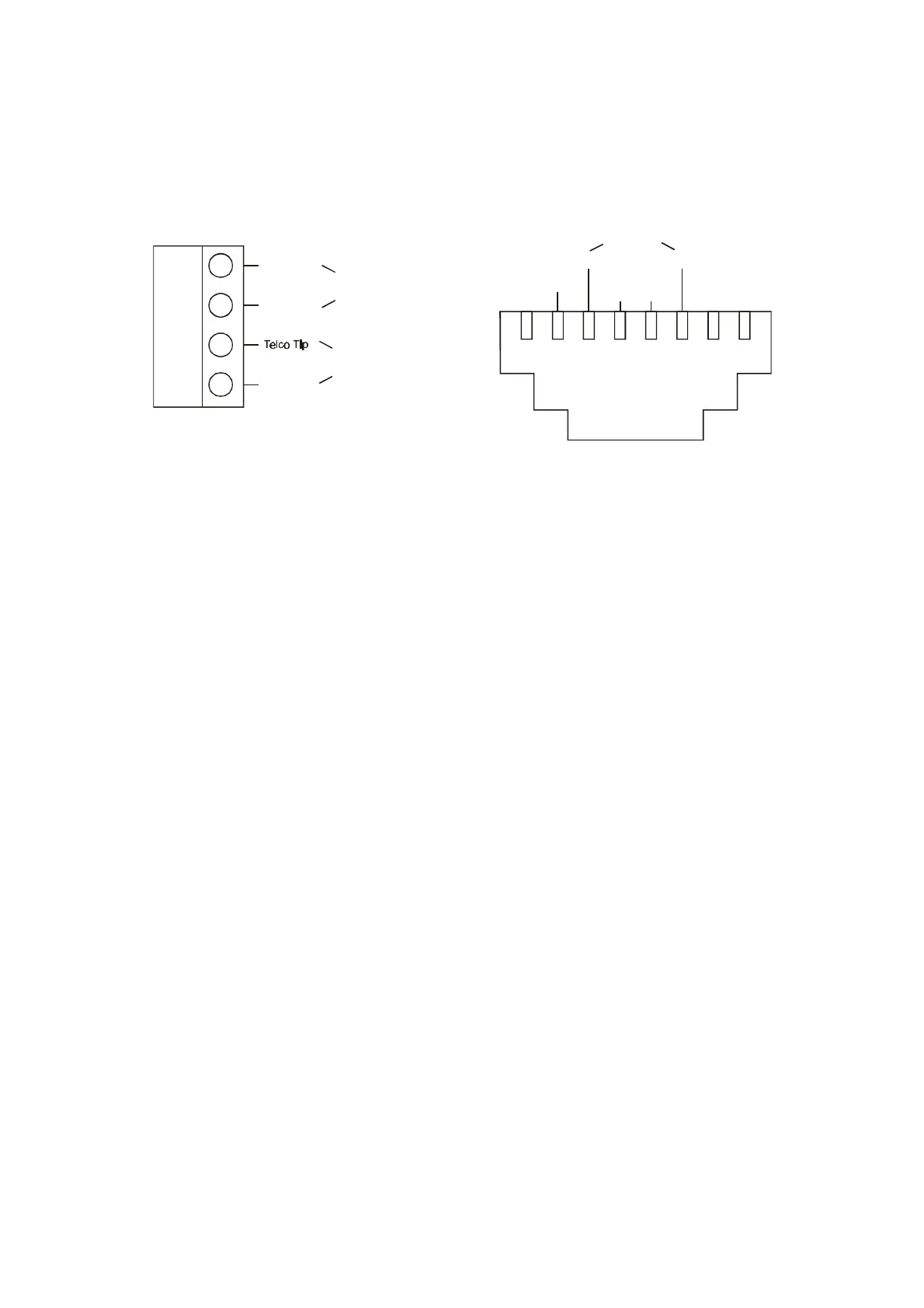

1
2
3
4
5
6
7
8
Earth
Incoming Line
from Telephone
Company
8-Position Telephone Socke
t
Outgoing Line
to Telephone
L-
L-
L+
L+
Incoming Line
from Telephone
Company
Outgoing Line
to Telephone
Home Tip
Home Ring
Telco Ring
1
2
3
4
-Or-
