CHAPTER TWO: INSTALLATION
2.1: Parts and Options
Standard Parts
Summit 3208GLD Household Burglary Alarm Control Panel without keypad 1 each
2.2K ohm burglary End Of Line Resistors 8 each
Installation, Operation, and Programming Manual 1 each
User Manual 1 each
Optional Parts List
3106 LED Keypad
3108 LCD Keypad
3407 7 Relay Output Relay Module
3508 8 Zone Expander Module
3528 Wireless Zone Expander
RP3206 Up/Downloading Software
3911 Up/Downloading Remote Programmer & RS232 Cable
12Vdc Adapter for Remote Programmer
12Vdc/7Ah battery
3722 15Vac 30VA Transformer
2.2: Mounting the Keypad
Both the LCD and LED keypads are supplied configured to keypad address 1 in unsupervised mode. To
connect the keypad/s you will need a small flat-head screwdriver. The maximum recommended distance
between the control panel and the keypad is 1,000m (3,000ft.).

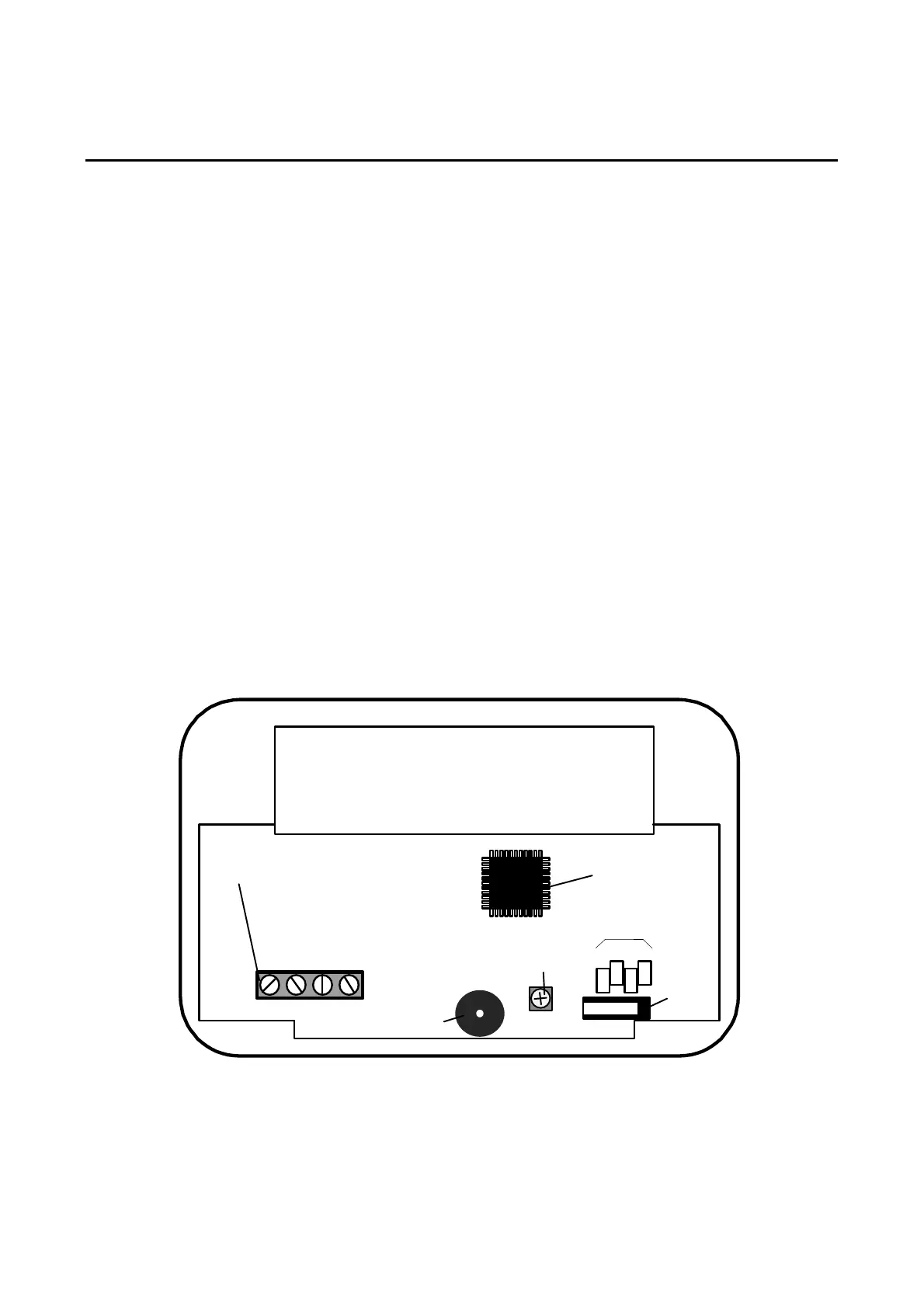

LED / LCD Module - rear view, cover removed
Tamper
Switch
W
H
I
T
E
R
E
D
G
R
E
E
N
B
L
A
C
K
Buzzer
LCD Module
Jumpers
LED /
LCSP
terminal block
LCD Contrast
trimmer
MicroController
GND
-
+ VDD
S
A
B
C
LSCP
