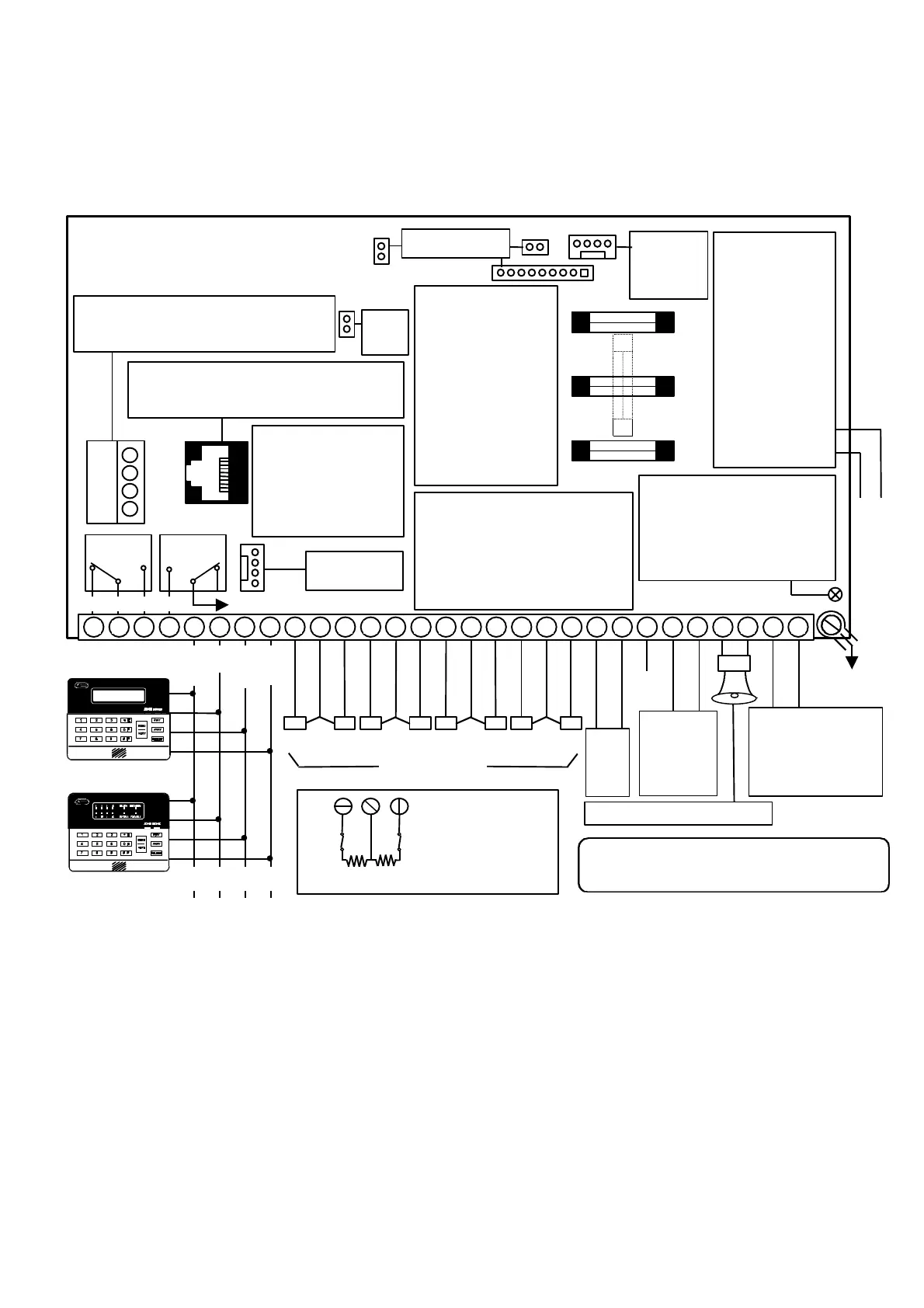

2.3: Wiring Diagram
BLACK
RED
Z1 Z2 Z3 Z4 Z5 Z6 Z7 Z8
F2
F3
F1
Zone Connections
1
8
LSCP Bus
1
2
3
4
2928272625242322212019181716151413121110987654321
K5
K6
Internally connected to + AUX Power
LSCP Bus
Connector
PROTECTION FUSES
F1 (BATT): 3A/250V
(bel 5MF3)
F2 (AUX): 1.6A/250V
(bel 5MF1.6)
F3 (BELL): 3A/250V
(bel 5MF3)
Install F3 horizontally to
supply 12V nominal
regulated power to bell.
Install vertically to supply
9-18V unregulated to
bell.
AUXILIARY POWER OUTPUT
Regulated 12Vdc nominal.
Fire: In accordance with CSFM (Fire)
supplies 220mA for 24 hours.
Burglary: Supplies 1A for 4 hours
(including 100mA to smoke detector,
terminals 24 and 25)
TELCOM
1 & 2: Outgoing line to telephone
3 & 4: Incoming line from telephone company
TELCOM
4 & 5: Incoming line from telephone company
3 & 6: Outgoing line to telephone
J4
-or-
8-POSITION
TELEPHONE SOCKET
Attach the incoming
telephone line and
telephone according to the
instructions provided in
the Installation manual
Connect
to Earth
LED SYSTEM
STATUS INDICATOR
On = Telephone Tone Detection
Off = System in Communication
Flashing = Dialing
Flashing (1 pulse/sec) = Standby
12V/7Ah
BATTERY
Use
POWERSONIC
PS-1270 or
YUASA NP7-12
Replace the battery
every 3 - 5 years
Long Range
Radio
Interface
Connector
+
-
Electronics Line (E.L.) Ltd.
SUMMIT 3208GLD
Household Burglary and Fire Alarm Panel
(+) (-)
AUX
Power
Output
Smoke
Detector
Output
12V nominal
max. 100mA
Use Electronics Line
3108 LCD Keypad
Use Electronics Line
3106 LED Keypad
Siren Audio Output: 8Ω, 8W
Transformer
15Vac/30VA
Do not connect to a
switch-controlled
receptacle
Typical End of
Line Resistor
Zone
Connections
(EOLR)
N.C.
2.2K
N.C.
2.2K
Mic
OBSERVE PROPER WIRING CONNECTIONS!
Refer to the Installation manual for further information
Label Part Number:
ML0032A (1/99)
Factory
Test
Point
N.C. C. N.O. N.O.
BLACK
RED
GREEN
WHITE
+ -
For Future Use
