Elektron MULTISPOT MTX 4900 - 4 Design and Function; Overview

MTX 4900
Design and function
13
4 Design and function
4.1 Overview

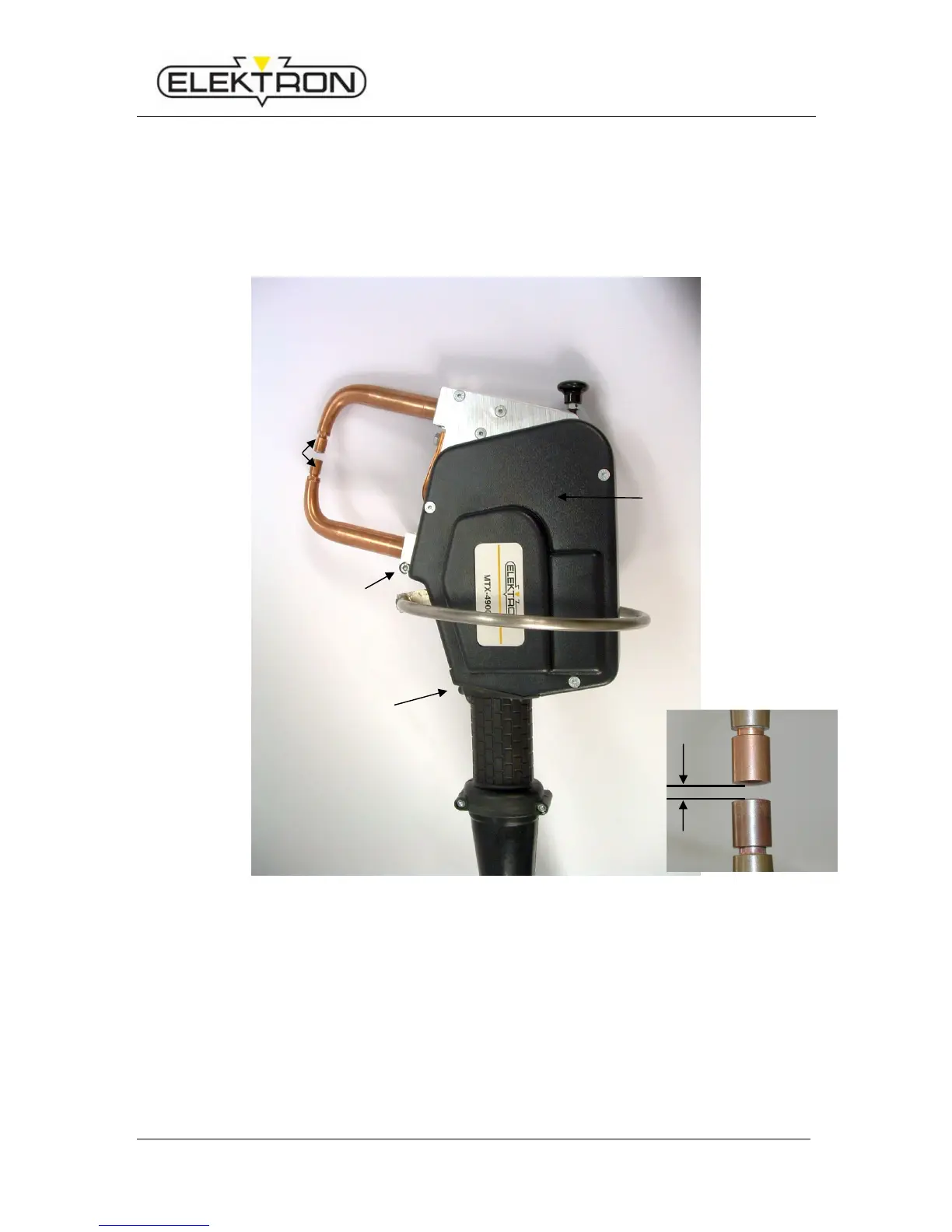

Fig. 1: Overview Welding pliers
1. Welding pliers
2. Electrode arm receptacle
3. Adjusting and release button for movable electrode arm
4. Electrode arm, movable, Ø 25 mm
5. Electrode caps
6. Electrode arm, stationary, Ø 25 mm
7. Ring bar
8. Release button
9. Welding cable
10. Hexagon screw for fixing the electrode arm
4
3
2
5
1
2
6
10
7
Necessary distance
8
6-8mm
9
