Elektron MULTISPOT MTX 4900 - Connecting the Pliers

MTX 4900
Operation
16
5.1.2 Connecting the pliers

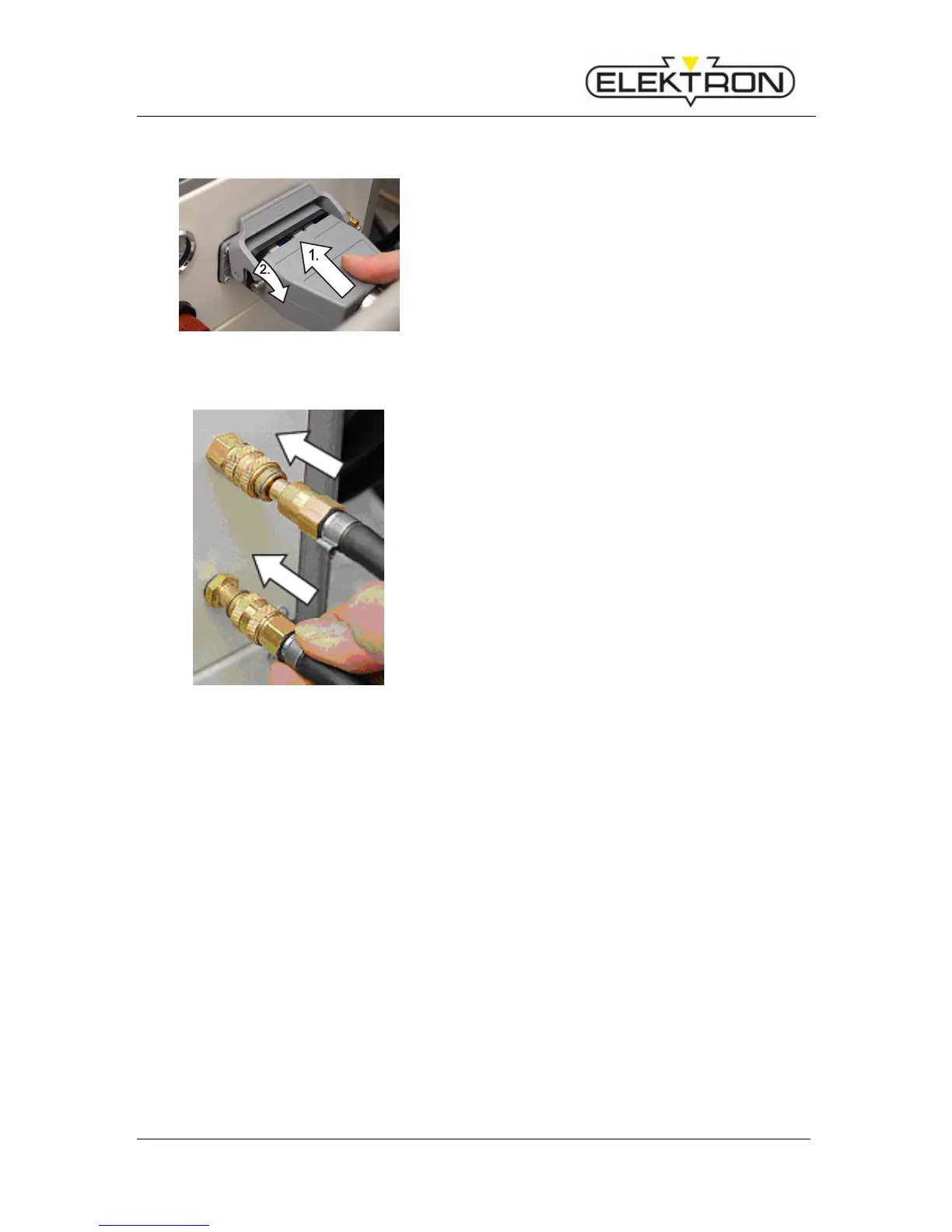

Fig .4: Connecting the pliers
1
.
Push the main plug of the welding pliers into the main
socket of the equipment (Fig .4/1).
2. Push down the clamps to lock the connection. (Fig .4/2).
Fig. 5: Water cooling system for the
pliers
3
.
Connect the water cooling system of the pliers.
