Element ELCHW321 Service Manual

Element (ELCHW321) 32 inch LCD Television Service Manual
Proprietary & Confidential Page 20
Wiring part numbers
No. Part # Function Factory code
1 1044276 LVDS cable HX-0145\ROH
2 1041171 Speaker wires TJC3H-4Y-400-600\ROH
3 1042085 Power board to Main board TJC10T-14Y-450\ROH
4 1034088 Keypad wire TJC10T-3Y-650\ROH
5 1029223 IR board wire TJC10T-5Y-400\ROH
6 1041501 Power inlet to Power board TJC2-3Y-500-2-S\ROH

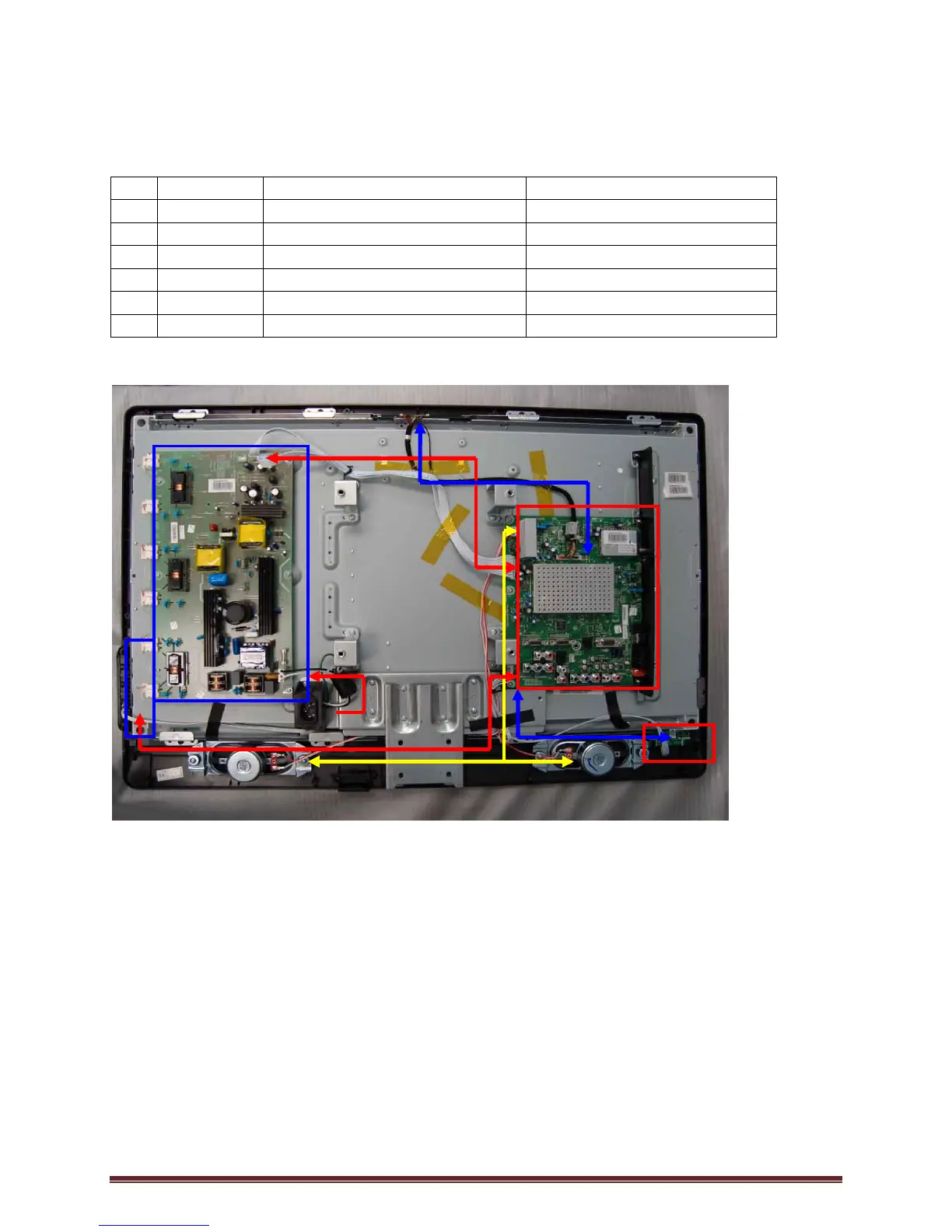

Image courtesy of Hisense (Image 20)
1
2
3
4
5
6
