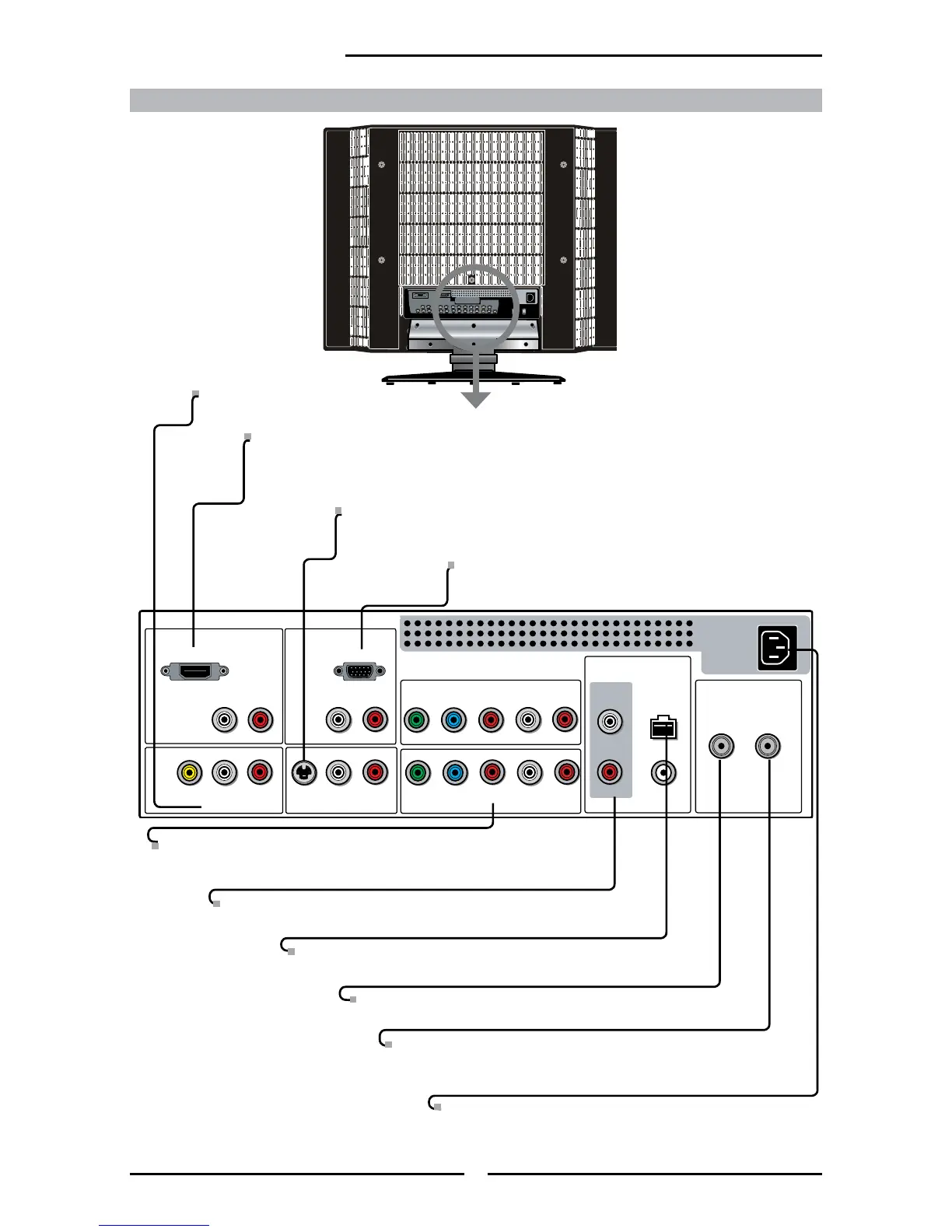

Element ELCP0371 - Rear View and Jacks

HDMI IN
AUDIO
L R
L R L R
L R
L
R
L R
L R
AUDIO
VGA IN
VIDEO2 IN
VIDEO AUDIO
S-VIDEO IN
S-VIDEO AUDIO
YPbPr1 IN
AUDIO OUT
STEREO
DIGITAL
OPTICAL
COAXIAL
TV
CABLE
HDTV
AIR
VHF/UHF IN
Y Pb Pr AUDIO
YPbPr2 IN
Y Pb Pr AUDIO
12
Chapter 1 Introducing the LCD TV
Rear View and Jacks
VGA IN
Connects the PC, or other AV equipment with VGA and
AUDIO(L/R) output jacks.
VIDEO2 IN
Connects to the composite VIDEO and AUDIO(L/R) output jacks on external video equipment.
HDMI IN
Connects the all digital AV equipment with HDMI connector.HDMI supports enhanced,
high-denition video and two-channel digital audio. The AUDIO(L/R) of HDMI IN is for
DVI connection.
S-VIDEO IN
Connects to the S-VIDEO and AUDIO(L/R) output jacks on external
video equipment.
AUDIO OUT-DIGITAL-OPTICAL/COAXIAL
Connects to the OPTICAL AUDIO jack on the digital/standard5.1
VHF/UHF IN-HDTV-AIR
Connects RF input from VHF/UHF antenna or cable to receive
high/standard denition television.
VHF/UHF IN-TV-CABLE
Connects RF input from VHF/UHF antenna or cable.
YPbPr1 IN/YPbPr2 IN
Connects to the DVD player, Digital Set-Top-Box, or other AV
equipment with component(YPbPr) video and audio output jacks.
AC IN
Connects to the AC power cord.
AUDIO OUT-STEREO
Connects to the AUDIO(L/R) input jacks on AV equipment.
