Element4 Sky - Model-Specific Clearances

14
CLEARANCES
Element4 Gas Fireplaces EuropeanHome.com

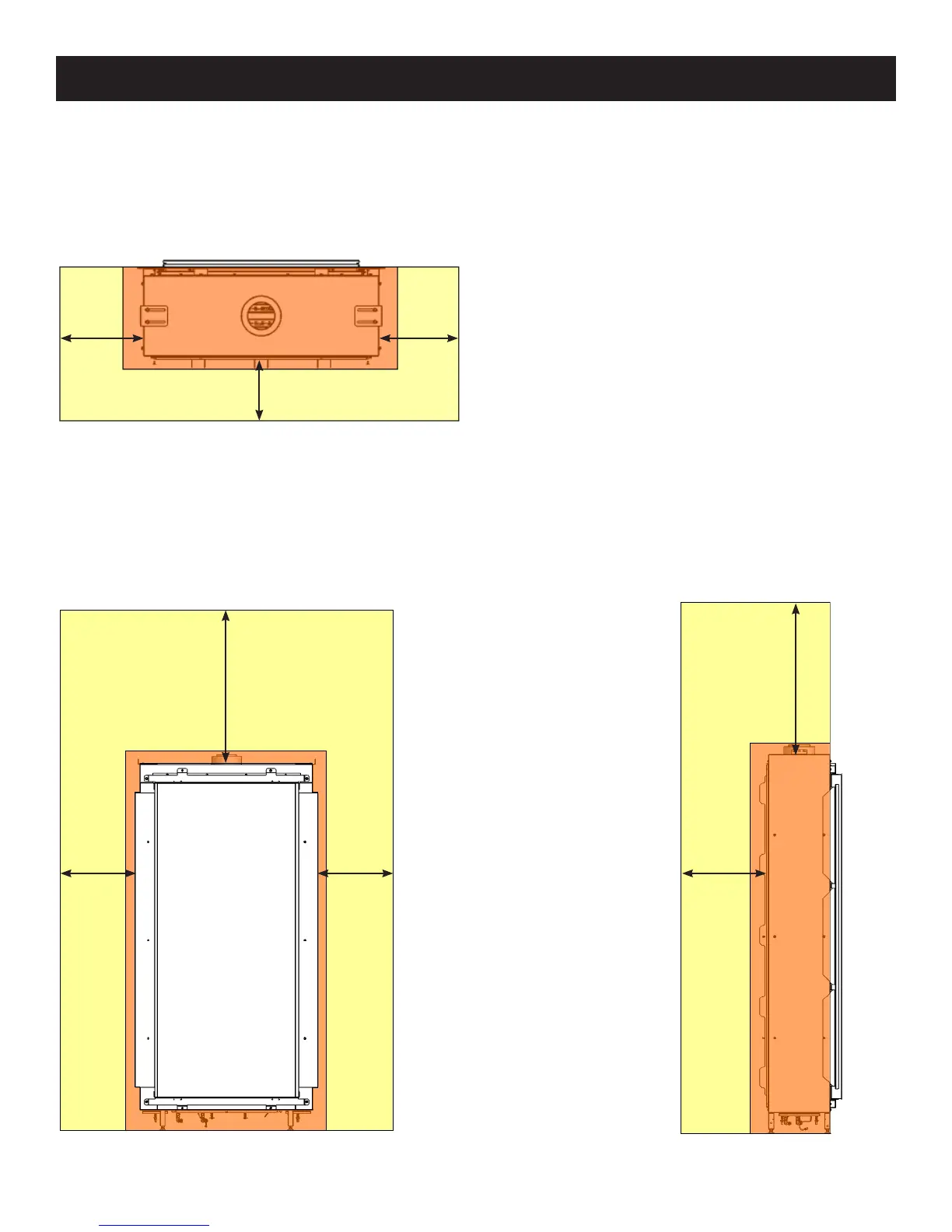

Figure 7 Plan View - Sky
Figure 8 Front Elevation View - Sky Figure 9 Side Elevation View - Sky
11”
280 mm
11”
280 mm
11”
280 mm
11”
280 mm
11”
280 mm
11”
280 mm
26”
660 mm
26”
660 mm
SKY
SKY
Figures 7* through 9* show (in yellow) the clearances to
combustible material which must be maintained.
No material of any kind is allowed between the
bottom of the support feet and the bottom of the
rebox (shown in red).
No material of any kind is allowed within 2”/50 mm
from the top of the replace (shown in red).
No material of any kind is allowed within 2”/50 mm
from the metal sides the replace (shown in red).
Facing material should be installed against the outer
frame of the replace, with an 1/8” vertical clearance
to allow for heat expansion.
*drawings not to scale
