CLEARANCES
Element4 Gas Fireplaces EuropeanHome.com
11”
280 mm
11”
280 mm
11”
280 mm
11”
280 mm
26”
660 mm
26”
660 mm

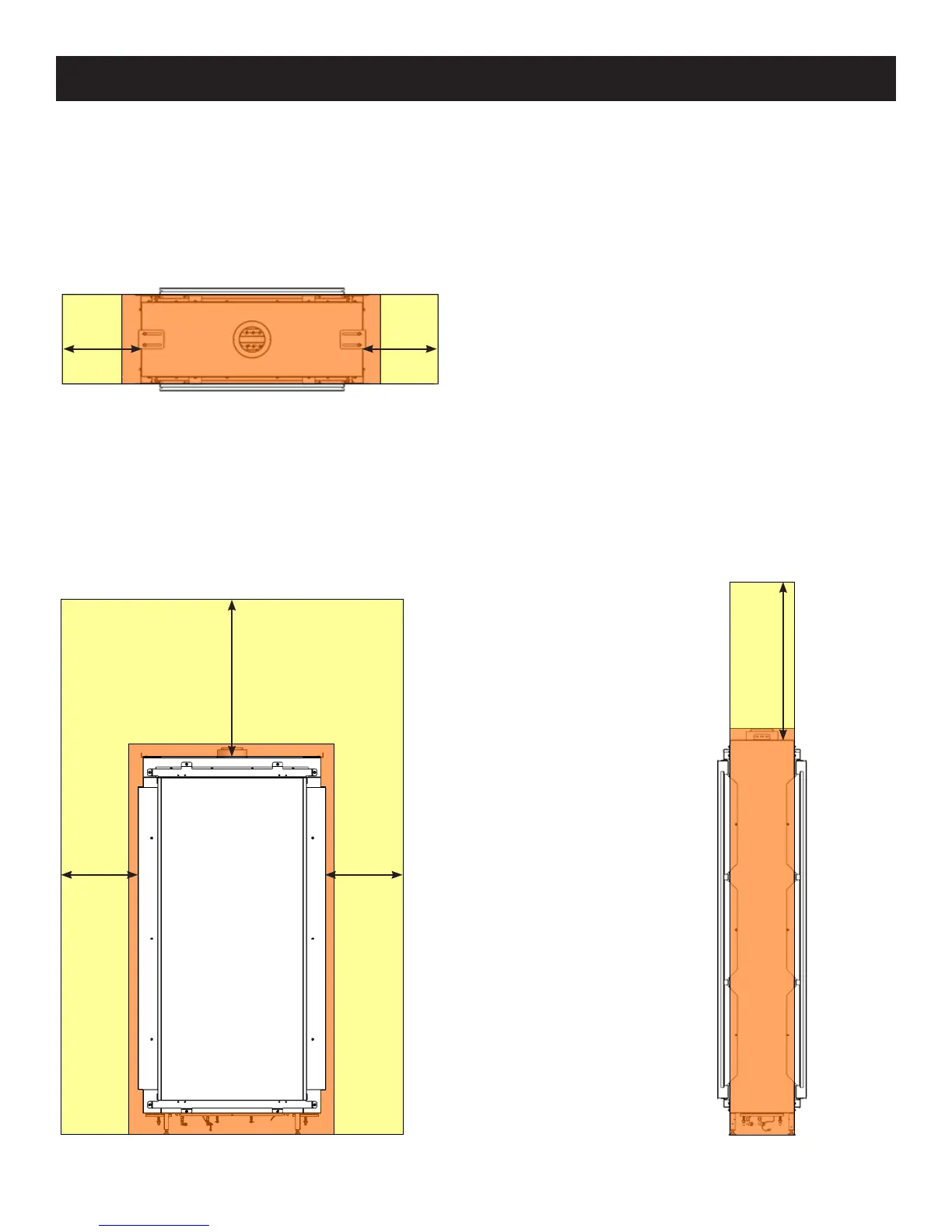

Figure 10 Plan View - Sky T
Figure 11 Front Elevation View - Sky T
Figure 12 Side Elevation View - Sky T
Figures 10* through 12* show (in yellow) the clearances
to combustible material which must be maintained.
No material of any kind is allowed between the
bottom of the support feet and the bottom of the
rebox (shown in red).
No material of any kind is allowed within 2”/50 mm
from the top of the replace (shown in red).
No material of any kind is allowed within 2”/50 mm
from the metal sides the replace (shown in red).
Facing material should be installed against the outer
frame of the replace, with an 1/8” vertical clearance
to allow for heat expansion.
*drawings not to scale
SKY T
SKY T
