27
VENTING
Element4 Gas Fireplaces EuropeanHome.com

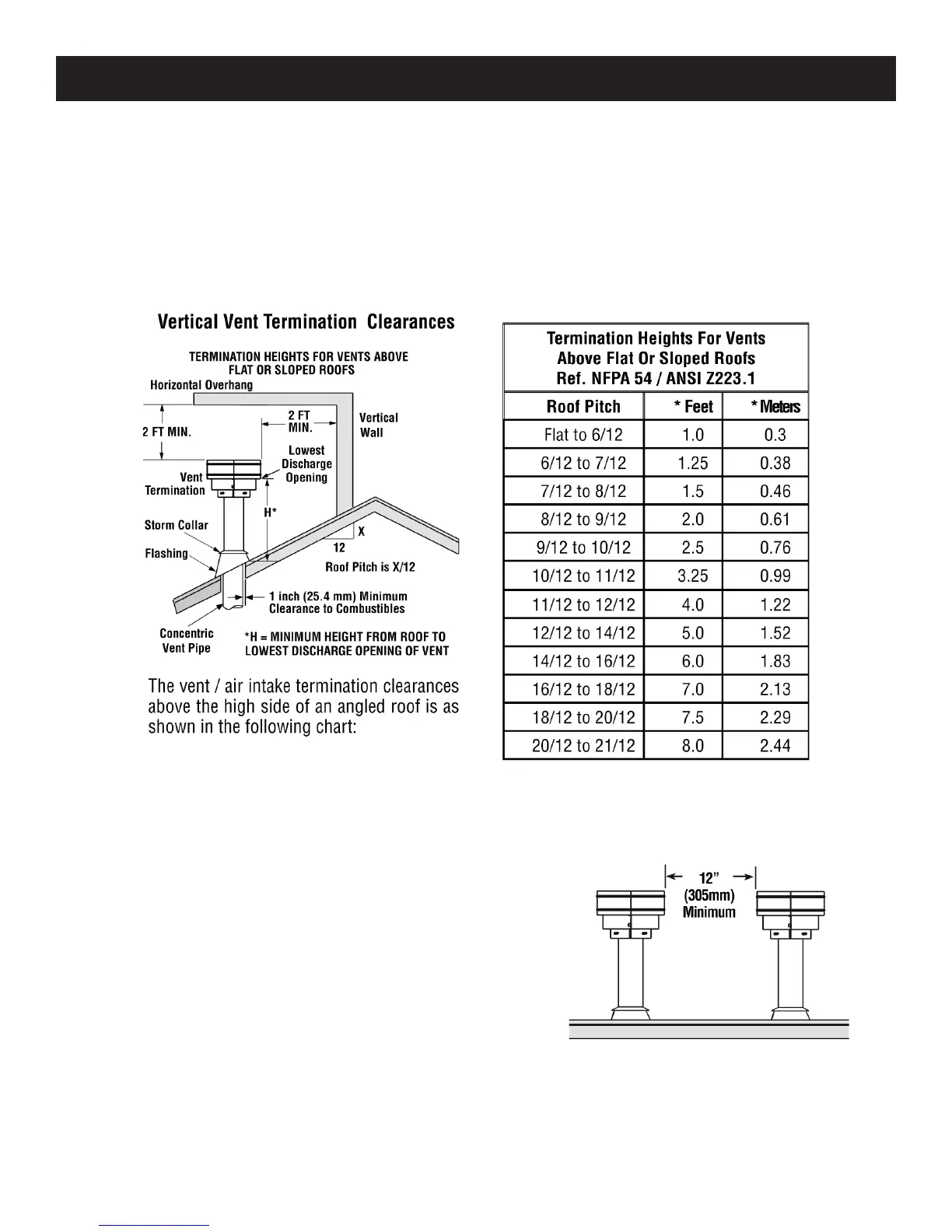

Figure 21 Multiple Termination Clearance
Chart 1 Termination Heights
Important Note for Roof Terminations
These instructions should be used as a guideline and do not supersede local codes in any way. Install venting according to local
codes, these instructions, the current National Fuel Gas Code (ANSI Z223.1 in the USA) or the current standard of CAN/CSA-B149.1
in Canada.
VERTICAL TERMINATION CLEARANCES AND REQUIREMENTS
VERTICAL
A second termination may be no closer than 12”/305 mm. (See Figure 21)
