VENTING
Element4 Gas Fireplaces EuropeanHome.com
RESTRICTORS
INSTALLING A RESTRICTOR
When Using a Horizontal (Wall) Termination
When vertical section is up to 39½”/1 m no restrictor required
When vertical section is 39½”/1 m to 9’10”/3 m 35 mm restrictor
--------------------------------------------------------------------------------------------------------------------------------------
When Using a Vertical (Roof) Termination
When rise is up to 6’6”/2 m 35 mm
When rise is above 6’6”/2 m 60 mm

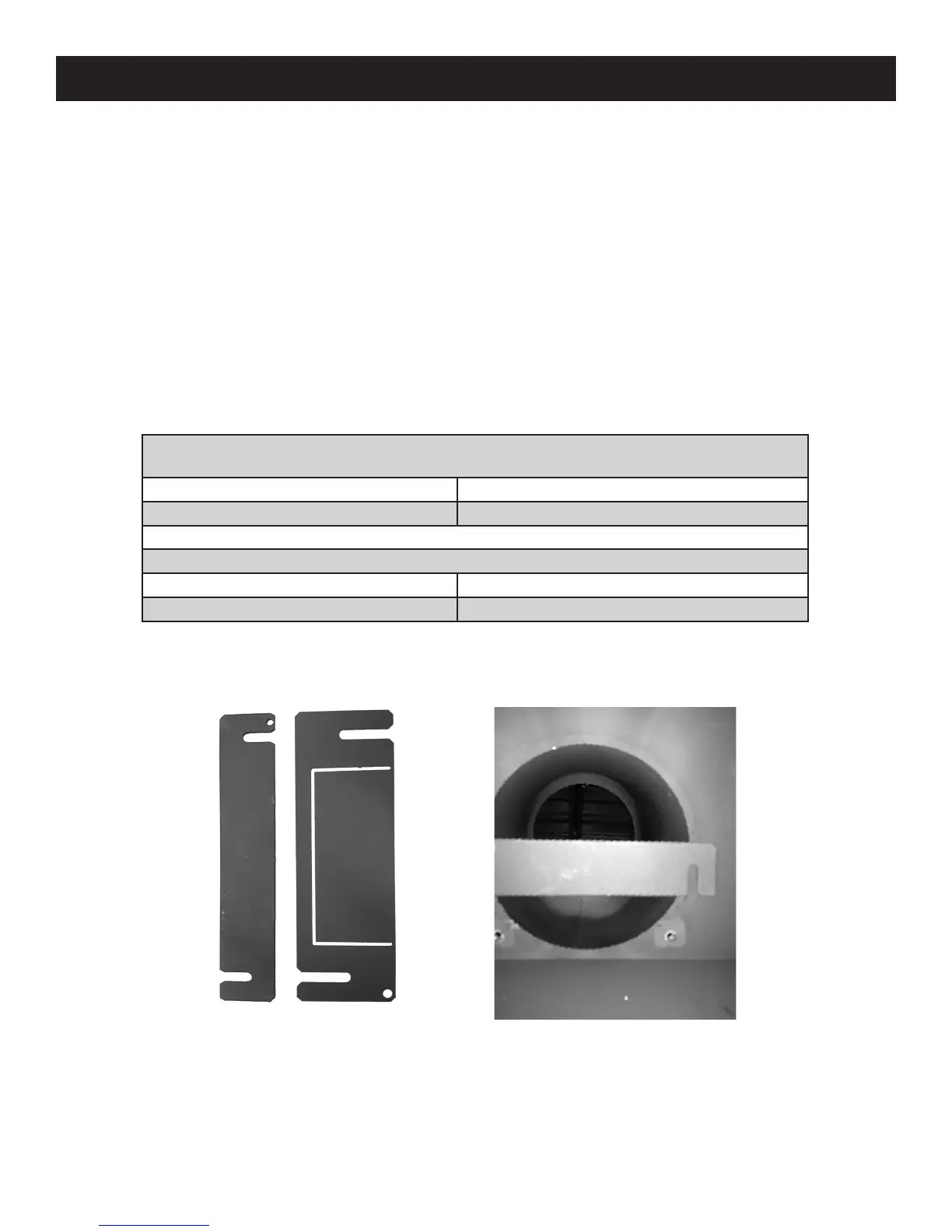

Figure 22
35 mm
60 mm
Figure 23
As previously noted, restrictors must be tted in some congurations. Use the table below to determine which restrictor may be
needed with your venting conguration. The restrictors are shown in Figure 22.
The restrictor for all replace models installs at the very bottom of the outlet collar. Attach the appropriate restrictor to the
bottom of the outlet collar as shown in Figure 23 using the screws provided.
