Use and maintenance manual
Page 7
Engineering Department PHONE: +39 0532 829 965 - FAX: +39 0532 829 177
E-Mail: support@elenos.com
1. GENERAL
1 5
43
2 6
7 8 9 10 11 12
13
15
14
1.2.

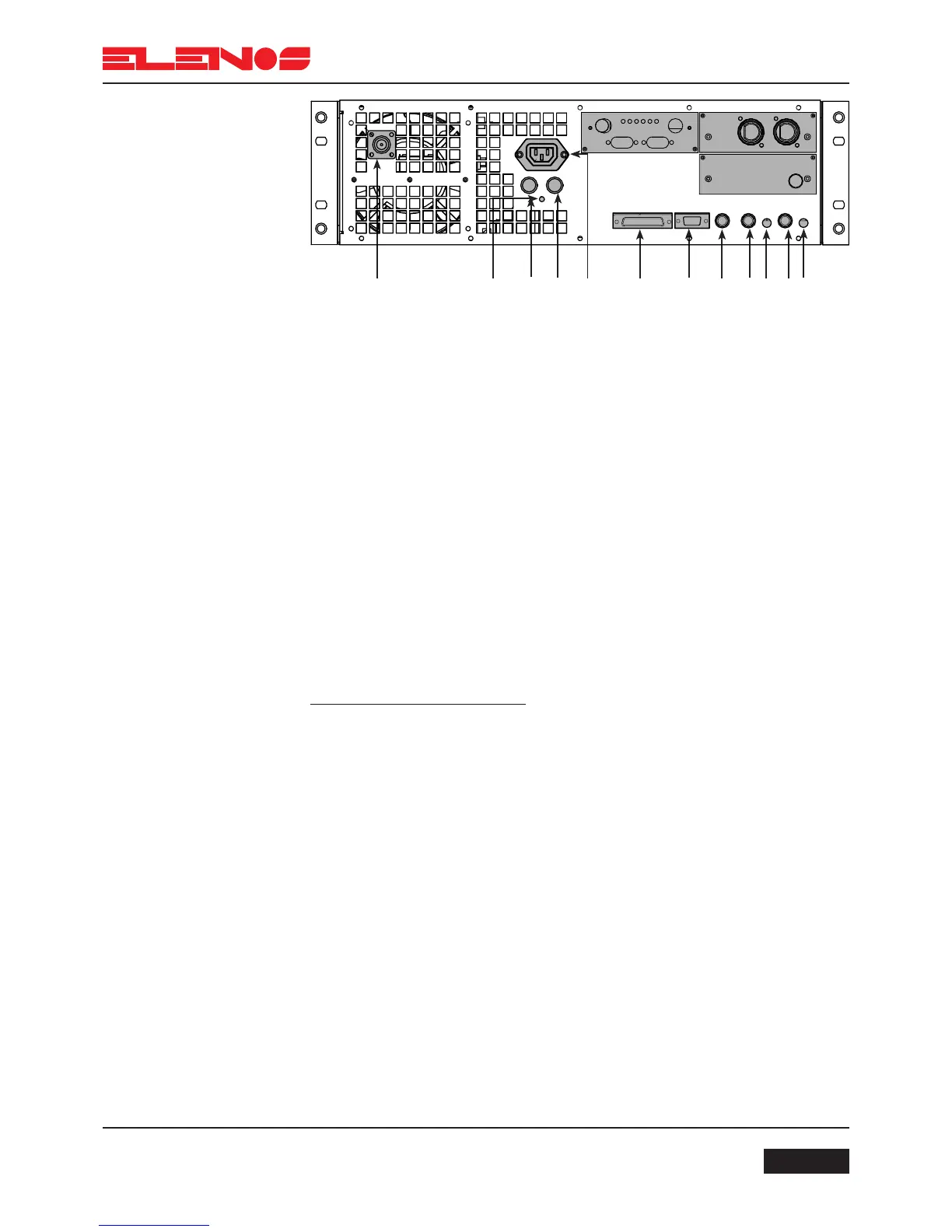

Rear view
1.2.1.
Rear Panel description
1) “RF OUT” connector
2) Earthing terminal
3-4) Power supply fuse (10A)
5) Line supply socket
6) Analog signal interface
7) Telemetry interface
8) “MPX” input connector
9) “SCA2” input connector
10) Trimmer for calibrating the “SCA2” input
11) “SCA1” input connector
12) Trimmer for calibrating the “SCA1” input
13) Slot for inserting the stereo encoder board
14) Slot for inserting the RDS board
15) Slot for inserting the stereo inputs board
N.B.
Do not obstruct the ventilation grills
