ELGi TS05 - Control Panel

8
TS Series

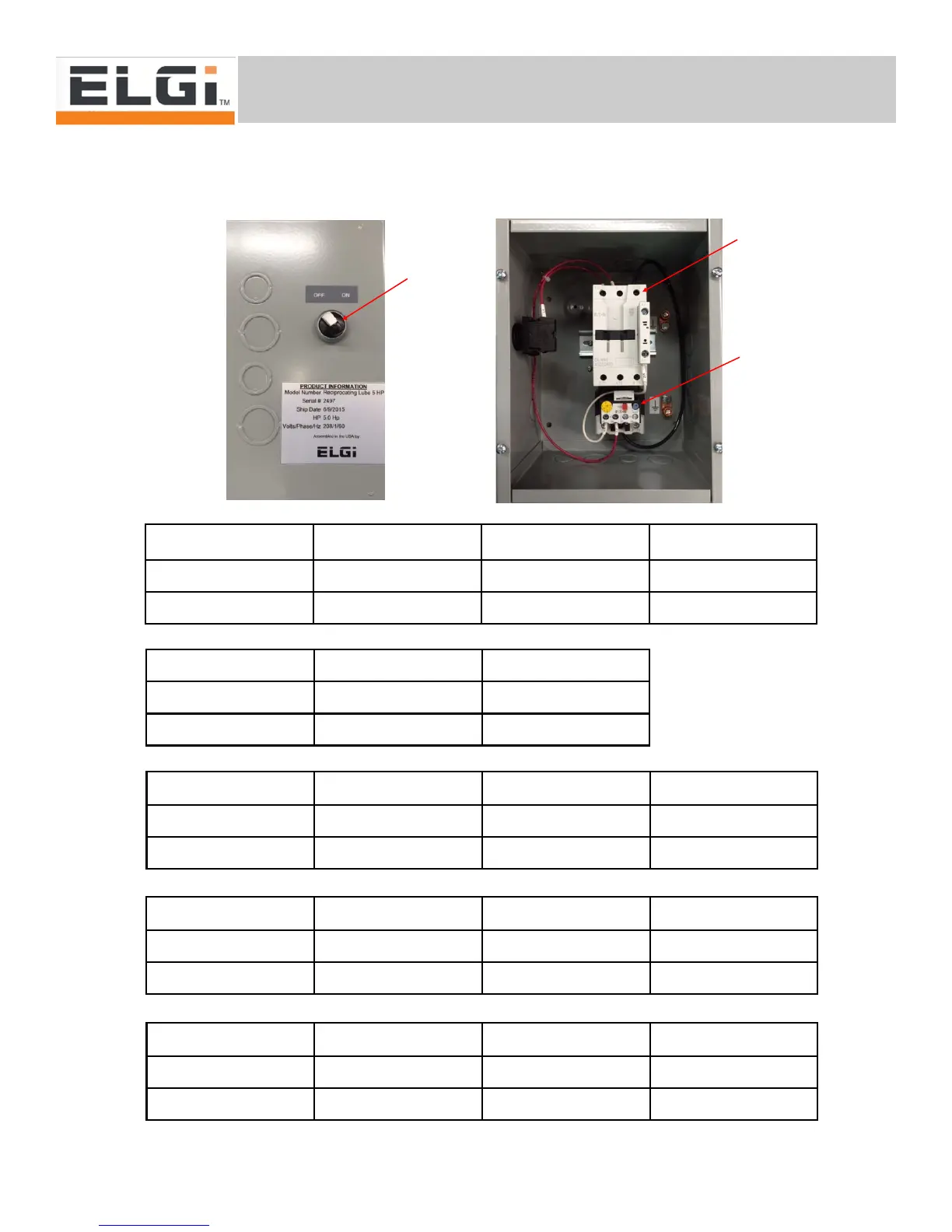

3.0 Control Panel
5 HP 208/3/60 230/3/60 460/3/60
Starter 30-03-408 30-03-417 30-03-036
Overload Relay 30-03-207 30-03-206 30-03-204
5 HP 208/1/60 230/1/60
Starter 30-03-410 30-03-420
Overload Relay 30-03-008 30-03-208
Off-On
Switch
54-17-009
Motor
Starter
(see chart)
Motor
Overload
(see chart)
10 HP 208/3/60 230/3/60 460/3/60
Starter 30-03-410 30-03-420 30-03-038
Overload Relay 30-03-208 30-03-208 30-03-206
7.5 HP 208/3/60 230/3/60 460/3/60
Starter 30-03-409 30-03-419 30-03-037
Overload Relay 30-03-208 30-03-207 30-03-205
15 HP 208/3/60 230/3/60 460/3/60
Starter 30-03-412 30-03-422 30-03-040
Overload Relay 30-03-210 30-03-209 30-03-207
