8
*The touches on this display are multifunctional to program / scroll the advanced features and to
setup the integrated EL-Skyport Transceiver. For programming please read carefully the following
pages!

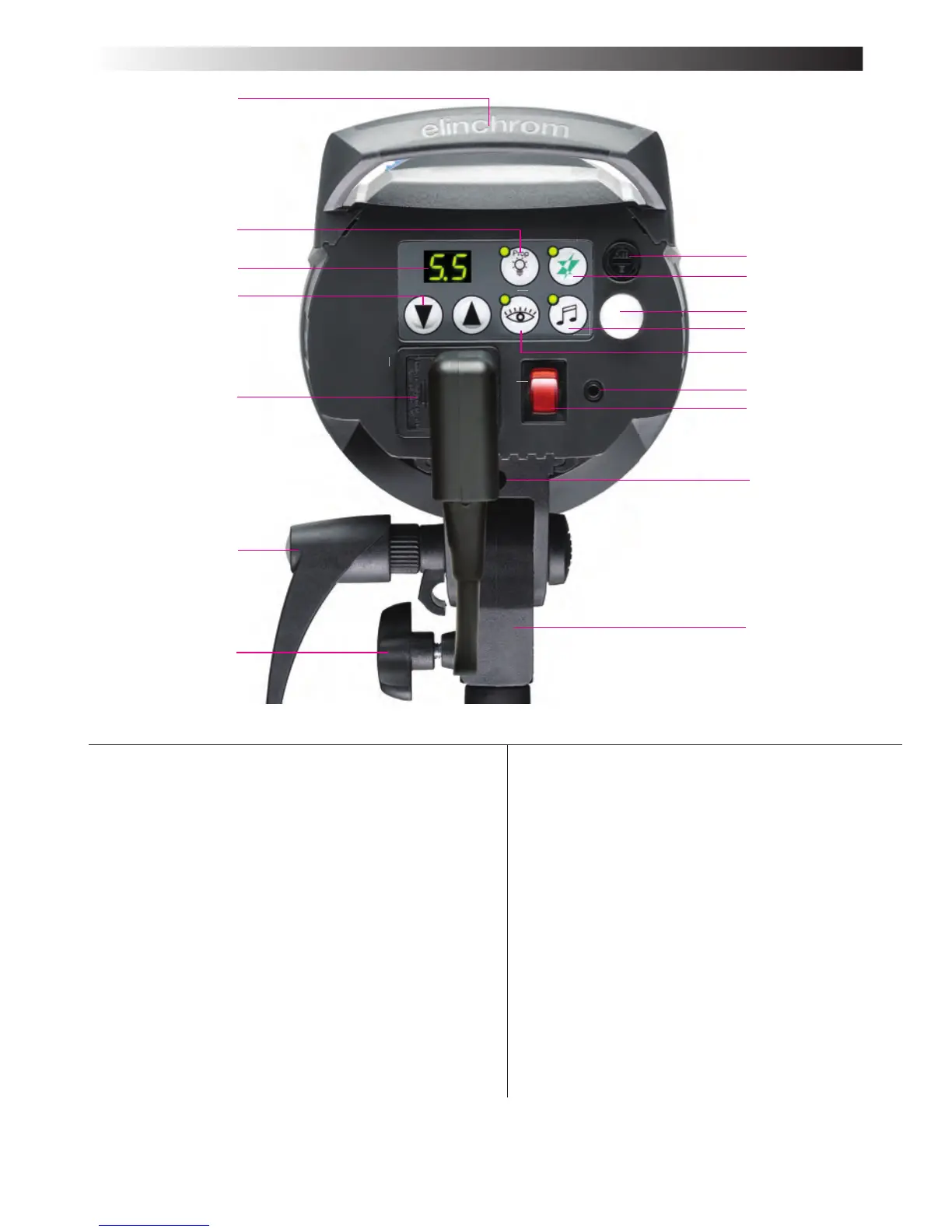

Overview of controls
1. Mains inlet socket includes the mains fuse
(slow blow)
2. Mains on/off switch
3. Modelling lamp fuse
4. Open fl ash / Test button
5. Synch socket / 3.5 mm jack / low 5V sync
voltage
6. Digital multi display and charge / discharge
indicator*
7. Charge Ready Beep on/off
8. Eye-Cell on/off – programmable*
9. Eye-Cell receptor
10. Power up & down buttons and scroll /pro
gram buttons for advanced features setup*
11. Modelling lamp mode button (prop/min/
max/off/)
12. Tilt head with extra umbrella fi tting
13. Handle with support for spare fuse
14. Standard stand socket 5/8 inch
15. Centred umbrella tube for EL Umbrellas –
7 mm diameter
16. Knurled clamp screw
Control panel
English
1
12
9
2
15
14
16
4
8
7
5
3
6
11
13
10
