4.2 Hardware and Parts List
A. Frame Parts x 6 pcs (4 top/bottom frame pcs + 2 side frame pcs)
B. Screen Material x 1 pc
C. Center joints x 2 pcs
D. Elbow Joints x4pcs
E. Wall brackets x4pcs (depending on model/size)
F. Wood Screws x 8pcs
G. Drywall anchors x 8pcs
H. M5x15 screws x 16 pcs
I. Center Support Bar x 1 - 2 pcs (depending on model/size)
J. Support joiner x 2 - 4 pcs (depending on model/size)
K. Fix Plates x 60 - 180 pcs (depending on model/size)
L. Rubber hammer x 1 pc
M. Screw driver x 1 pc
Note: Please make sure all parts are included in your package before proceeding to assemble your fixed
frame projection screen.
4.3 FRAME ASSEMBLY

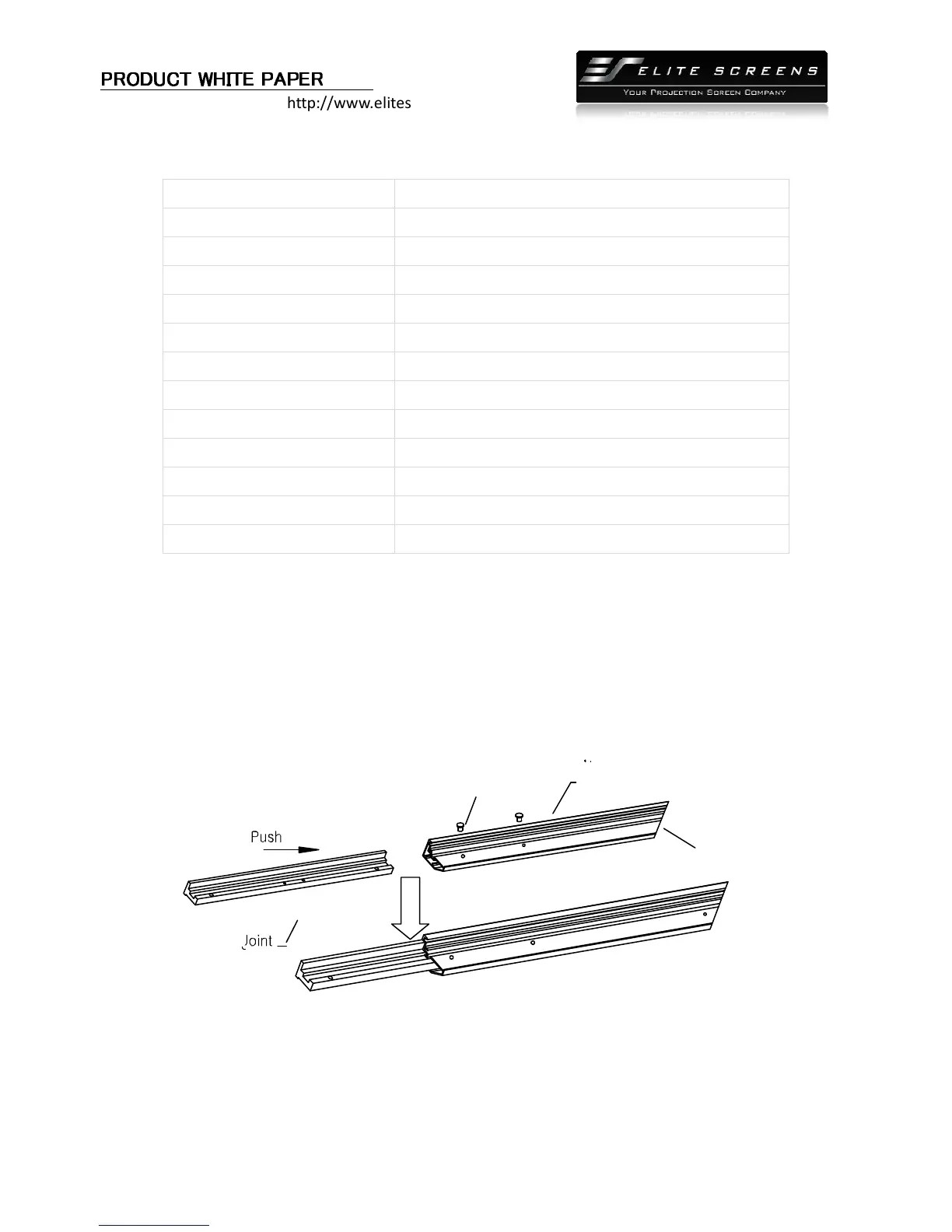

1. Insert the center joint connector into to one of the 1/2 horizontal frames and fasten it with two
M5x15 screws.
2. Insert the other ½ horizontal frame piece to the center joint (c) connector and fasten it with
twoM5x15 screws (h).Repeat steps 1 and 2 for assembling the second horizontal frame.
bevel
½ Long Frame
M5×15 Screw
