Elite CSW-200 - C O M P a C T I N S T a L L at I O N

C O M PA CT I N STA L L AT I O N
33"
9"
GATE
COMPACT INSTALLATION ONLY:
DO NOT USE THESE MEASUREMENTS FOR A STANDARD INSTALLATION.
T H I S I S O NLY F O R A C O M PA C T I NSTA L L AT I O N
CSW-200
Y
Z
CUT
CUT
CUT
10"
22"
4"
36"
4"
GATE HINGE
POST

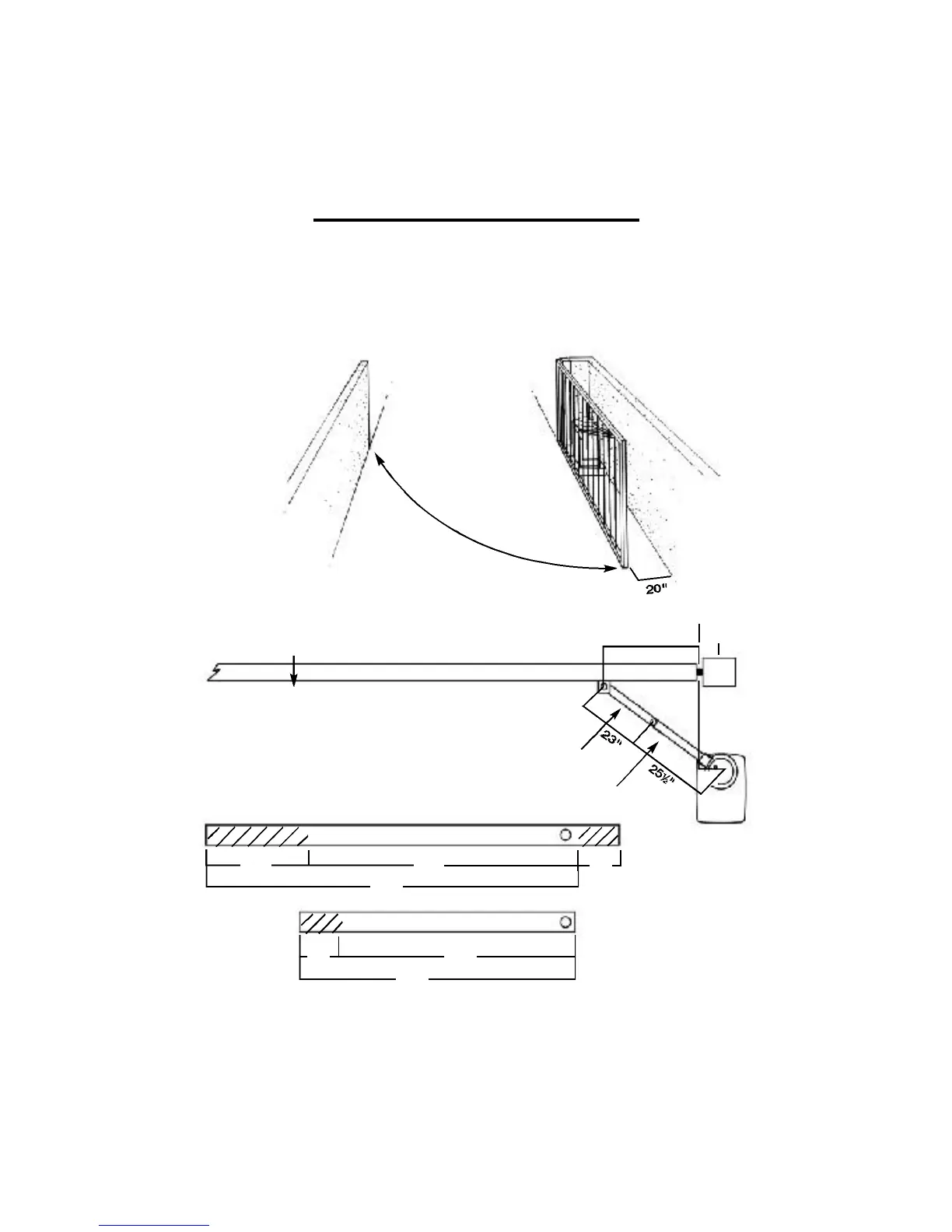

Follow the exact measurements,
then cut the standard arm to
meet the shorter measurements.
(See drawings.)
26
1
⁄ 2 "
Y
Z
20"
24"
