Operations manual
In case of power failure, use the key to unlock the lock and push down the release bar about 90 degrees to open and close
the door manually, use the release key as follows:
• Insert the supplied key into the lock.
• Turn the key and push down on the release bar about 90 degrees to release the gear. (Note: Do not exceed 90 degrees,
do not use too much force, otherwise the release bar may be damaged.)
• Open and close the door manually.
Note: If the door hits the mounting post and cannot be opened electrically, move the door a couple of inches by hand, so
you can release the door with the key, open and close the door manually.

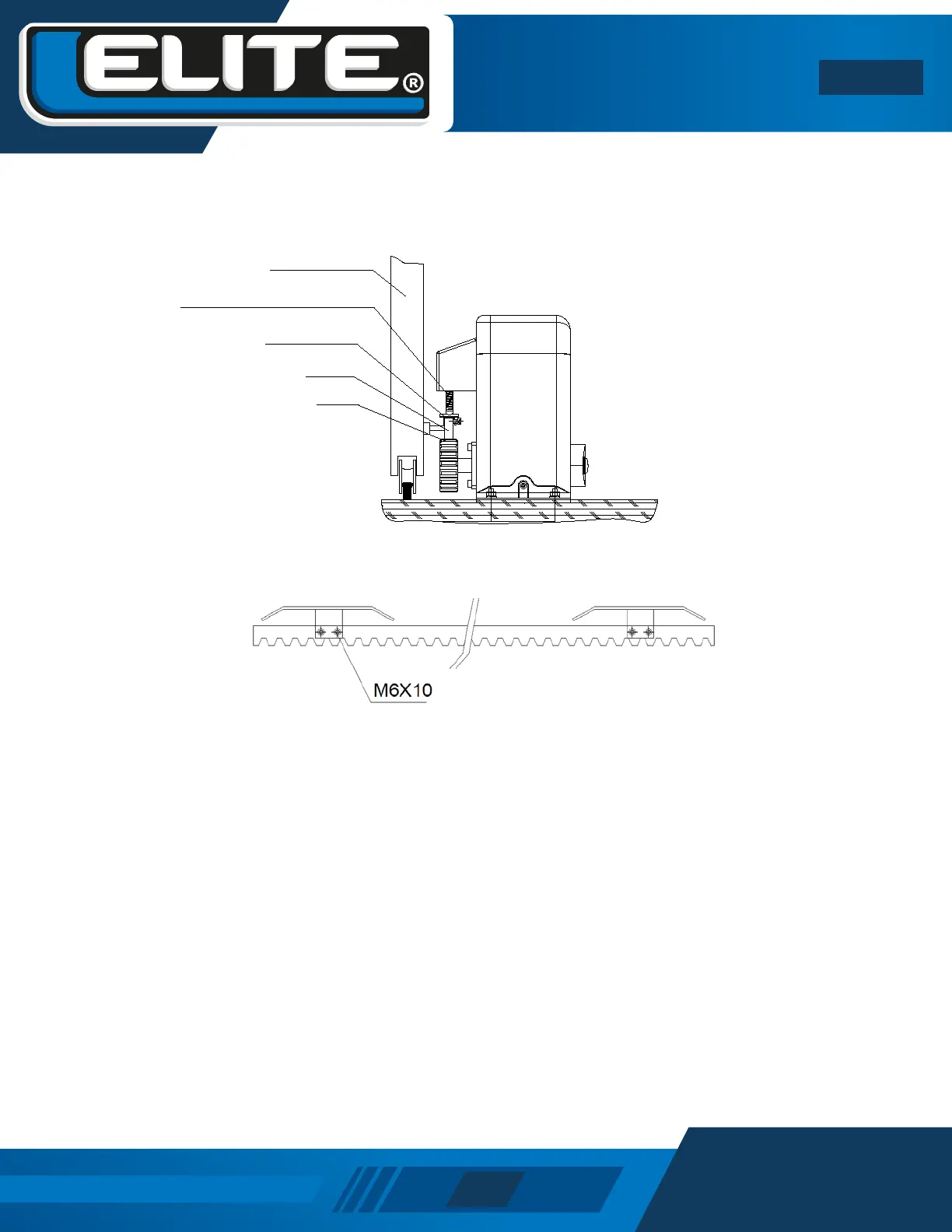

Mecanic limit switch Fig. 6
limit switch
Gear
Sliding gate
Rack
limit block
Spring of limit switch
Figura 6
