GB
ENGLISH
21

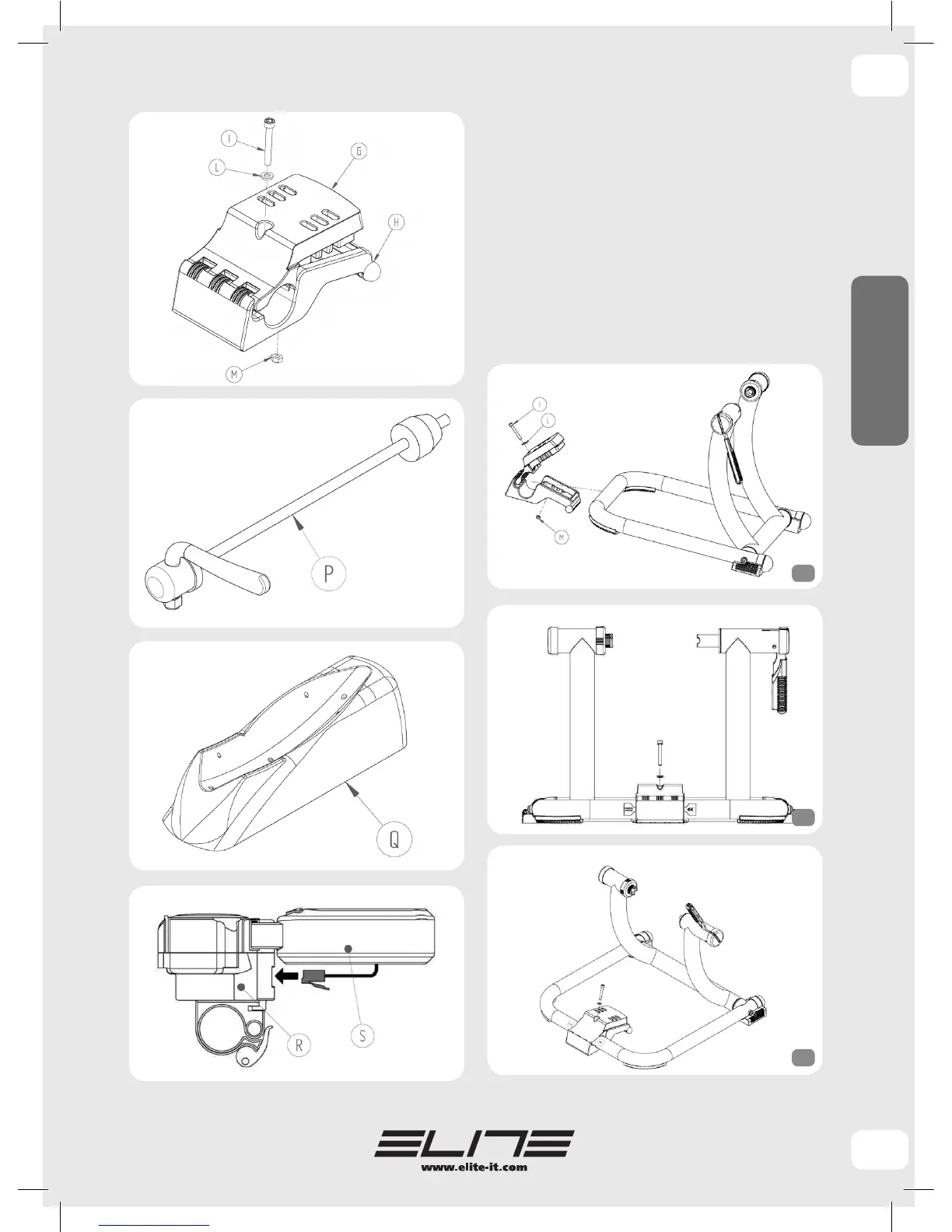

STAND ASSEMBLY
• Open the stand and position it on a sur-
face.
• Fit the unit support lower base (H) hinged
with the unit support upper base (G) on the
metal tube of the stand (fig.1). Position the
base inside the limits indicated by the sti-
cker reference (fig.2) and secure everything
with screw (I) + washer (L) + nut (M) (fig.3).
1
2
3
