23
ENGLISH
GB

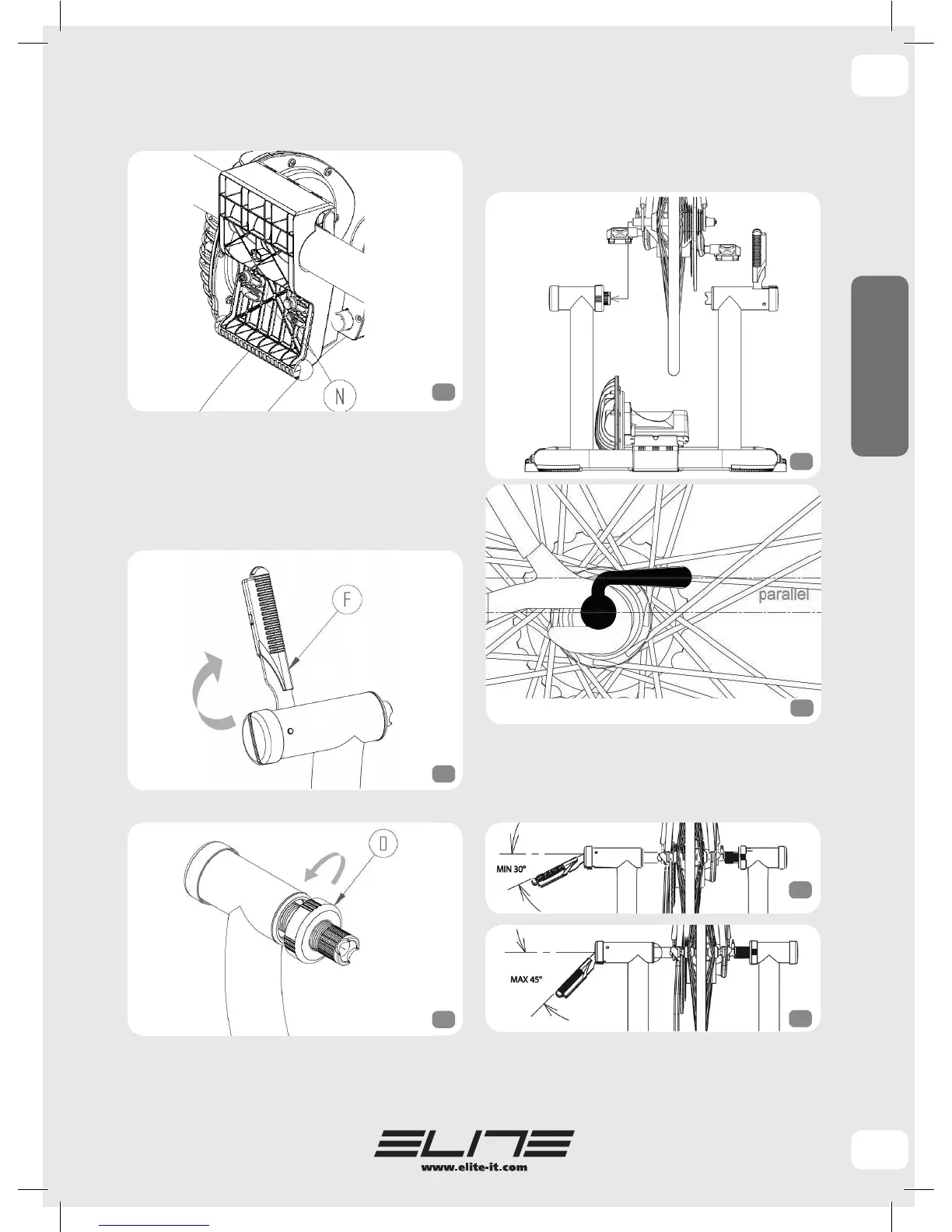

• Tighten down the screws (N) (fig.9).
FITTING THE BICYCLE
• Make sure the quick release of the bicycle rear
wheel is properly fixed.
• Turn the lever (F) to the “open” position
(fig.10).
• Release the ring (D) by unscrewing it (fig.11).
• Put the bicycle in position, inserting the left end
of the rear quick release in the left bushing (C)
(fig.12). For safer clamping of the bicycle on the
stand, make sure the lever of the quick release is
horizontal (fig.13).
• Close the lever (F), making sure it starts pres-
sing the quick release inside the predefined work
area; between 30° and 45° (fig. 14 and fig.15).
9
10
13
12
11
14
15
