STEP 2B Wall Plate Installation (Wood Stud)
2B-1
Locate your studs. Verify and
mark the center of the studs by
finding the stud edges using an
awl, a thin nail, or an
edge-to-edge stud finder.
- 6 -
2A-3
01
A
B
01

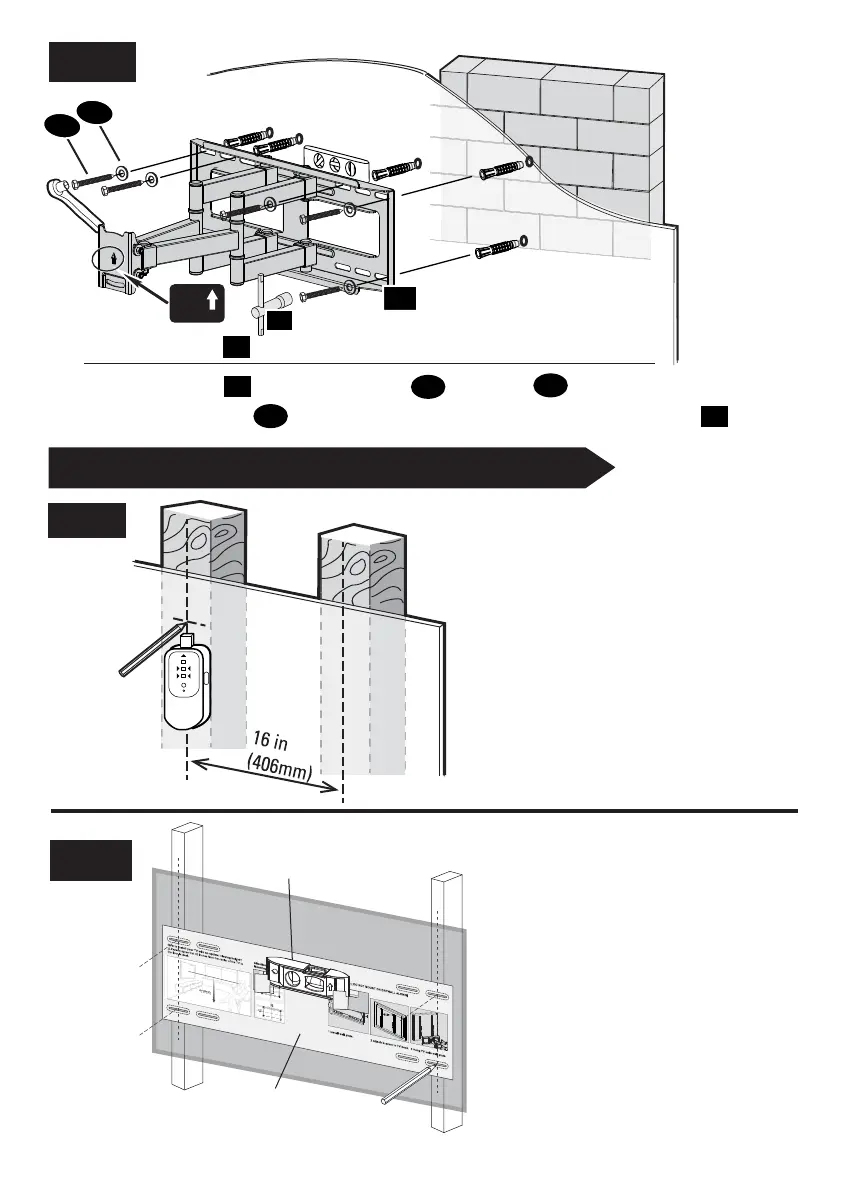

Install wall plate by using lag bolts , washers and anchors.
Tighten the lag bolts until they are pulled firmly against the wall plate .
A
A
B
01
2B-2
Position the mounting template
at your desired height and line
up the holes with your stud
center line. Level the mounting
template and mark the pilot hole
locations.
V2
Mounting template
Bubble Level
Use the wrench if you don't have socket wrench in hand.
05
05
UP
