TERMINALS
1 - 2 N.C. compressor relay (A)
1 - 3 N.O. compressor relay (A)
4 - 5 N.O. alarm relay (B)
6 - 7 Power supply • 12 Va/c model, 1,5 VA max.
• 230 Va model, 3 VA max.
8 - 9 Probe 1 input (thermostat)
8 - 10 Digital input
A TTL input for Copy Card and connection to
Televis system
NOTE: Default user settings

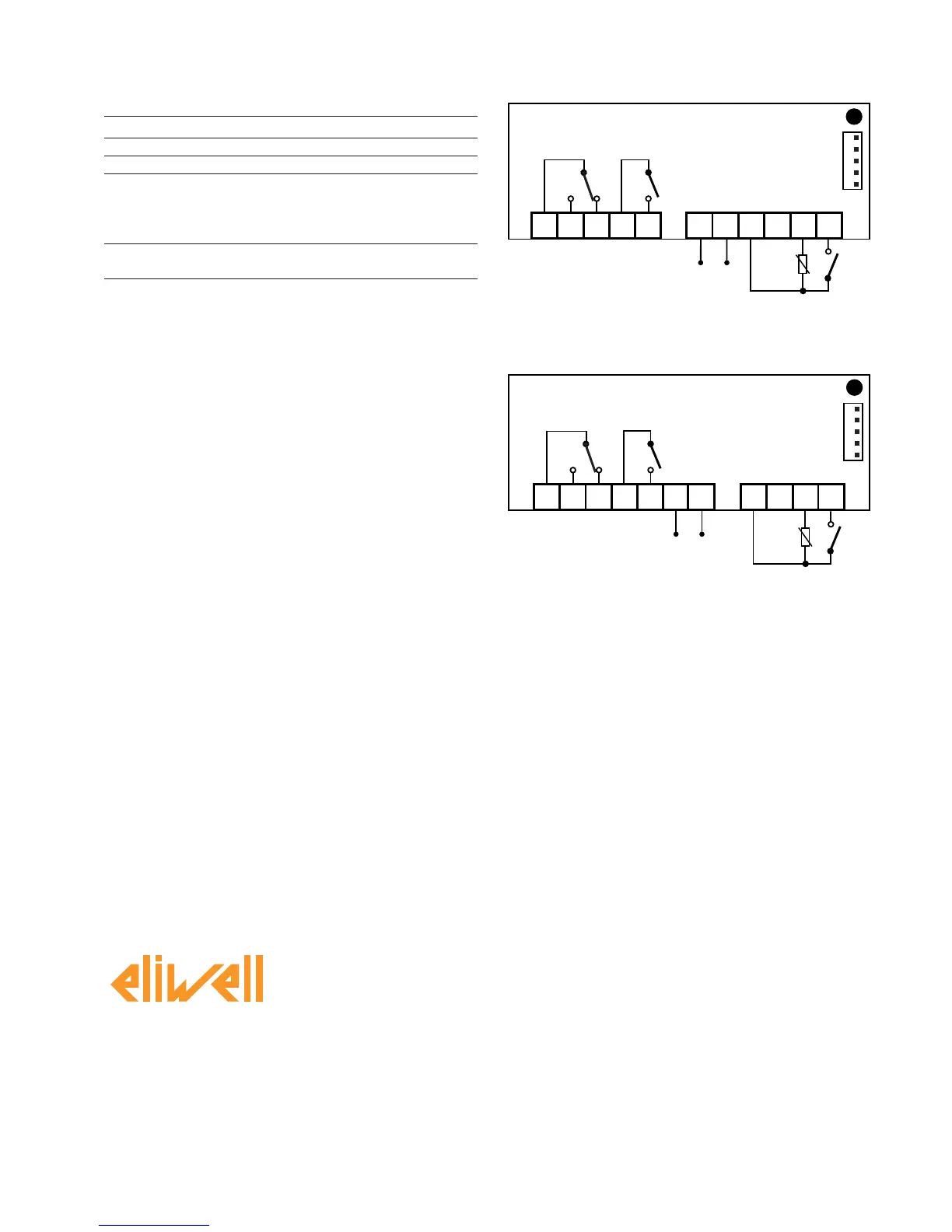

Wiring diagram
1 2 3 4 5
6 7 8 9
10 11
ID 961 LX/A - 12 V
A
(A) (B)
1 2 3 4 5 6 7
8 9
10 11
ID 961 LX/A - 230 V
A
(A)
(B)
