ID 985/S/E/CK - ID985/E LX 12/14
DISCLAIMER
This document is the exclusive property of Eliwell
Controls S.r.L. and cannot be reproduced and circulat-
ed unless expressly authorized by Eliwell Controls S.r.L..
Although Eliwell Controls S.r.L. has taken all possible
measures to guarantee the accuracy of this document,
it declines any responsibility for any damage arising out
of its use.
The same applies to any person or company involved
in preparing and writing this manual. Eliwell Controls
S.r.L. reserves the right to make any changes or
improvements without prior notice and at any time.
RESPONSIBILITY AND
RESIDUAL RISKS
Eliwell Controls S.r.L. shall not be liable for any dam-
ages deriving from:
• installation/use other than that prescribed and, in
particular, which does not comply with the safety stan-
dards specified in the regulations and/or those given
herein;
• use on boards which do not guarantee adequate
protection against electric shock, water or dust when
assembled;
• use on boards which allow dangerous parts to be
accessed without the use of tools;
• tampering with and/or alteration of the product;
• installation/use on boards that do not comply with
the standards and regulations in force.
NOTE: The technical characteristics in this document concerning measurements (range, accuracy, resolution, etc.) refer to
the instrument in the strictest sense and not to any accessories provided such as probes, for example. This means, for exam-
ple, that an error introduced by the probe is added to any error that is characteristic of the instrument.

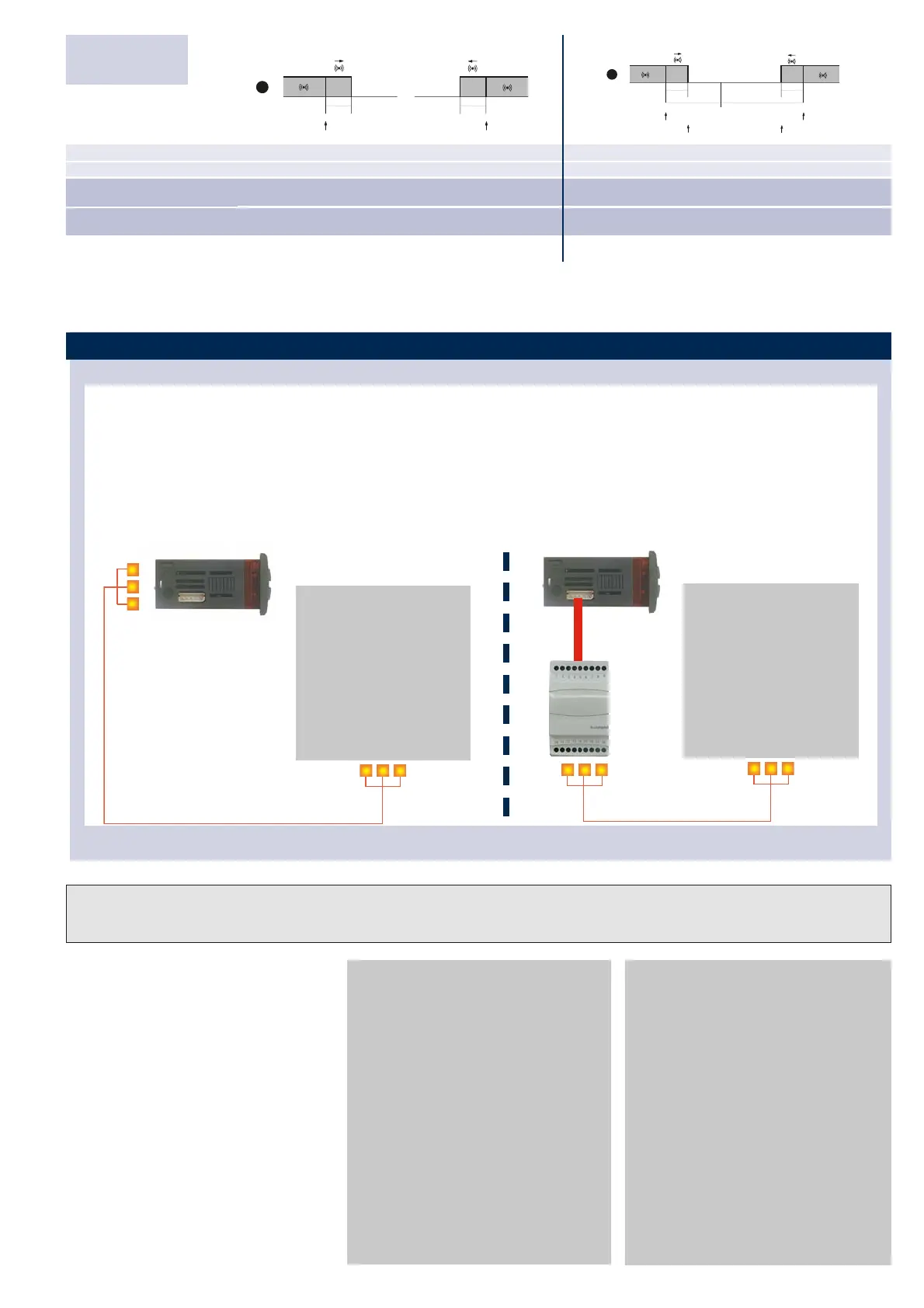

BusAdapter130/150
TTL - RS-485 serial interface on DIN rail
for connecting the device and an RS-485 network designed for connection to
Televis or ModBUS supervision system.
PCInterface1110/1120
RS-232/RS-485 serial interface for connecting a PC and a series of instruments in an RS-485 network.
The device needs the BlueCard activation module supplied with the Eliwell software package licence to be plugged in.
ID 985/S/E/CK TelevisSystem ID 985/E LX
Minimum temperature alarm
Maximum temperature alarm
Temperature lower than or equal to LAL (LAL with sign)
Temperature lower than or equal to Set point + LAL*
Temperature greater than or equal to Setpoint + HAL**
Temperature greater than or equal to HAL (HAL with sign)
Maximum temperature alarm
release
Minimum temperature alarm
release
Temperature higher than or equal to LAL + AFd Temperature greater than or equal to Setpoint + LAL + AFd
Temperature lower than or equal to Setpoint + HAL - AFd
Temperature lower than or equal to HAL - AFd
Temperature expressed as an absolute value (par “Att”=0) Abs(olute) Temperature in relation to set point (par “Att”=1) rEL(ative)
if Att=reL(ative) LAL must be negative: therefore [Setpoint + LAL]
is equal to [Setpoint - LAL]
MAX-MIN
ALARMS
*if LAL is negative it will be subtracted from the Setpoint
**if HAL is negative it will be subtracted from the Setpoint
